3. Operation
oÉÅäçÅâáåÖ=jÉåì
From the Main Menu, select Reclocking to display the Reclocking Control Menu, as
illustrated below.

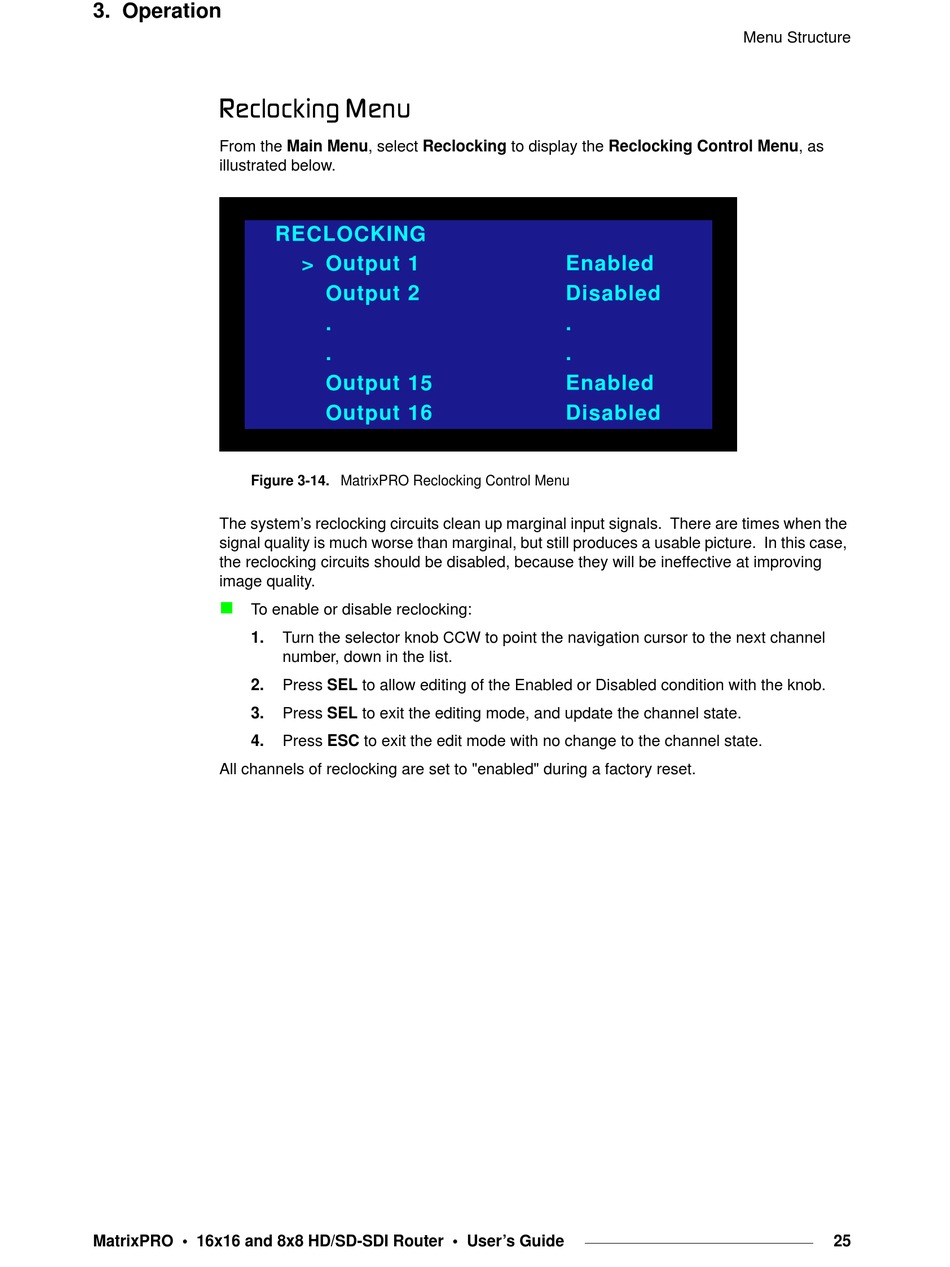

Figure 3-14. MatrixPRO Reclocking Control Menu
The system's reclocking circuits clean up marginal input signals. There are times when the
signal quality is much worse than marginal, but still produces a usable picture. In this case,
the reclocking circuits should be disabled, because they will be ineffective at improving
image quality.
To enable or disable reclocking:
1.
2.
3.
4.
All channels of reclocking are set to "enabled" during a factory reset.
MatrixPRO • 16x16 and 8x8 HD/SD-SDI Router • User's Guide
RECLOCKING
> Output 1
Output 2
.
.
Output 15
Output 16
Turn the selector knob CCW to point the navigation cursor to the next channel
number, down in the list.
Press SEL to allow editing of the Enabled or Disabled condition with the knob.
Press SEL to exit the editing mode, and update the channel state.
Press ESC to exit the edit mode with no change to the channel state.
Menu Structure
Enabled
Disabled
.
.
Enabled
Disabled
25
