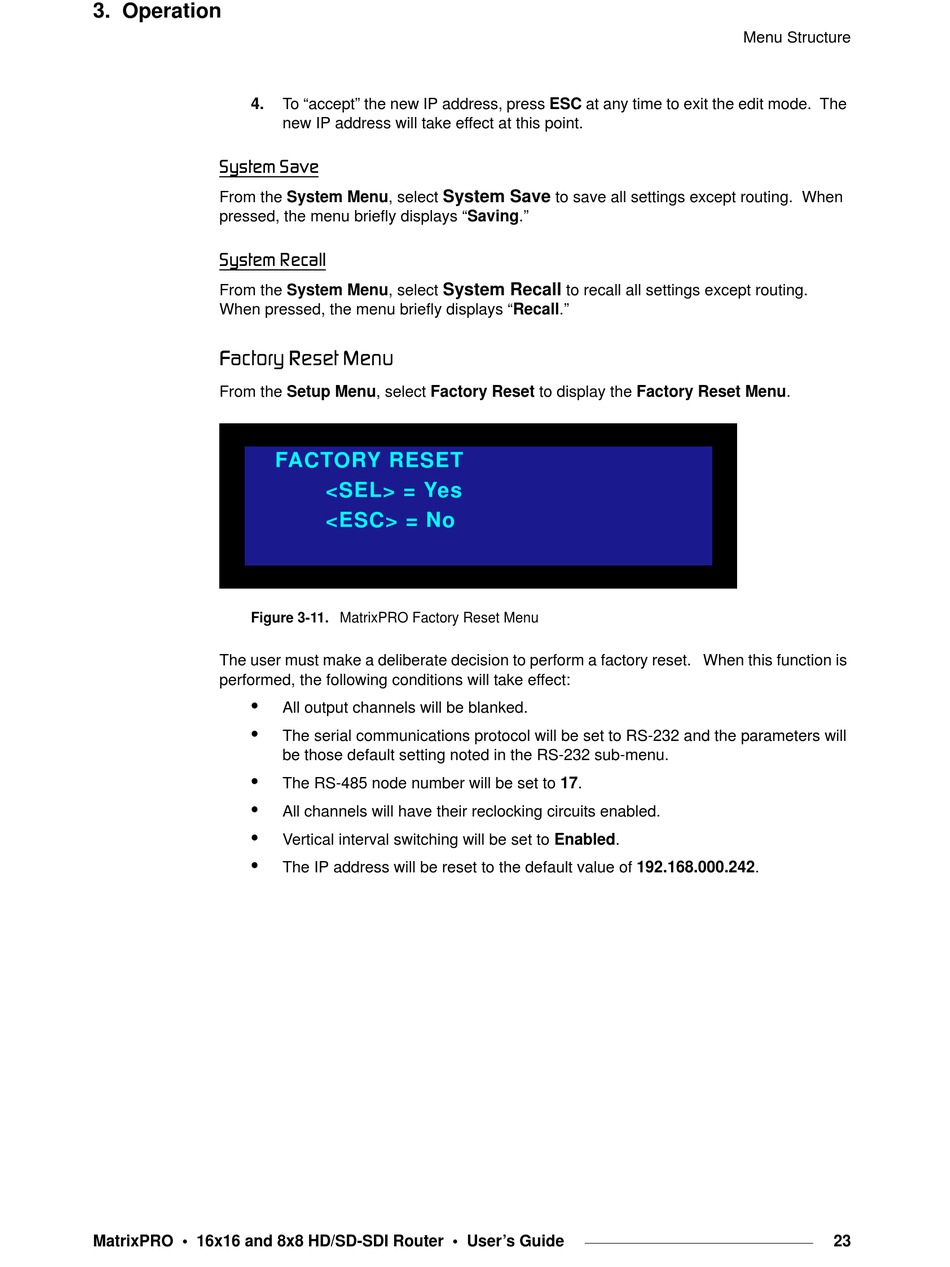

Barco MatrixPRO User Manual page 33

3. Operation
4.
póëíÉã=p~îÉ
From the System Menu, select
pressed, the menu briefly displays "Saving."
póëíÉã=oÉÅ~ää
From the System Menu, select
When pressed, the menu briefly displays "Recall."
c~Åíçêó=oÉëÉí=jÉåì
From the Setup Menu, select Factory Reset to display the Factory Reset Menu.
Figure 3-11. MatrixPRO Factory Reset Menu
The user must make a deliberate decision to perform a factory reset. When this function is
performed, the following conditions will take effect:
•
•
•
•
•
•
MatrixPRO • 16x16 and 8x8 HD/SD-SDI Router • User's Guide
To "accept" the new IP address, press ESC at any time to exit the edit mode. The
new IP address will take effect at this point.
System Save
System Recall
FACTORY RESET
<SEL> = Yes
<ESC> = No
All output channels will be blanked.
The serial communications protocol will be set to RS-232 and the parameters will
be those default setting noted in the RS-232 sub-menu.
The RS-485 node number will be set to 17.
All channels will have their reclocking circuits enabled.
Vertical interval switching will be set to Enabled.
The IP address will be reset to the default value of 192.168.000.242.
to save all settings except routing. When
to recall all settings except routing.
Menu Structure
