3. Operation
Menu Structure
pÉíìé=jÉåì
From the Main Menu, select Setup to display the Setup Menu.

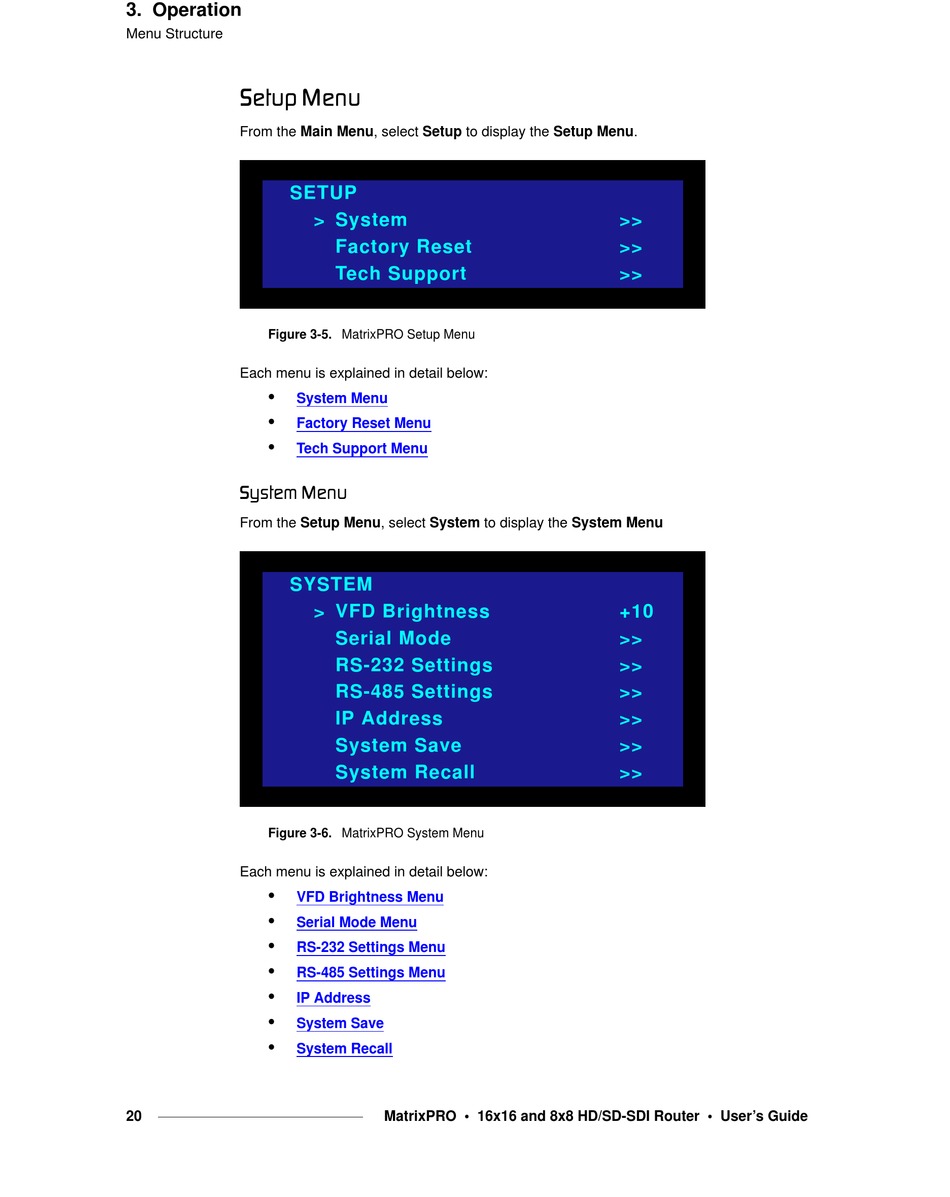

Figure 3-5. MatrixPRO Setup Menu
Each menu is explained in detail below:
•
•
•
póëíÉã=jÉåì
From the Setup Menu, select System to display the System Menu
Figure 3-6. MatrixPRO System Menu
Each menu is explained in detail below:
•
•
•
•
•
•
•
20
SETUP
> System
Factory Reset
Tech Support
System Menu
Factory Reset Menu
Tech Support Menu
SYSTEM
> VFD Brightness
Serial Mode
RS-232 Settings
RS-485 Settings
IP Address
System Save
System Recall
VFD Brightness Menu
Serial Mode Menu
RS-232 Settings Menu
RS-485 Settings Menu
IP Address
System Save
System Recall
MatrixPRO • 16x16 and 8x8 HD/SD-SDI Router • User's Guide
>>
>>
>>
+10
>>
>>
>>
>>
>>
>>
