4. GUI Installation and Operation
GUI Operation
dêçìéáåÖ=q~Ä
Click the Grouping Tab on the MatrixPRO Control application. A sample tab is shown
below:

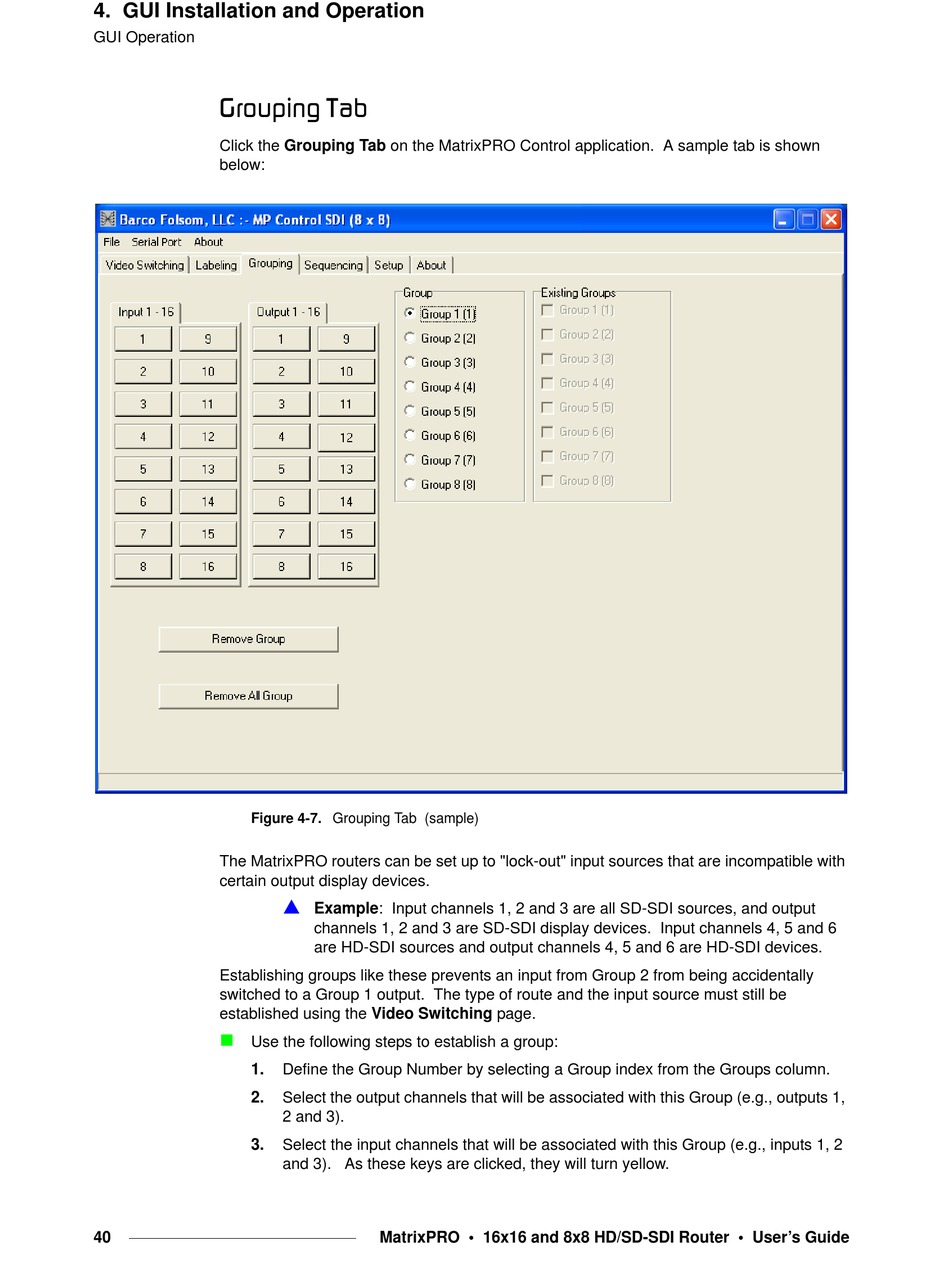

Figure 4-7. Grouping Tab (sample)
The MatrixPRO routers can be set up to "lock-out" input sources that are incompatible with
certain output display devices.
Establishing groups like these prevents an input from Group 2 from being accidentally
switched to a Group 1 output. The type of route and the input source must still be
established using the Video Switching page.
Use the following steps to establish a group:
1.
2.
3.
40
Example: Input channels 1, 2 and 3 are all SD-SDI sources, and output
channels 1, 2 and 3 are SD-SDI display devices. Input channels 4, 5 and 6
are HD-SDI sources and output channels 4, 5 and 6 are HD-SDI devices.
Define the Group Number by selecting a Group index from the Groups column.
Select the output channels that will be associated with this Group (e.g., outputs 1,
2 and 3).
Select the input channels that will be associated with this Group (e.g., inputs 1, 2
and 3). As these keys are clicked, they will turn yellow.
