eaLpaf=péÉÅáÑáÅ~íáçåë=

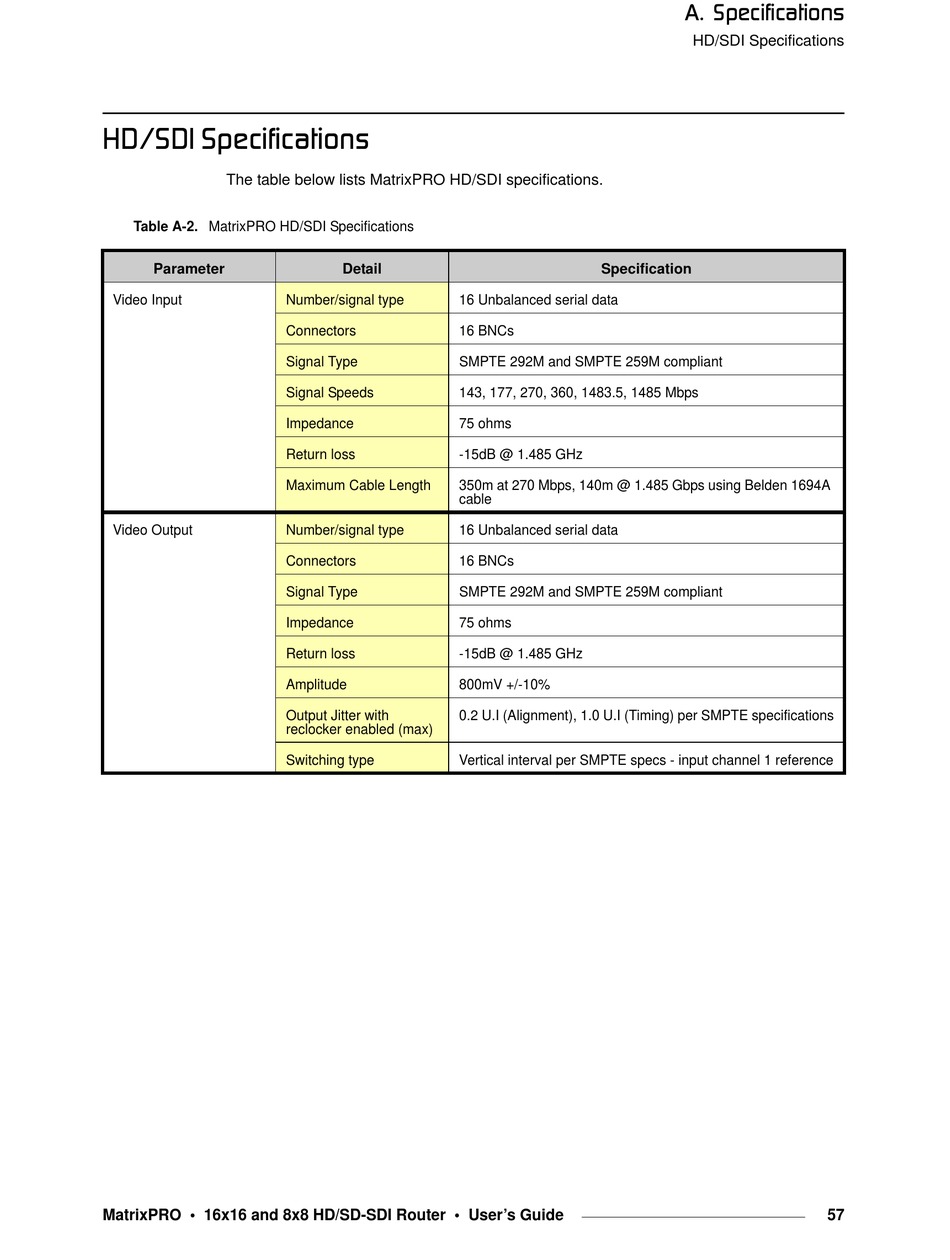

The table below lists MatrixPRO HD/SDI specifications.
Table A-2. MatrixPRO HD/SDI Specifications
Parameter
Video Input
Video Output
MatrixPRO • 16x16 and 8x8 HD/SD-SDI Router • User's Guide
Detail
Number/signal type
16 Unbalanced serial data
Connectors
16 BNCs
Signal Type
SMPTE 292M and SMPTE 259M compliant
Signal Speeds
143, 177, 270, 360, 1483.5, 1485 Mbps
Impedance
75 ohms
Return loss
-15dB @ 1.485 GHz
Maximum Cable Length
350m at 270 Mbps, 140m @ 1.485 Gbps using Belden 1694A
cable
Number/signal type
16 Unbalanced serial data
Connectors
16 BNCs
Signal Type
SMPTE 292M and SMPTE 259M compliant
Impedance
75 ohms
Return loss
-15dB @ 1.485 GHz
Amplitude
800mV +/-10%
Output Jitter with
0.2 U.I (Alignment), 1.0 U.I (Timing) per SMPTE specifications
reclocker enabled (max)
Switching type
Vertical interval per SMPTE specs - input channel 1 reference
^K==péÉÅáÑáÅ~íáçåë
HD/SDI Specifications
Specification
57
