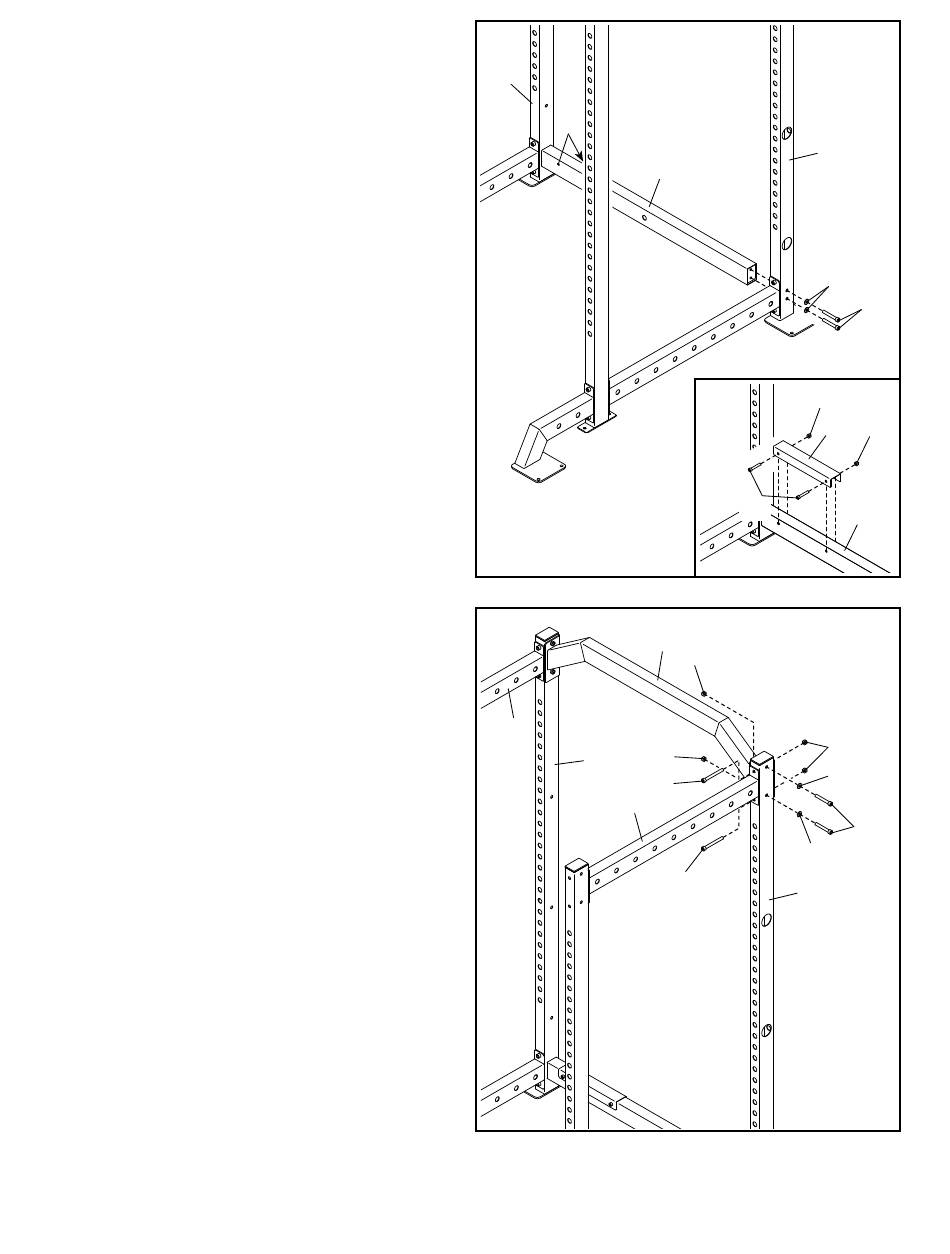

4. Orient the Rear Lower Crossbar (15) so that the
small holes (B) are in the position shown.
Attach the Rear Lower Crossbar (15) to the left
Rear Upright (10) with two M10 x 70mm Screws
(24) and two M10 Washers (23); do not tighten
the Screws yet.
Attach the Rear Lower Crossbar (15) to the
right Rear Upright (10) in the same way.
See the inset drawing. Attach the Crossbar
Cover (8) to the Rear Lower Crossbar (15)
with two M8 x 65mm Bolts (28) and two M8
Locknuts (29).
5. Hold the Rear Upper Crossbar (9) between the
Rear Uprights (10).
Attach the Rear Upper Crossbar (9) to the
left Rear Upright (10) with two M10 x 70mm
Bolts (24), two M10 Washers (23), and two
M10 Locknuts (27); do not tighten the
Locknuts yet.
Then, attach the Rear Upper Crossbar (9)
to the left upper Side Crossbar (11) with two
M10 x 95mm Bolts (25) and two M10 Locknuts
(27); do not tighten the Locknuts yet.
Attach the Rear Upper Crossbar (9) to the
right Rear Upright (10) and to the right upper
Side Crossbar (11) in the same way.
