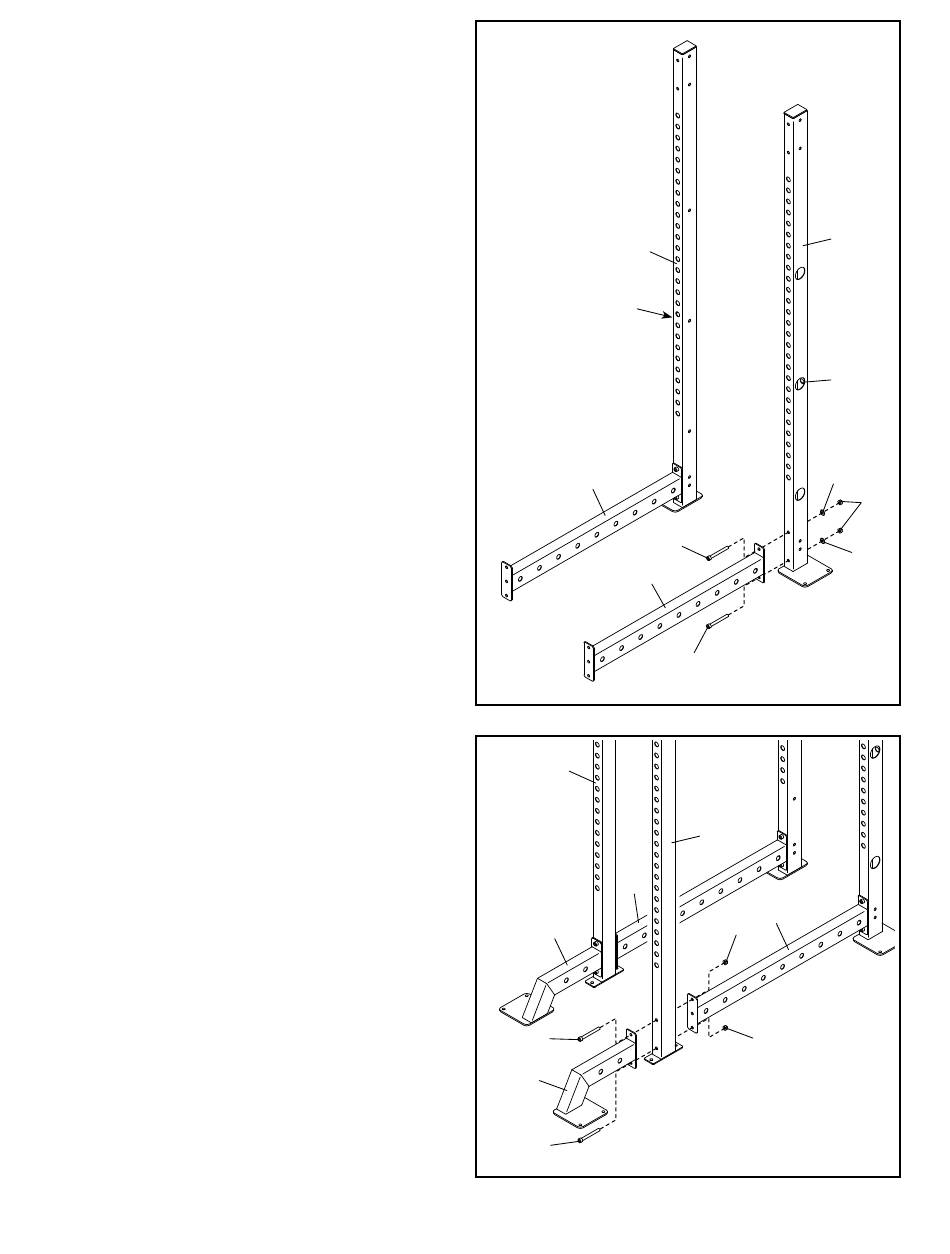

2. Identify a Rear Upright (10), and orient it so that
the large holes (A) are on the side shown.
Attach a Side Crossbar (11) to the Rear Upright
(10) with two M10 x 95mm Bolts (25), two M10
Washers (23), and two M10 Locknuts (27); do
not tighten the Locknuts yet.
Attach a Side Crossbar (11) to the other Rear
Upright (10) in the same way. Make sure that
the large holes (A) are on the indicated side.
3. Identify the Left Stabilizer (33) and a Front
Upright (12).
Attach the Left Stabilizer (33) and the Front
Upright (12) to the indicated Side Crossbar
(11) with two M10 x 95mm Bolts (25) and
two M10 Locknuts (27); do not tighten the
Locknuts yet.
Attach the Right Stabilizer (34) and the other
Front Upright (12) to the other Side Crossbar
(11) in the same way.
