Pro-Form PFBE45020.0 User Manual page 10

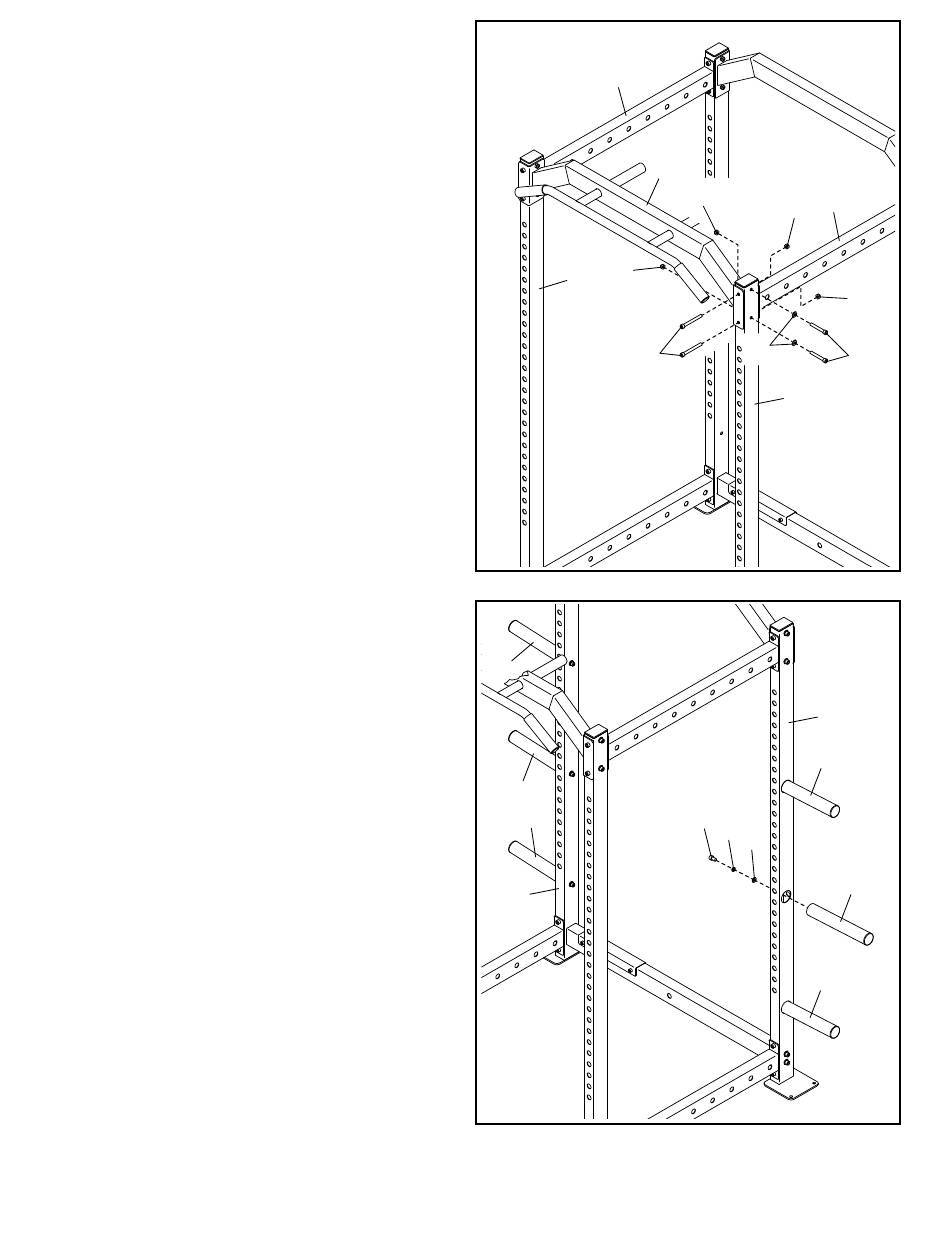

6. Hold the Front Crossbar (13) between the Front
Uprights (12).
Attach the Front Crossbar (13) to the left Front
Upright (12) with two M10 x 70mm Bolts (24),
two M10 Washers (23), and two M10 Locknuts
(27); do not tighten the Locknuts yet.
Then, attach the Front Crossbar (13) to the left
upper Side Crossbar (11) with two M10 x 95mm
Bolts (25) and two M10 Locknuts (27); do not
tighten the Locknuts yet.
Attach the Front Crossbar (13) to the right
Front Upright (12) and to the right upper Side
Crossbar (11) in the same way.
See steps 2–6. Fully tighten the M10 Locknuts
(27) and the M10 x 70mm Screws (24).
7. Attach a Weight Tube (14) to the left Rear
Upright (10) with an M10 x 25mm Screw
(26), an M10 Split Washer (22), and an M10
Washer (23).
Attach two more Weight Tubes (14) to the left
Rear Upright (10) in the same way.
Attach the other three Weight Tubes (14) to
the right Rear Upright (10) in the same way.
