Install the Access Point on a USA Model Junction Box
Using the Stainless-Steel Bracket
3. Using the aligned holes, attach the bracket to the junction box using the screws removed from the
junction box earlier.

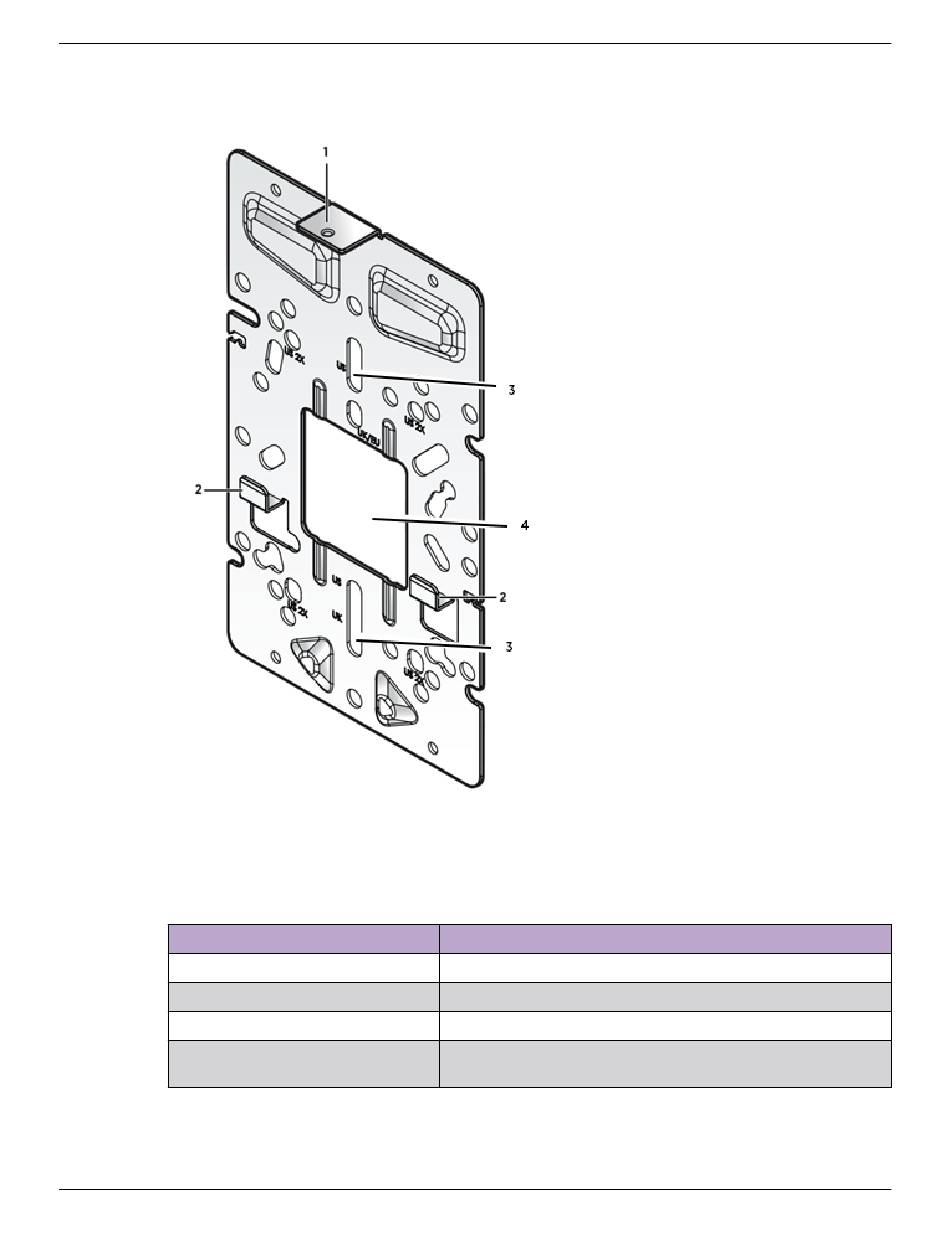

Figure 9: Wall plate bracket components
Table 9: Wall plate mounting bracket components for wall and junction box
installation
4. Run the Ethernet cable or the RJ45 cable from the junction box and through the wall plate bracket's
large center hole.
5. Connect the Ethernet cable or the RJ45 flat cable to the access point.
26 ExtremeWireless™ Access Point AP302W
Callout Description
1 Security locking tab
2 Access point holding tabs
3 Junction box installation hole
4 Large hole to place on the junction box and to run the RJ45
cable through
Install the Access Point
