AP302W Features

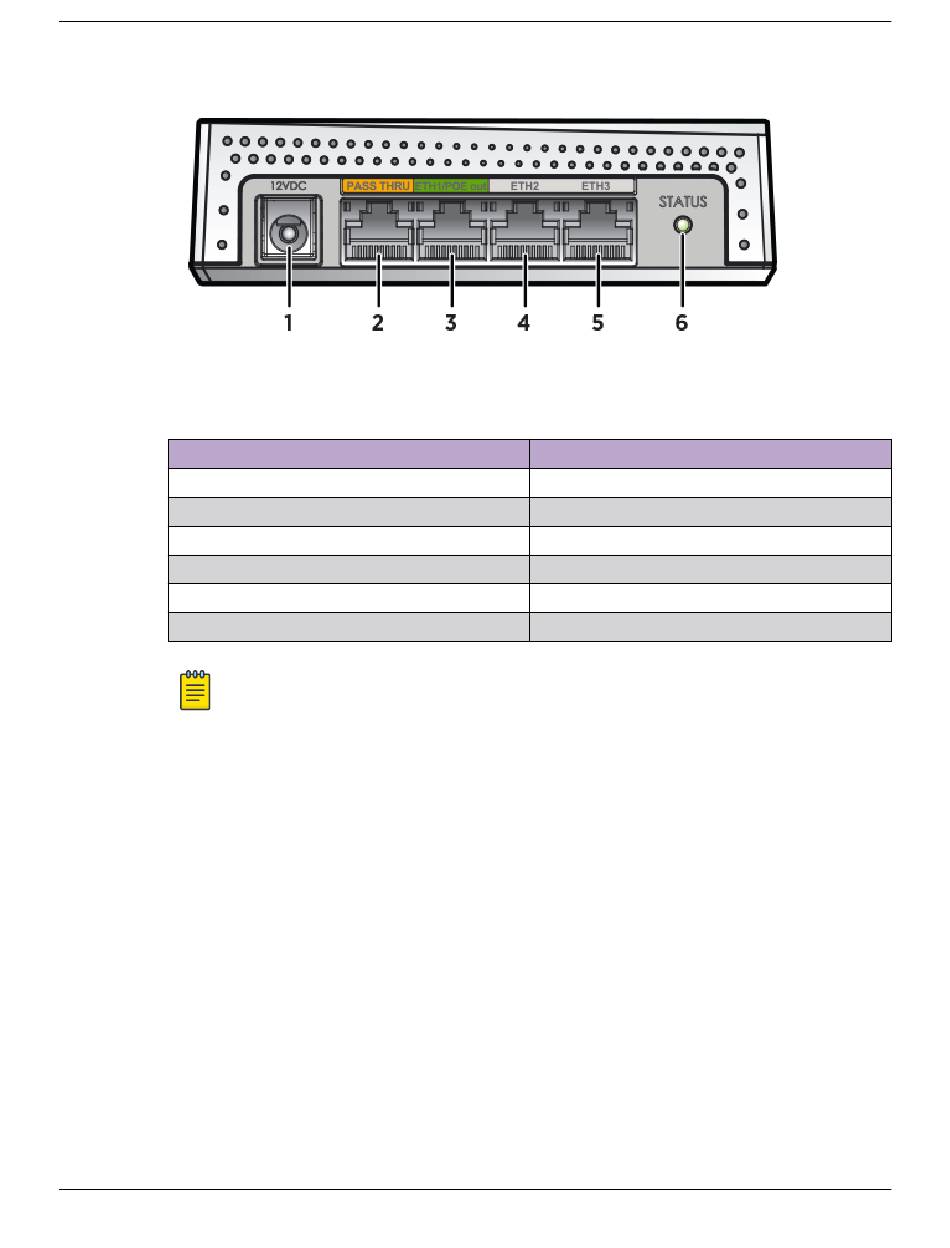

Figure 4: AP302W bottom plug-in ports
Table 6: AP302W bottom plug-in ports description
Callout
1
2
3
4
5
6
Note
The bottom ports or user access ports can be used as plug-in ports or through wireless
connection. You will be able to access only the bottom ports after the access point is installed.
Related Topics
Status LED Activity and Light Sensor
14 ExtremeWireless™ Access Point AP302W
Description
12 VDC power supply
Pass through port
ETH1 or PoE out port
ETH2 port
ETH3 port
Status LED
on page 15
AP302W Overview
