Install the Access Point
4. Insert the access point onto the bracket locking tab and slide it down until it is fully seated onto the
bracket.

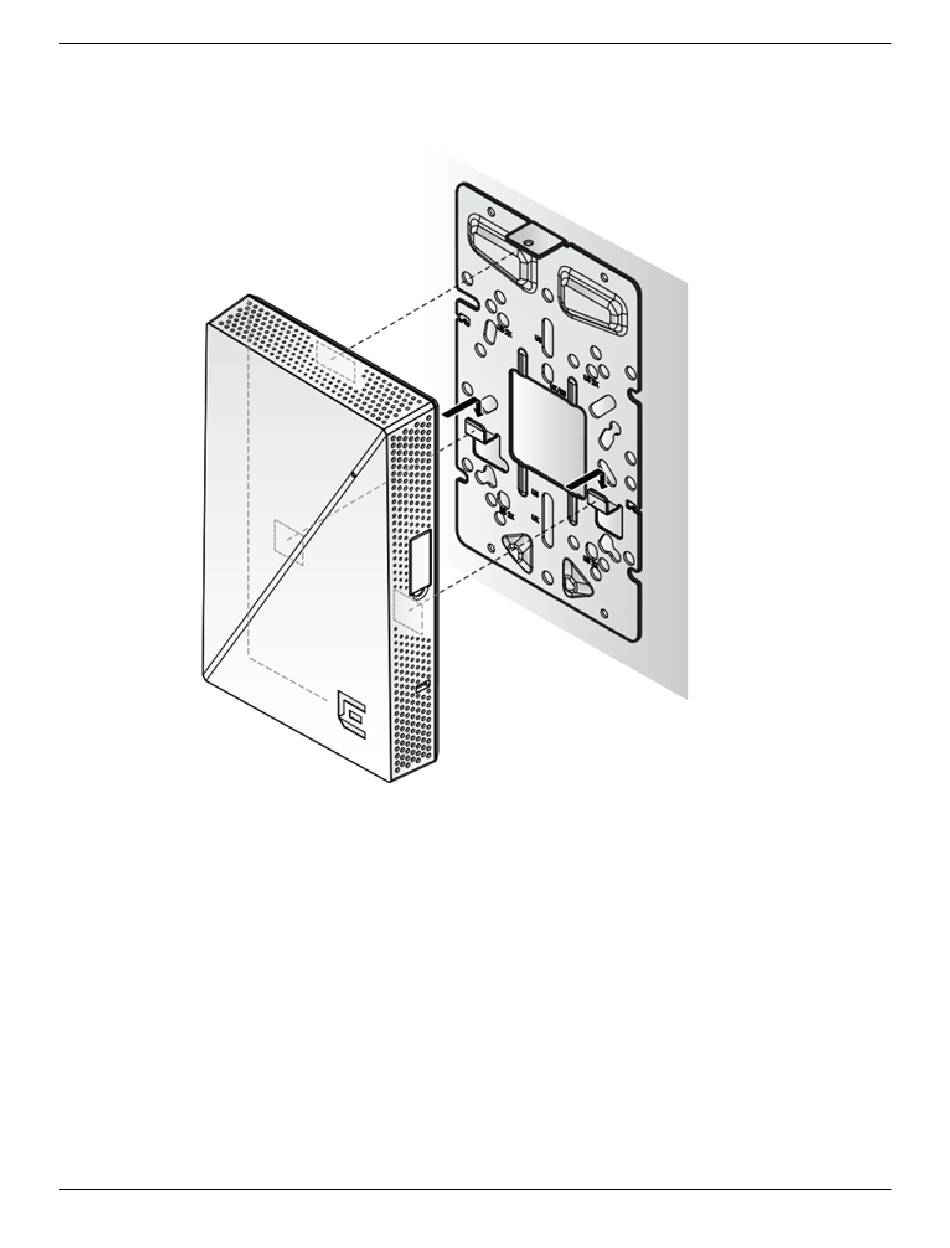

Figure 8: Access point installation to wall plate bracket
5. Attach the security locking screw to the security locking tab on the wall bracket, and lock the access
point in place.

Install the Access Point on a Wall Using the ACC-BKT-AX-WP-EXT Accessory

Use the ACC-BKT-AX-WP-EXT accessory with the in-box stainless-steel mounting bracket for solid wall
installations, where the system cables protrude from the wall. The -EXT accessory provides an extension
up to 20 mm to place the cables.
Before You Begin
Hardware required for installation:
•
One AP302W access point
•
One in-box wall plate stainless-steel bracket
Install the Access Point on a Wall Using the ACC-BKT-
ExtremeWireless™ Access Point AP302W
AX-WP-EXT Accessory
23
