Foundation
B
• Place the foundation bolts into
the template using provided nuts
with the help of a 24mm open-end
wrench.
• Once the kit is assembled, it must
be placed in the ground taking
into consideration the following
measures.

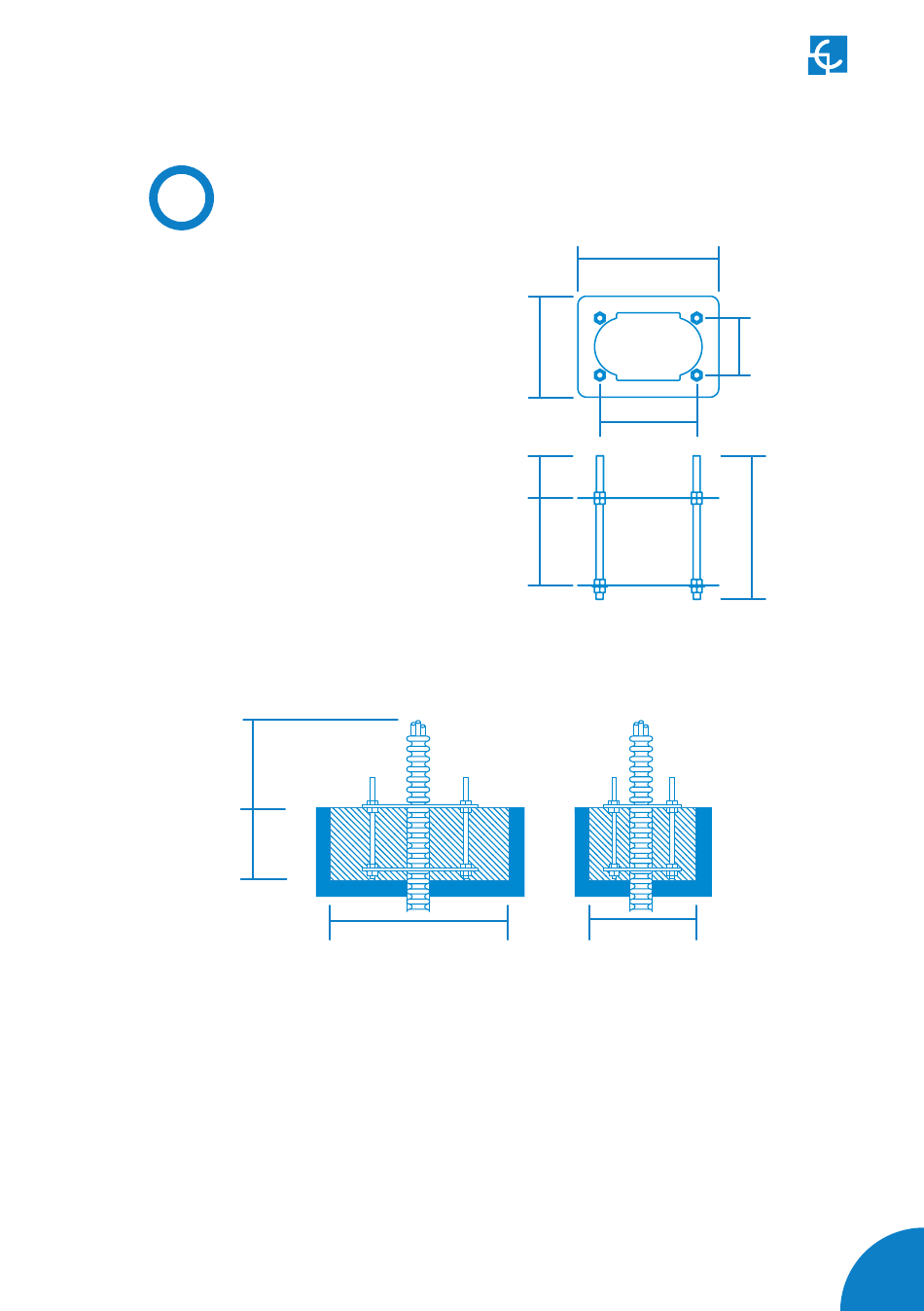

450
300
Note: In the event of any doubt about the terrain regarding the installation of this
unit, due to the weight and dimensions, it will be necessary to define a final solution
to install the unit. It must be confirmed by a specific technical project made for an
architectural firm prior to its installation.
230
119
250
Front view
500
320
130
220
400
Side view
300
Measures in mm
