Dimensions

A Minimum Distances
When installing the unit, respect the minimum distances space for maintenance and
safety reasons.
Please comply accordingly to your country specifications.

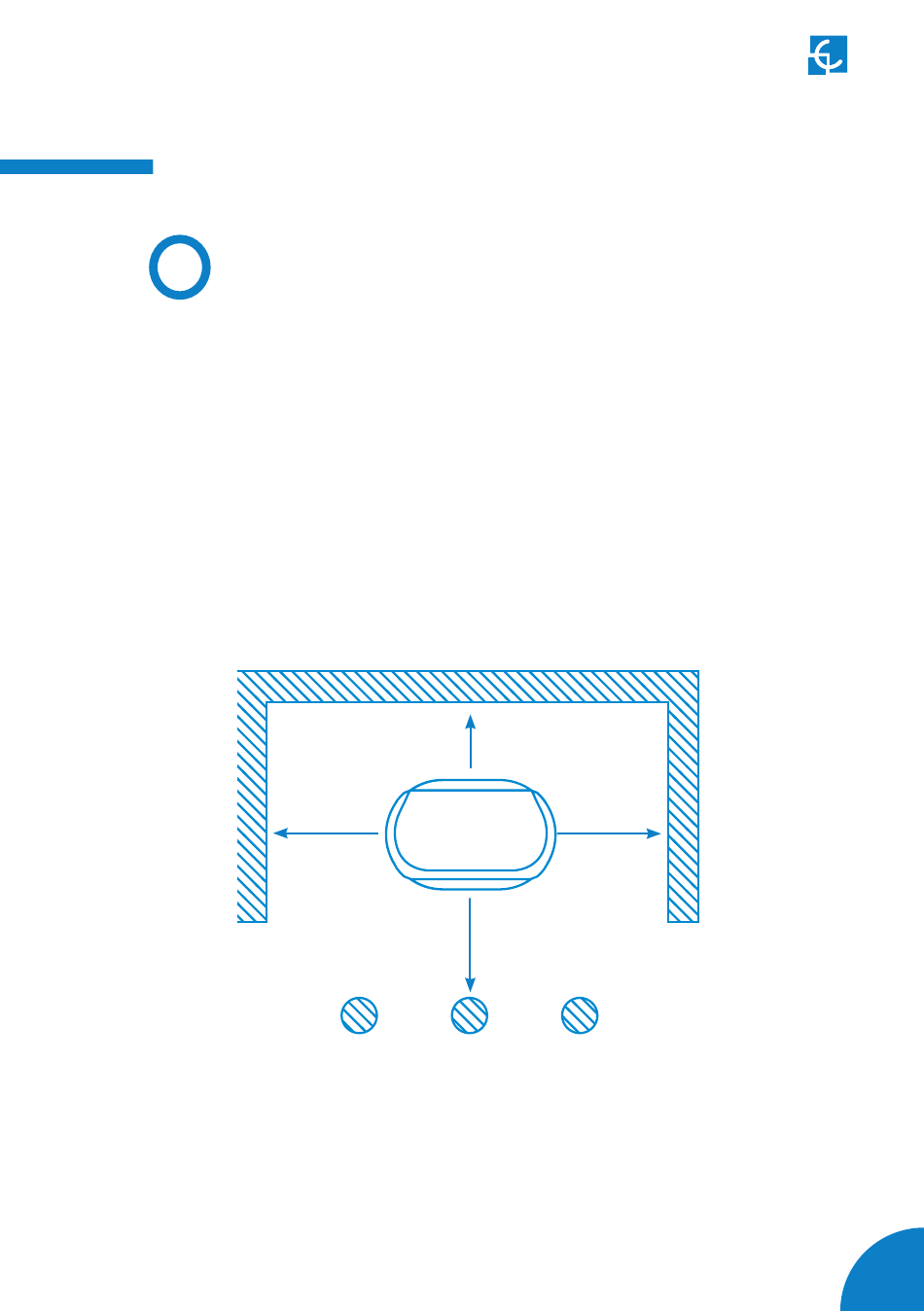

The next picture shows how it should be installed.
• Do not install near areas where water or fluids can penetrate into the unit.
• Do not install the unit in unstable terrain.
500
(*) If Bollard Impact Protector is installed, keep 500 mm as a minimum distance in order
to give enough space to open the frontal door of the charge point for maintance tasks.
50
500
x
*
Measures in mm
