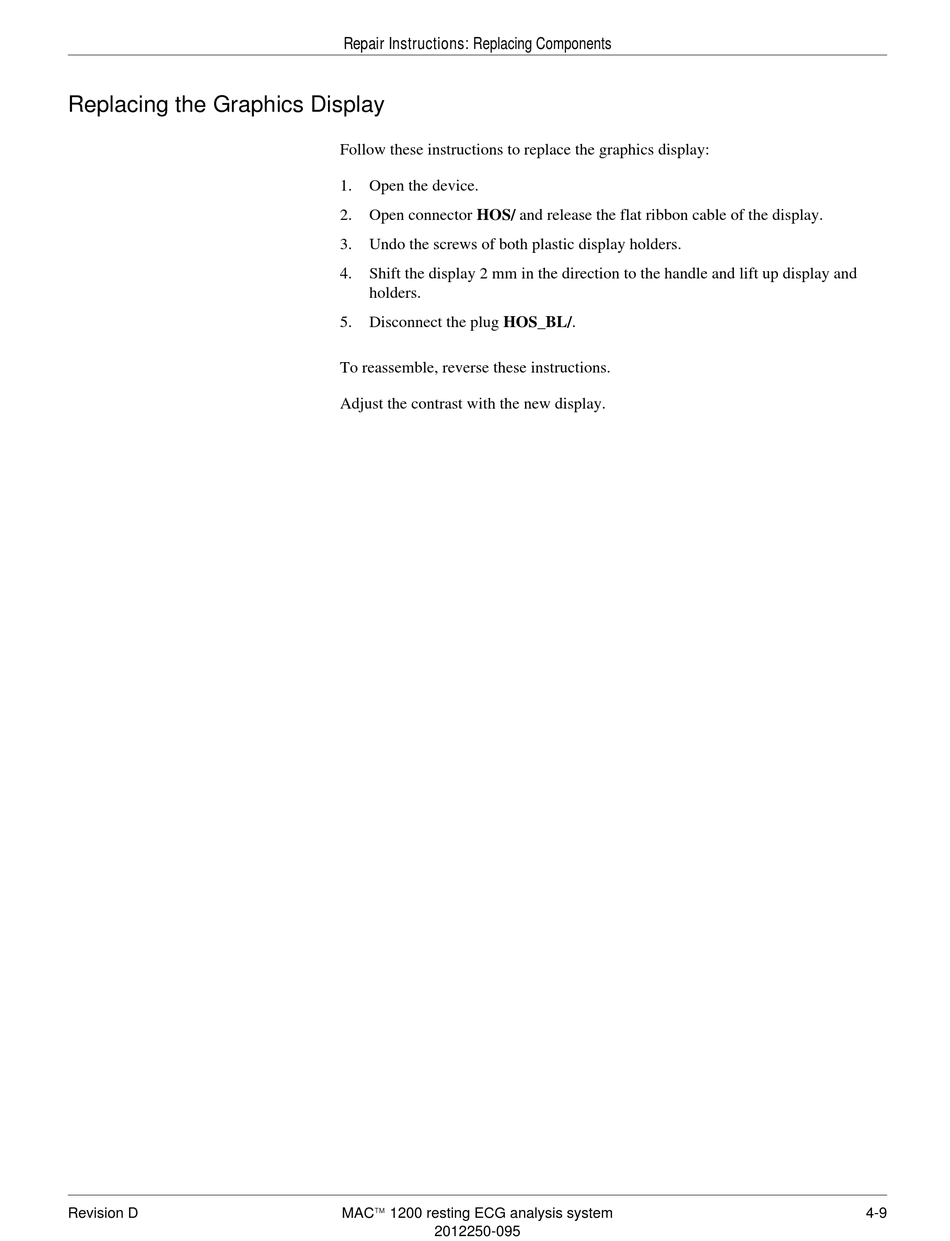

Replacing the Graphics Display
Revision D
Repair Instructions: Replacing Components
Follow these instructions to replace the graphics display:
1. Open the device.
2. Open connector HOS/ and release the flat ribbon cable of the display.
3. Undo the screws of both plastic display holders.
4. Shift the display 2 mm in the direction to the handle and lift up display and
holders.
5. Disconnect the plug HOS_BL/.
To reassemble, reverse these instructions.
Adjust the contrast with the new display.
MAC 1200 resting ECG analysis system
2012250-095
4-9
