GE MAC 1200 Service Manual page 107

Revision D

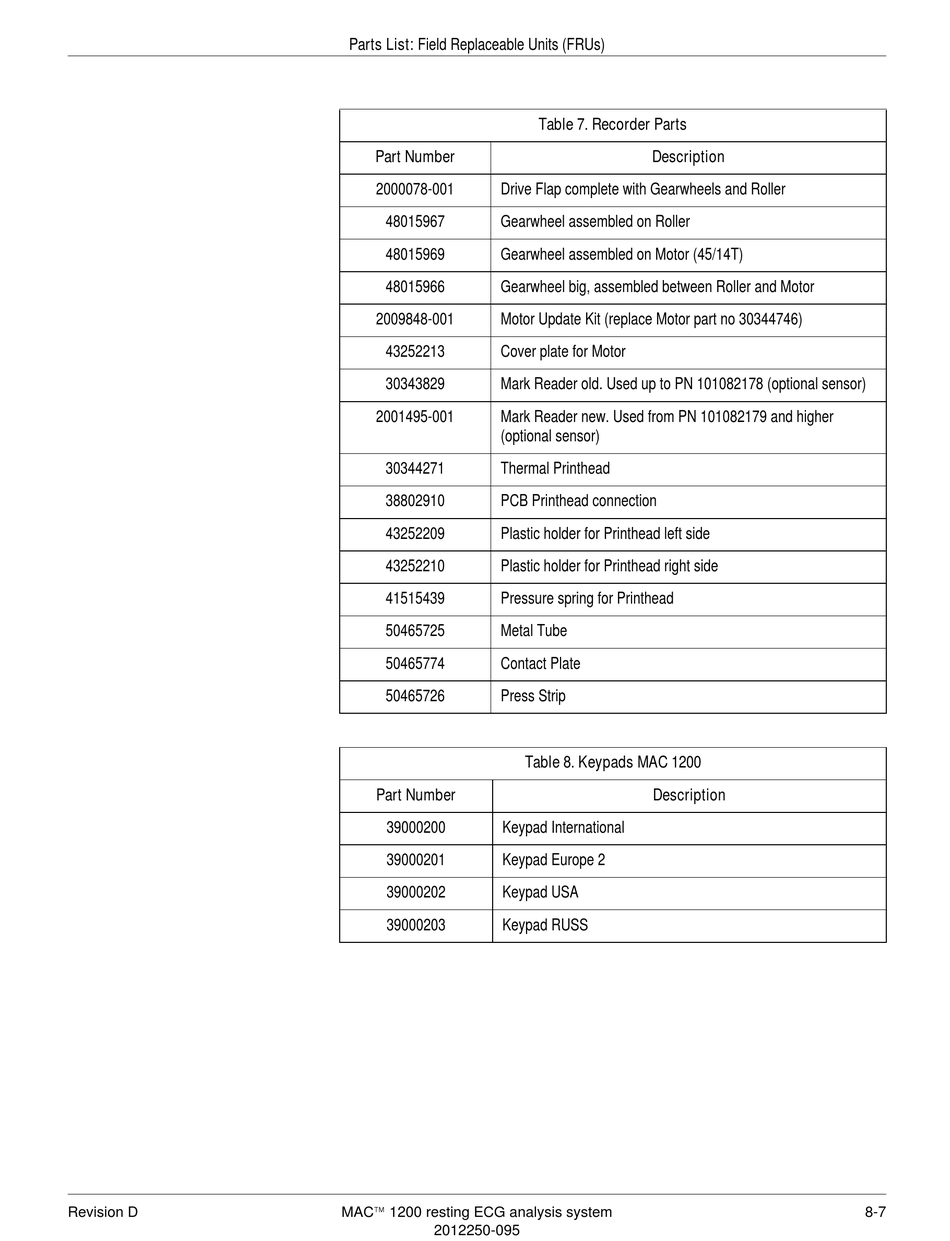

Parts List: Field Replaceable Units (FRUs)
Part Number
2000078-001 Drive Flap complete with Gearwheels and Roller
48015967 Gearwheel assembled on Roller
48015969 Gearwheel assembled on Motor (45/14T)
48015966 Gearwheel big, assembled between Roller and Motor
2009848-001 Motor Update Kit (replace Motor part no 30344746)
43252213 Cover plate for Motor
30343829 Mark Reader old. Used up to PN 101082178 (optional sensor)
2001495-001 Mark Reader new. Used from PN 101082179 and higher
(optional sensor)
30344271 Thermal Printhead
38802910 PCB Printhead connection
43252209 Plastic holder for Printhead left side
43252210 Plastic holder for Printhead right side
41515439 Pressure spring for Printhead
50465725 Metal Tube
50465774 Contact Plate
50465726 Press Strip
Part Number
39000200 Keypad International
39000201 Keypad Europe 2
39000202 Keypad USA
39000203 Keypad RUSS
MAC 1200 resting ECG analysis system
2012250-095
Table 7. Recorder Parts
Description
Table 8. Keypads MAC 1200
Description
8-7
