Patient Input
J1
Pin Number Signal
1 C2
2 C3
3 C4
4 C5
5 C6
6 Shielding
7 Cable
8 Cable
identification
9 R (RA)
10 L (LA)
11 F (LL)
12 C1
13 NST
14 N (RF)
15 NAX
Revision D

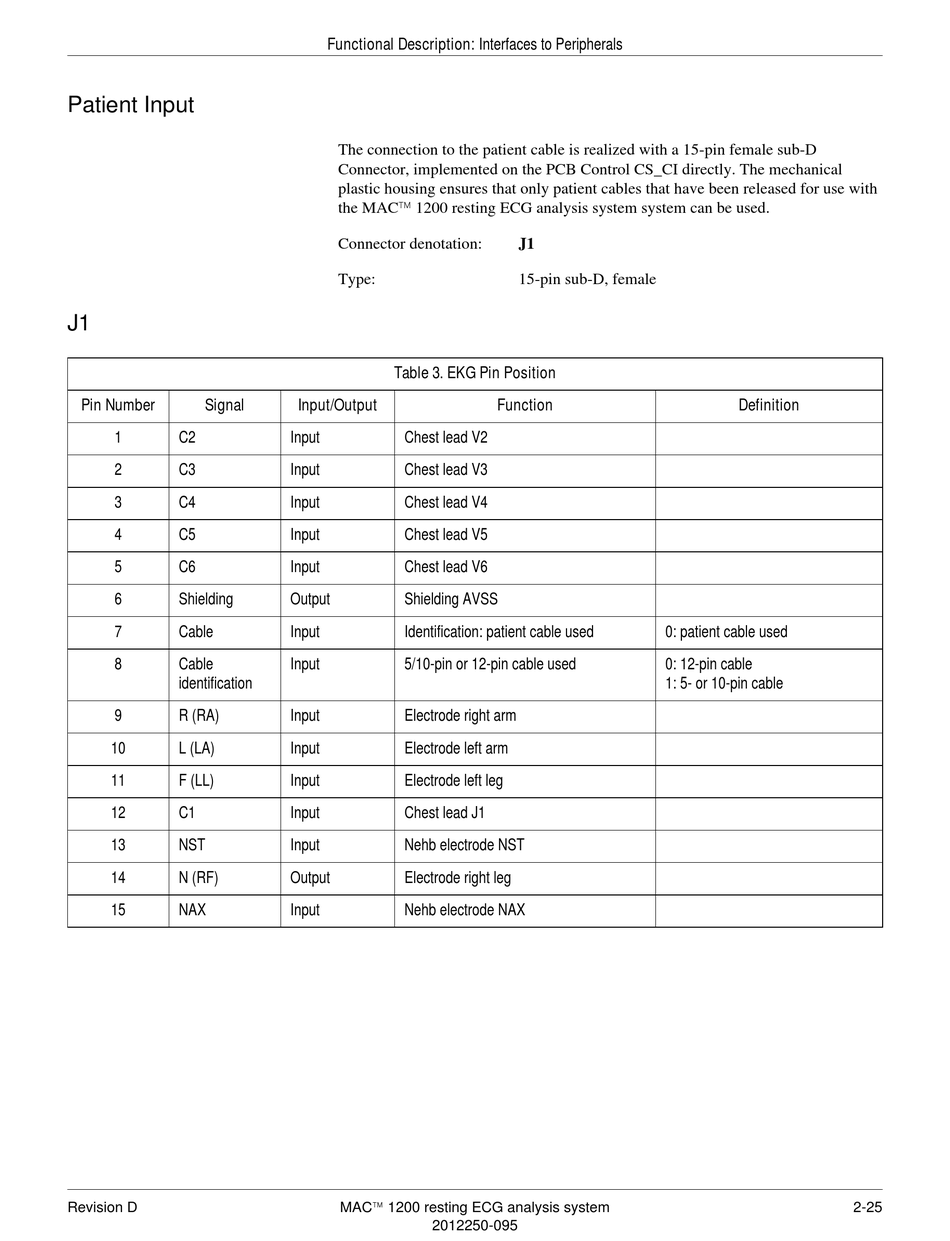

Functional Description: Interfaces to Peripherals
The connection to the patient cable is realized with a 15-pin female sub-D
Connector, implemented on the PCB Control CS_CI directly. The mechanical
plastic housing ensures that only patient cables that have been released for use with
the MAC 1200 resting ECG analysis system system can be used.
Connector denotation:
Type:
Table 3. EKG Pin Position
Input/Output
Input Chest lead V2
Input Chest lead V3
Input Chest lead V4
Input Chest lead V5
Input Chest lead V6
Output Shielding AVSS
Input Identification: patient cable used
Input 5/10-pin or 12-pin cable used
Input Electrode right arm
Input Electrode left arm
Input Electrode left leg
Input Chest lead J1
Input Nehb electrode NST
Output Electrode right leg
Input Nehb electrode NAX
MAC 1200 resting ECG analysis system
2012250-095
J1
15-pin sub-D, female
Function
0: patient cable used
0: 12-pin cable
1: 5- or 10-pin cable
Definition
2-25
