Repair Instructions: Replacing Components
3.

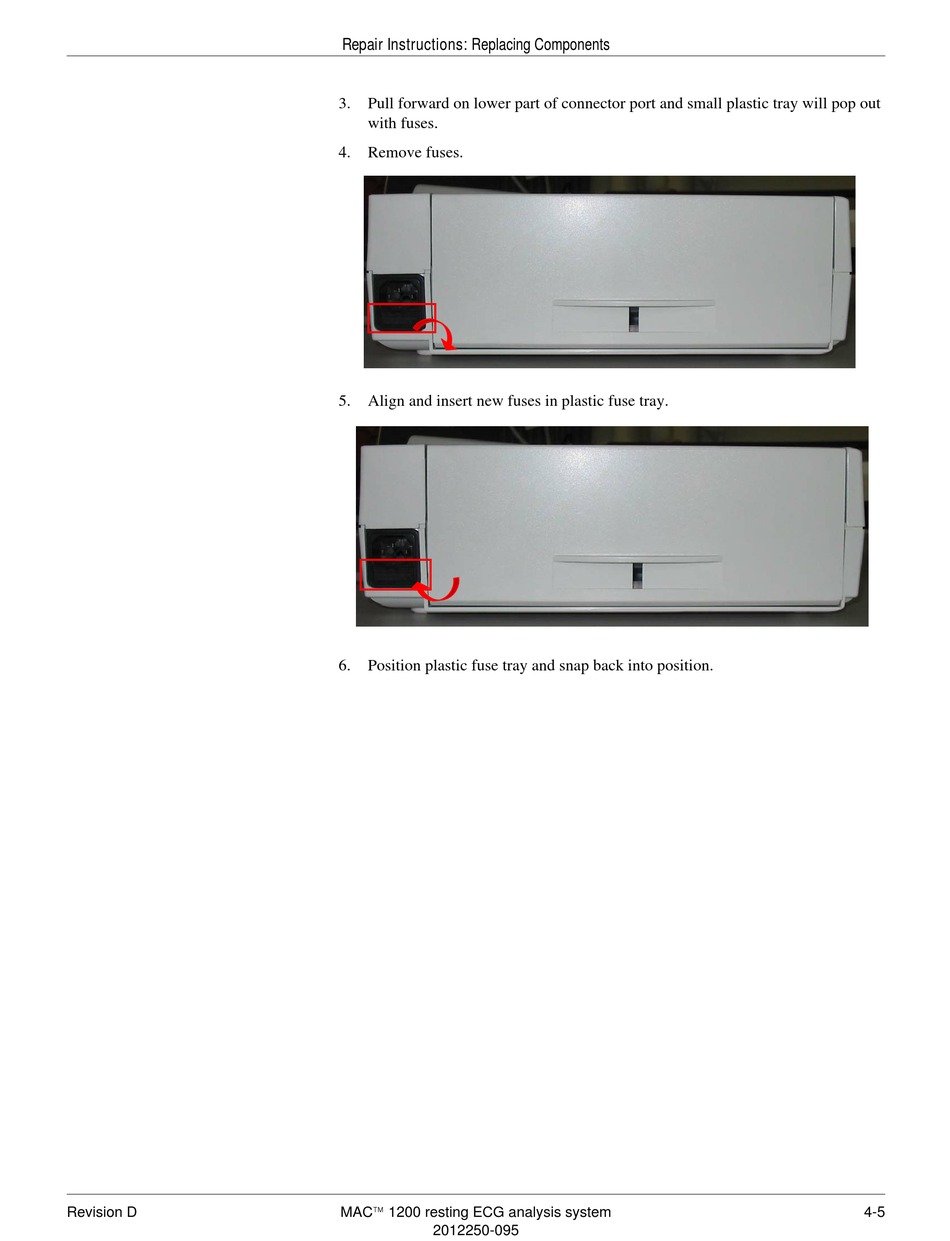

Pull forward on lower part of connector port and small plastic tray will pop out
with fuses.
4.
Remove fuses.
5.
Align and insert new fuses in plastic fuse tray.
6.
Position plastic fuse tray and snap back into position.
