Mains Operation

Battery Operation

Operational Readiness

Operating Position

9-10

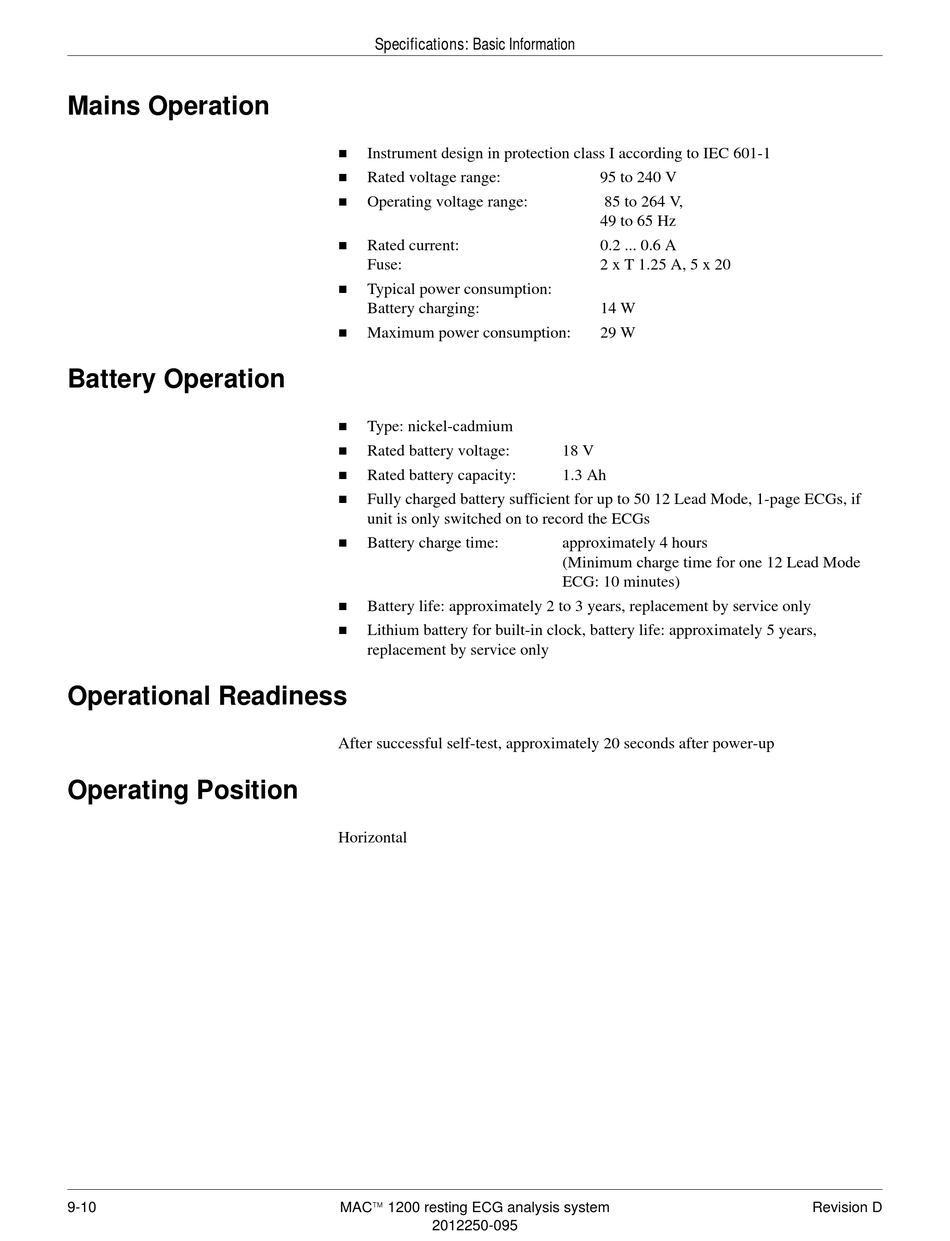

Specifications: Basic Information

Instrument design in protection class I according to IEC 601-1
 Rated voltage range:
 Operating voltage range:

Rated current:
Fuse:

Typical power consumption:
Battery charging:
 Maximum power consumption:

Type: nickel-cadmium
 Rated battery voltage:

Rated battery capacity:

Fully charged battery sufficient for up to 50 12 Lead Mode, 1-page ECGs, if
unit is only switched on to record the ECGs
 Battery charge time:

Battery life: approximately 2 to 3 years, replacement by service only

Lithium battery for built-in clock, battery life: approximately 5 years,
replacement by service only
After successful self-test, approximately 20 seconds after power-up
Horizontal
MAC 1200 resting ECG analysis system
2012250-095
95 to 240 V
85 to 264 V,
49 to 65 Hz
0.2 ... 0.6 A
2 x T 1.25 A, 5 x 20
14 W
29 W
18 V
1.3 Ah
approximately 4 hours
(Minimum charge time for one 12 Lead Mode
ECG: 10 minutes)
Revision D
