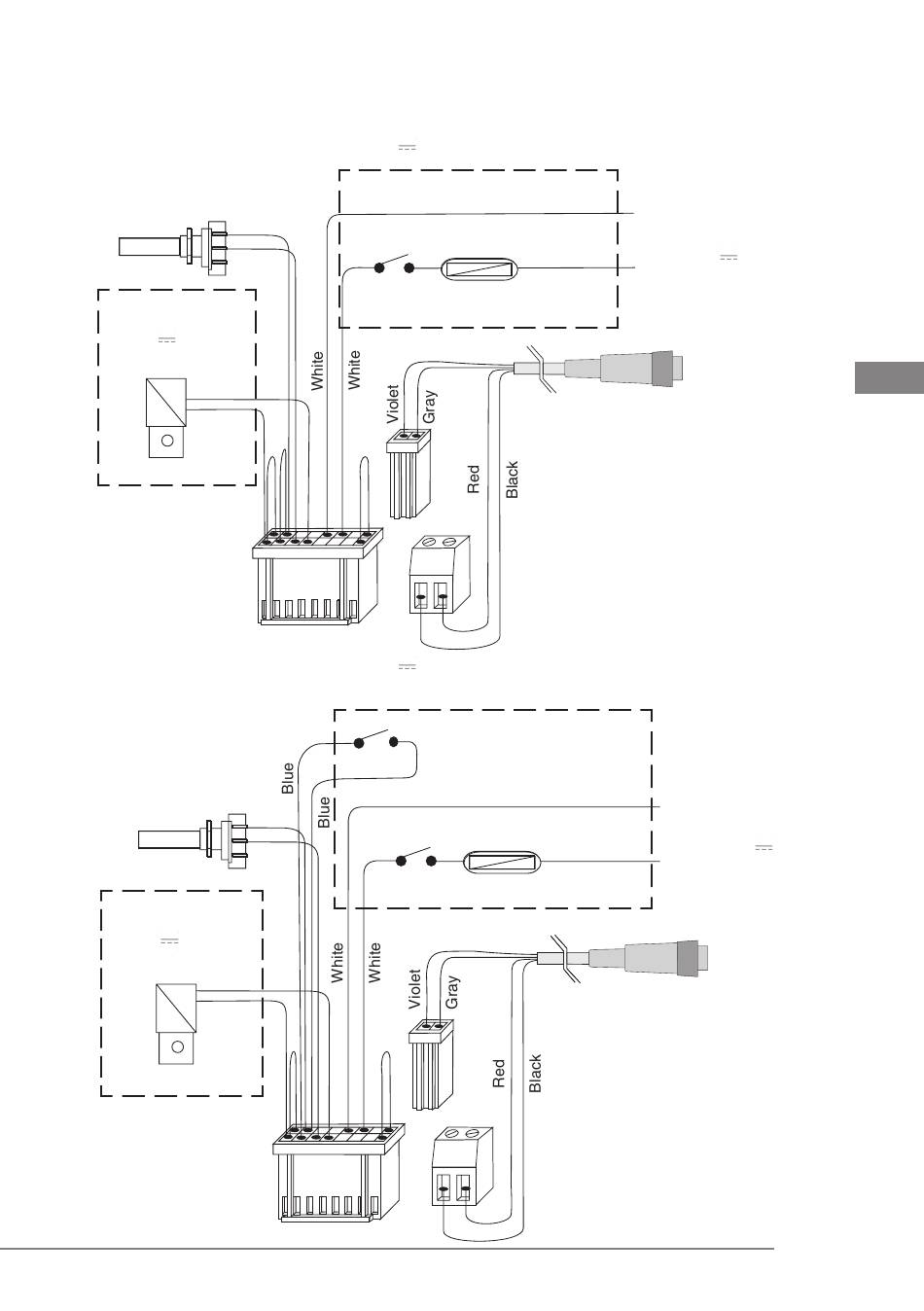

Available.wiring.diagrams - mectron compact piezo led Manual

- Diagram.A Power (24V
Potentiometer
2.2 K linear
Yellow
Yellow
Solenoid valve
(optional)
24 V 2,5W
Green
Green
- Diagram.B Power (24V
quiver and consent is footswitch controlled.
Potentiometer
2.2 K linear
Yellow
Solenoid valve
(optional)
24 V 2,5W
Green
Green
compact piezo led connections
~ or 32 V
Fuse holder, fuse and footswitch are
not included in Mectron's supply
Footswitch
1 2
9 16
8 7 6 5 4 3 2 1
~ or 32 V ) is supplied through the contact on the
Footswitch
Quiver
Yellow
1 2
9 16
8 7 6 5 4 3 2 1
Available wiring diagrams
and consent are footswitch controlled.
Fuse
T 2 A
Scaler handpiece cord
Fuse holder, fuse, footswitch
and quiver are not included in
Mectron's supply
Fuse
T 2 A
Scaler handpiece cord
Supply voltage
~
24 V 50/60 Hz o
32 V
Minimum 40VA
Supply voltage
~
24 V 50/60 Hz o
32 V
Minimum 40VA
23
EN
