Module.dimensions

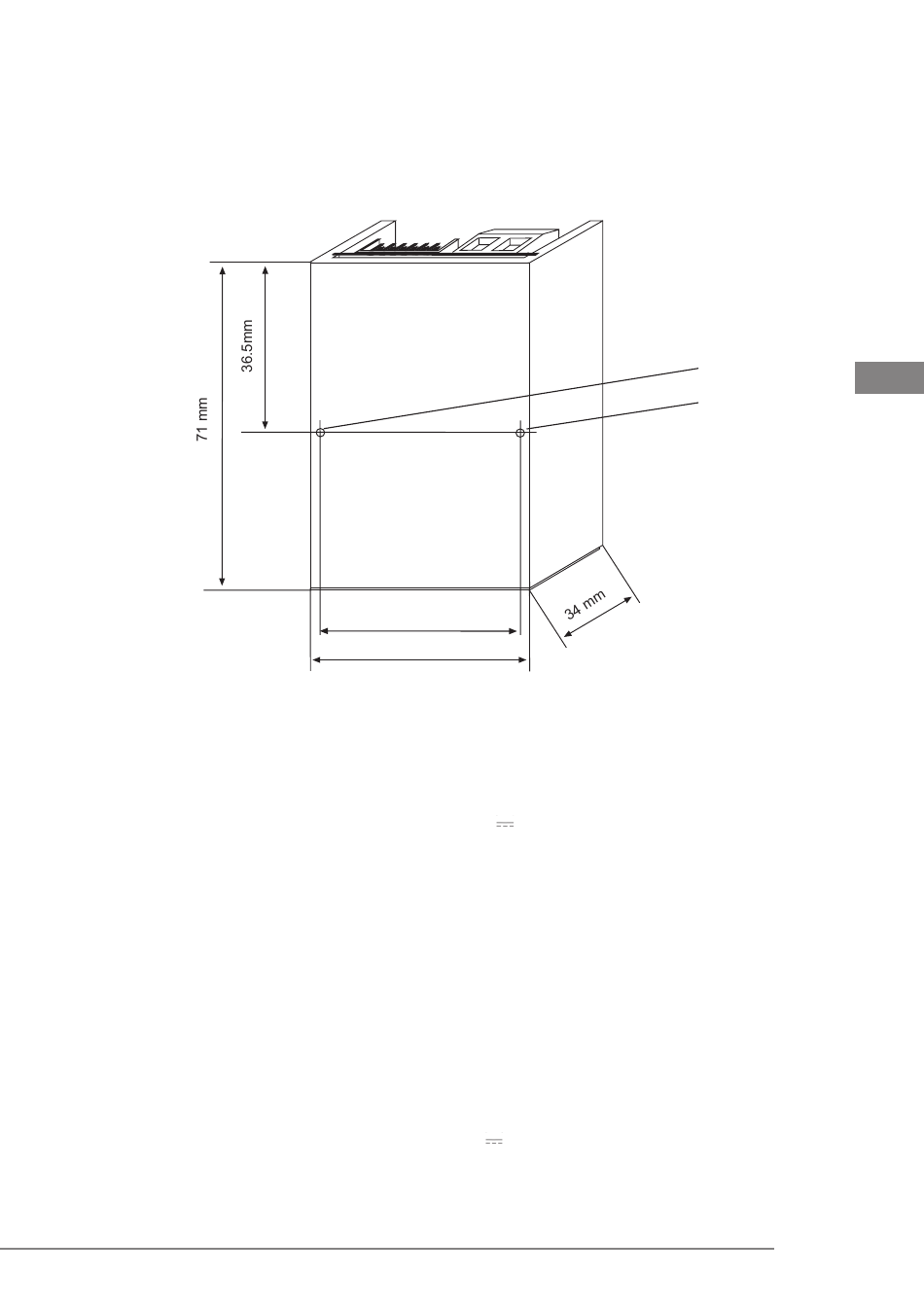

Figure 4 gives the module's overall dimensions. There are two dead holes (Ref. A-B) for fixing the
module.
Appliance.for.intermittent.use:
Supply.voltage:..
Minimum.supply.power:.
Fuse:
Working.frequency:..
Power:
LED.system.of.the.handpiece:
Solenoid.valve.control.output:..
Water.supply:
The information given in this manual is not binding and can be modified without prior notice.
compact piezo led connections
42 mm
46 mm
60sec. ON - 30sec. OFF with irrigation
30sec. ON - 120sec. OFF without irrigation
- 24 V ~ 50/60 Hz or
- 32 V
40 VA
T2AL, 250V (not included)
Automatic scanning
From 24 KHz a 36 KHz
Adjustable according to assembling type
LED system of the handpiece switches on as soon
as the device starts to operate and switches off 3
seconds after the foot pedal is released
24 V 2,5W
Adjustable according to assembling type

Installation

A
B
Technical data
