Power Regulation Potentiometer 4.7 K; Power Regulation 0-5V - mectron compact piezo led Manual

Power.regulation.potentiometer.4.7.K

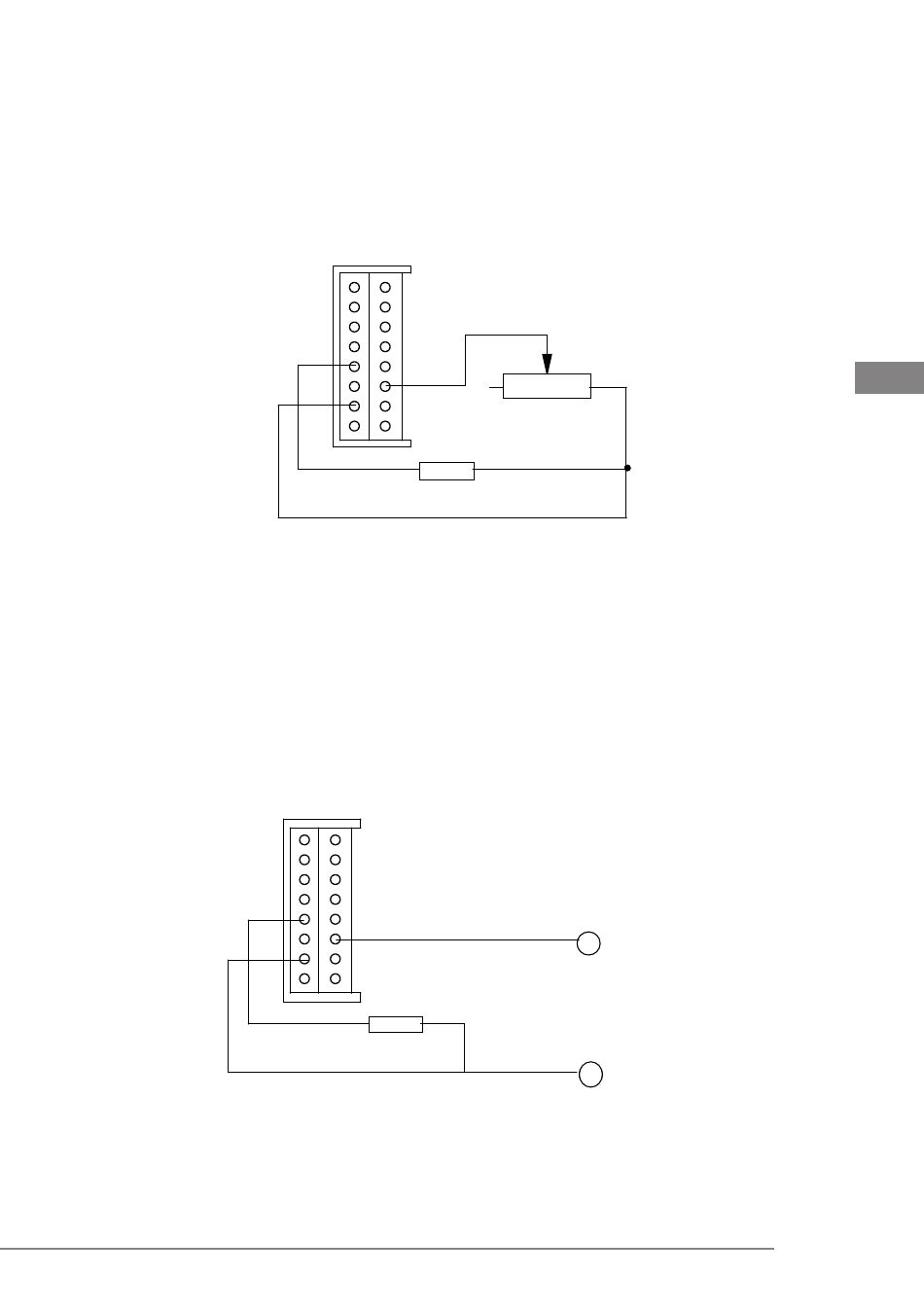

Connect the potentiometer of 4.7 K between pins 6 and 10 and a setting resistance of 39 K 1/8W
1% between pins 12 and 10.
The maximum power corresponds to resistance 0.
Power.regulation.0-5V
The power modulation can be carried out with a variable voltage between 0 and 5 Volts applied
between pins 6 and 10 (earth).
Connect a setting resistance of 82 K 1/8W 1% between pins 12 and 10.
compact piezo led connections
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
Resistence
39 K 1/8 W 1%
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
Resistence
82 K 1/8 W 1%
Potentiometer
4.7 K linear
+
0-5V 1mA
-
