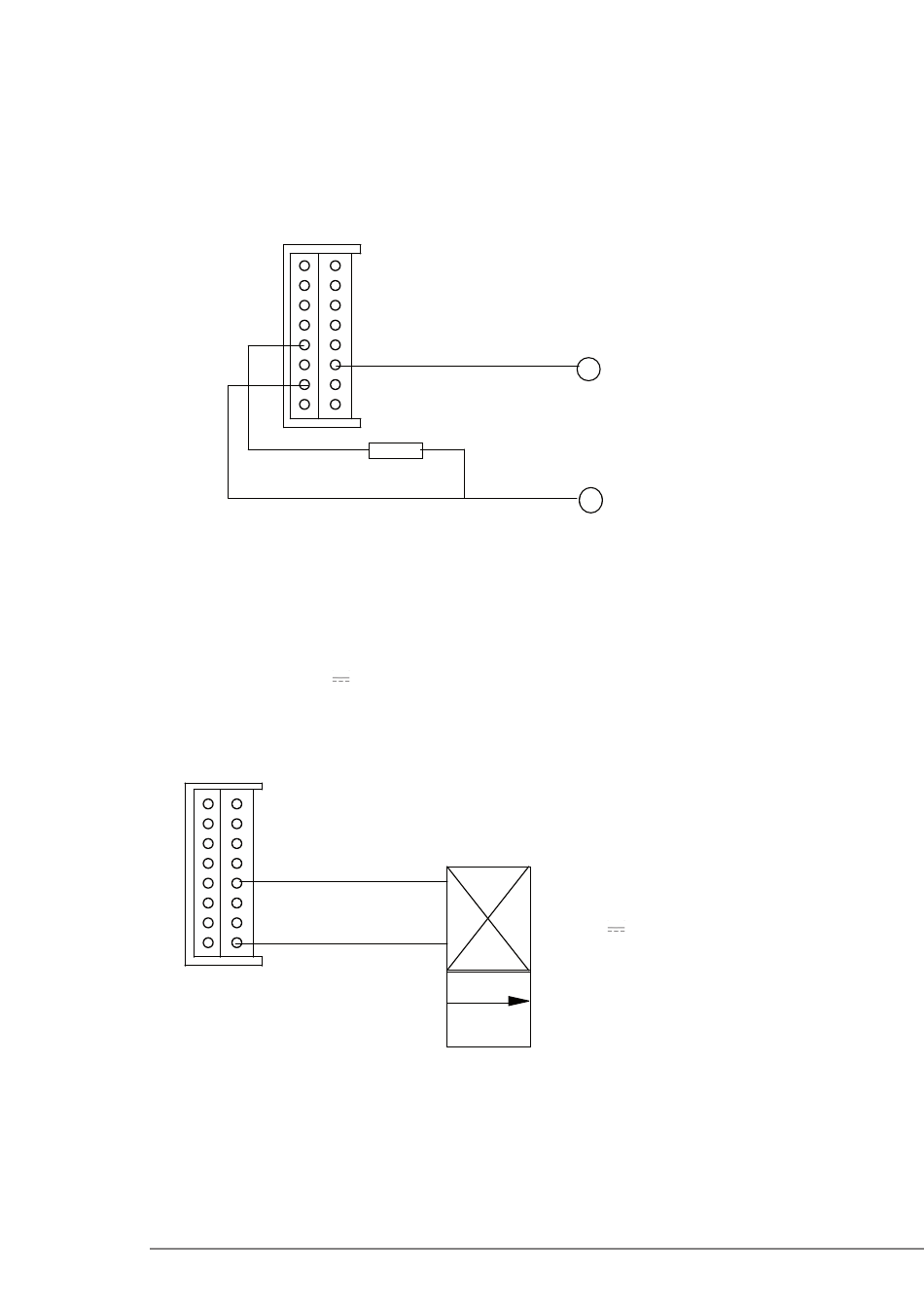

Power.regulation.0-10V
The power modulation can be carried out with a variable voltage between 0 and 10 Volts applied
between pins 6 and 10 (earth).
Connect a setting resistance of 10 K 1/8W 1% between pins 12 and 10.
Solenoid.valve.control
Connect a solenoid valve at 24 V
16
15
14
13
12
11
10
9
20
16
1
15
2
14
3
13
4
12
5
11
6
7
10
8
9
Resistence
10 K 1/8 W 1%
2,5 W to pins 5 and 8.
1
2
3
4
5
6
7
8
+
0-10V 1mA
-

Controls

Solenoid valve
(optional)
24 V
2,5W
compact piezo led connections
