Summary of Contents for mectron COMPACT PIEZO LED

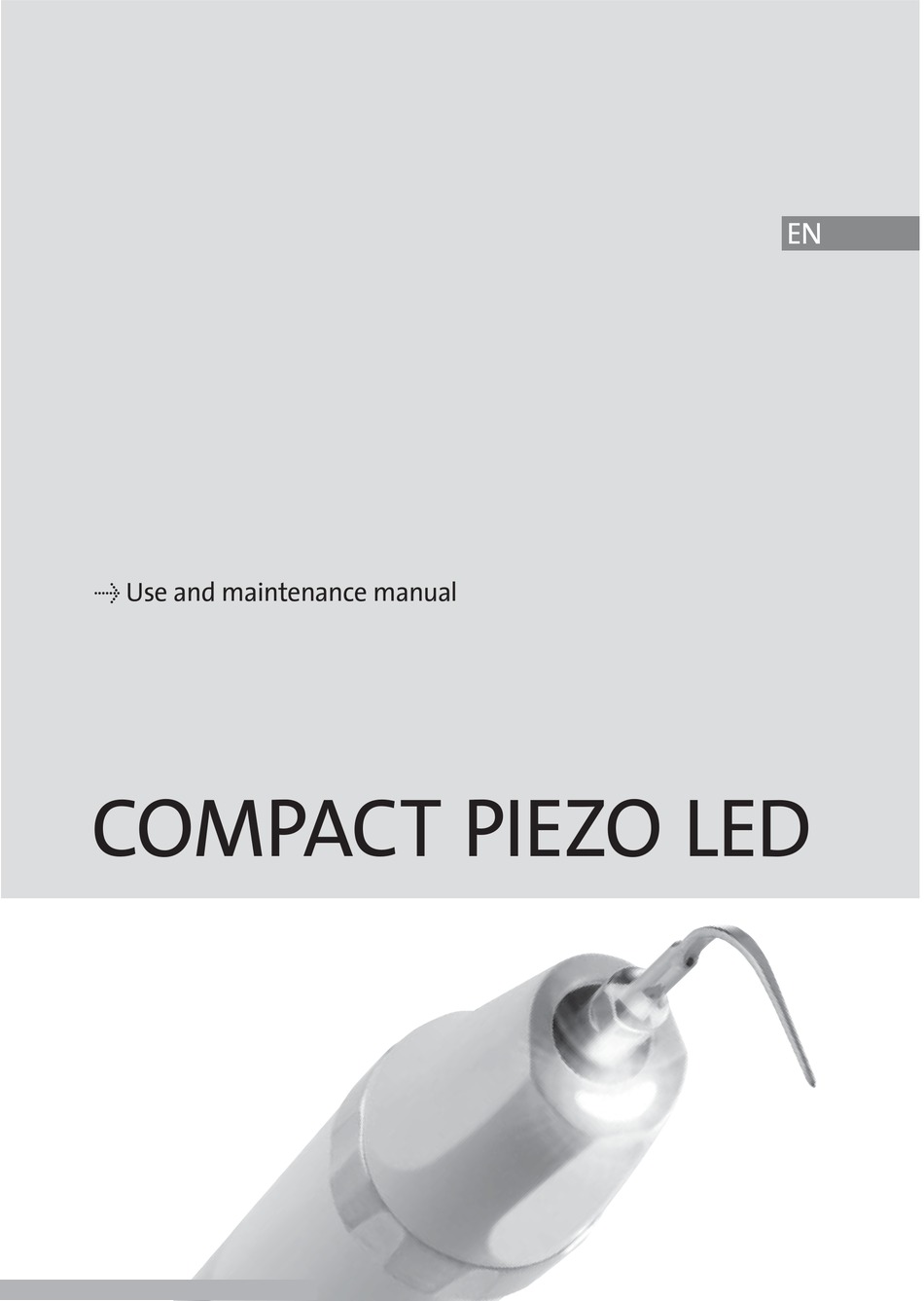

  • Page 1 Û Use and maintenance manual COMPACT PIEZO LED...

  • Page 2: Table Of Contents

    ..........3 01.1 Intended use of compact piezo LED ......3 01.2 Description of the device .

  • Page 3: Û Introduction

    The purpose of this manual is to make the operator knowledgeable of the safety 01.1 Û INTENDED USE OF THE COMPACT PIEZO LED By means of the appropriate inserts, the - endodontics: all treatments for root canals following dental applications can be preparation, irrigation, filling, condensation...

  • Page 4: Description Of The Device

    COMPACT PIEZO LED 01.2 Û DESCRIPTION OF THE DEVICE The compact piezo LED is a multifunctional The device has an automatic sync circuit ultrasonic piezoelectric scaler. It has been which optimizes frequency and power designed in order to offer a product with...
  • Page 5 During the intervention, avoid prolonged not perform the treatment. Contact an contact with retractors or with metallic Authorized Mectron Service Center if the abnormalities concern the device. instrumentation in use. Do not exert excessive pressure on the inserts during WARNING: Infections control.

  • Page 6: Symbols

    COMPACT PIEZO LED 01.5 Û SYMBOLS Serial number Lot number Product code CAUTION: read the instructions for use Operating instructions 70 °C Temperature limitation - transport and storage conditions -10 °C 90 % Humidity limitation - transport and storage conditions...

  • Page 7: Û Identification Data

    An exact description of the model and of the serial number of the device will enable our After- Sales Service to provide fast and efficient support. Always refer these data whenever you contact an Authorized Mectron Service Center. 02.1 Û IDENTIFICATION DATA OF THE HANDPIECE Each handpiece is laser-marked with the Mectron logo (ref.

  • Page 8: Û Use

    04 Û USE 04.1 Û CONTROLS The compact piezo LED offers a wide range dental chair on which the compact piezo of power settings: from a sub-gengival perio LED is intalled in order to have the complete treatment in soft mode to a more aggressive description of the power settings at your scaling.
  • Page 9 Contact an Authorized Mectron Do not bend, change shape of, or re- Service Center if the abnormalities concern sharpen an insert in any way.

  • Page 10: Instructions For Use

    Screw the chosen insert onto the compact piezo LED handpiece, until it reaches the limit stop; Tighten the insert by using the Mectron CORRECT torque wrench. To correctly use the Mectron torque wrench, operate as follows: put the insert inside the wrench as shown;...

  • Page 11: Important Information On The Inserts

    - If excessive pressure is applied on the performance is noted replace it with a insert, it can cause the insert to break new one. and possibly harm the patient. - Use original Mectron inserts only. Use of non-original inserts, in addition to...

  • Page 12: Û Disassembly Of Parts For Cleaning And Sterilization

    Always make sure that the STERILIZATION, disconnect all the accessories footswitch is not pressed during the and components of the compact piezo LED. disassembling of parts before cleaning and sterilization interventions If present, unscrew the insert from the handpiece by using the torque wrench;...

  • Page 13: Û Cleaning And Sterilization

    06 Û CLEANING AND STERILIZATION 06 Û CLEANING AND STERILIZATION 06.1 Û CLEANING AND STERILIZATION OF THE HANDPIECE PREPARATION CAUTION: Do not attempt to unscrew - Disconnect the handpiece from the cord of or turn the connector when disconnecting the dental chair (see Chapter 05); the handpiece.
  • Page 14 COMPACT PIEZO LED Clean the surface of the handpiece and of its connector with a clean, soft cloth with low fiber-release, dampened with a detergent solution (pH 6-9) and, if need be, disinfect with a non-aggressive disinfectant solution with neutral pH (pH7), following the instructions provided by the manufacturer of the solution;...
  • Page 15 Mectron and reach the sterilization safety levels (SAL 10 CAUTION: Perform the sterilization using a water steam autoclave only. Do not...

  • Page 16: Cleaning And Sterilization Of The Inserts

    COMPACT PIEZO LED 06.2 Û CLEANING AND STERILIZATION OF THE INSERTS PREPARATION - Disconnect the insert from the handpiece CAUTION: Always disconnect the insert with the torque wrench (see Chapter 05). from the handpiece before proceeding to its cleaning and sterilization.
  • Page 17 06 Û CLEANING AND STERILIZATION Remove the insert from the ultrasonic tank and rinse with distilled water; Delicately brush the surface of the insert with the brush with soft nylon bristles; Rinse the internal canal of the insert with distilled water injected under pressure (3,8 bar) for at least 10 seconds to eliminate all residues;...

  • Page 18: Cleaning And Sterilization Of The Torque Wrench

    WARNING: Checking infections - Parts Mectron and reach the sterilization safety that can be sterilized - Diligently remove levels (SAL 10 all residues of organic dirt before the - 3 times Pre-vacuum sterilization.
  • Page 19 06 Û CLEANING AND STERILIZATION CLEANING AND DISINFECTION METHOD - Torque wrench Prepare an enzymatic detergent solution with pH 6-9, as per the instructions of the manufacturer; Place the insert in the ultrasound tank submerged by the enzymatic detergent 10 min 40°C solution at 40°C, for at least 10 minutes;...
  • Page 20 - Diligently remove indicated below, which are validated by all residues of organic dirt before the Mectron and reach the sterilization safety sterilization. levels (SAL 10 CAUTION: Perform the sterilization - 3 times Pre-vacuum using a water steam autoclave only.

  • Page 21: Û Maintenance

    Class IIa Classification as per EN 60601-1: The class definition is delegated to the dental chair manufacturer using the compact piezo LED in its unit Applied part type “B” (handpiece, insert) IP According to the dental chair manufacturer 60sec. ON - 30sec. OFF with irrigation Device for intermittent operation: 30sec.

  • Page 22: Electromagnetic Compatibility En 60601-1-2

    Guidance and manufacturer’s declaration - Electromagnetic emissions The compact piezo LED is intended for use in the electromagnetic environment specified below. The customer or user of the compact piezo LED should ensure that it is used in such an environment.
  • Page 23 Guidance and manufacturer’s declaration - Electromagnetic immunity The compact piezo LED is intended for use in the electromagnetic environment specified below. The customer or user of the compact piezo LED should ensure that it is used in such an environment.
  • Page 24 Guidance and manufacturer’s declaration - Electromagnetic immunity The compact piezo LED is intended for use in the electromagnetic environment specified below. The customer or user of the compact piezo LED should ensure that it is used in such an environment. Immunity...
  • Page 25 LED The compact piezo LED is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the compact piezo LED can help prevent electromagnetic interference by maintaining a minimum distance between...

  • Page 26: Û Troubleshooting

    Turn on the water function on the dental chair The insert is not correctly Unscrew and correctly screw the tightened on the handpiece insert again with the Mectron torque wrench (see paragraph 04.4) Insert broken, worn-out, or Replace the insert with a new...

  • Page 27: Sending The Device To An Authorized Mectron Service Service

    • Product name • Serial number and/or lot number Clean and sterilize all the parts that need to be sent to an Authorized Mectron Service Center, • Reason for goods returned / description of following the instructions provided in Chapter the malfunction 06 - CLEANING AND STERILIZATION.

  • Page 28: Û Warranty

    Italian version will have pertinence. Texts, images, and graphics of this manual are property of Mectron S.p.A., Carasco, Italy. All rights reserved. The contents cannot be copied, distributed, changed, or made available to third parties without the written approval of...
  • Page 29 Mectron S.p.A. Via Loreto 15/A 16042 Carasco (Ge) Italy Tel. +39 0185 35361 Fax +39 0185 351374 www.mectron.com e-mail: mectron@mectron.com Reseller - Rivenditore - Wiederverkäufer - Revendeur - Revendedor...
