Buttons
S100 Power Button
S101 Volume Up
S102 Volume Down / Reset
3.8.22 LED Indicators – DS1, DS2, DS3, DS2320
There are four LEDs on the carrier board for indication purpose. Please refer to the table in below for their
respective functions.
LED Colour
DS1 Red
DS2 Blue
DS3 Green
Open-Q™ 212A Development Kit User Guide
Table 19 Buttons Function description (S100, S101, S102)
Function
System Power On, Standby
Increase volume
Decrease volume, hold to reset system (FW dependent)

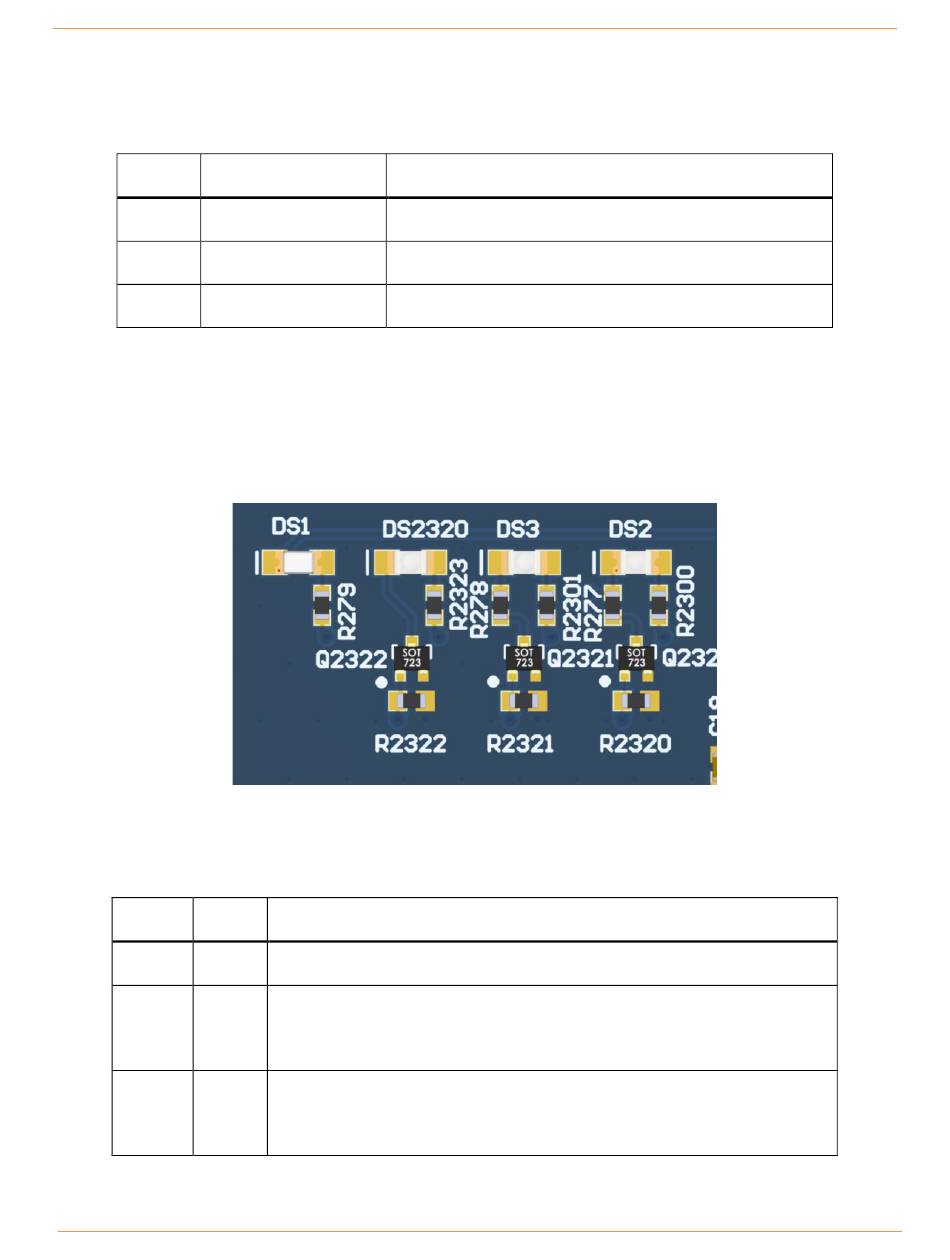

Figure 23 Indicator LEDs (DS1, DS2, DS3, DS2320)
Table 20 Indicator LEDs (DS1, DS2, DS3, DS2320)
PM8916-1 CHD_LED for charging indication
APQ GPIO_69 for general purpose
*PMIC MPP control is not available on the 212 Audio Kit
APQ GPIO_68 for general purpose
*PMIC MPP control is not available on the 212 Audio Kit
