3.7 Open-Q 212A SOM

The Open-Q 212A SOM measuring in 50mm x 46.5mm is where all the processing occurs. It is connected to
the carrier via three 100-pins board to board (B2B) connectors.
The SOM provides the basic common set of features with minimal integration efforts for end users.
It contains the following:
Qualcomm 212 (APQ8009) application processor
•
1GB LPDDR3 RAM
•
• 4GB eMMC Flash
• PM8916-1 PMIC for Peripheral LDOs, Boost Regulators, Battery Charging
• Pre-certified 802.11a/b/g/n/ac MU-MIMO Wi-Fi/BT Module (with Qualcomm
• Audio Codec (Qualcomm

3.7.1 Hardware Features

The Open-Q 212A SOM platform encompasses the following hardware features:
Feature Specification
Processor Qualcomm® 212 (APQ8009) built on 14nm technology
Open-Q™ 212A Development Kit User Guide
WCD9326)
®

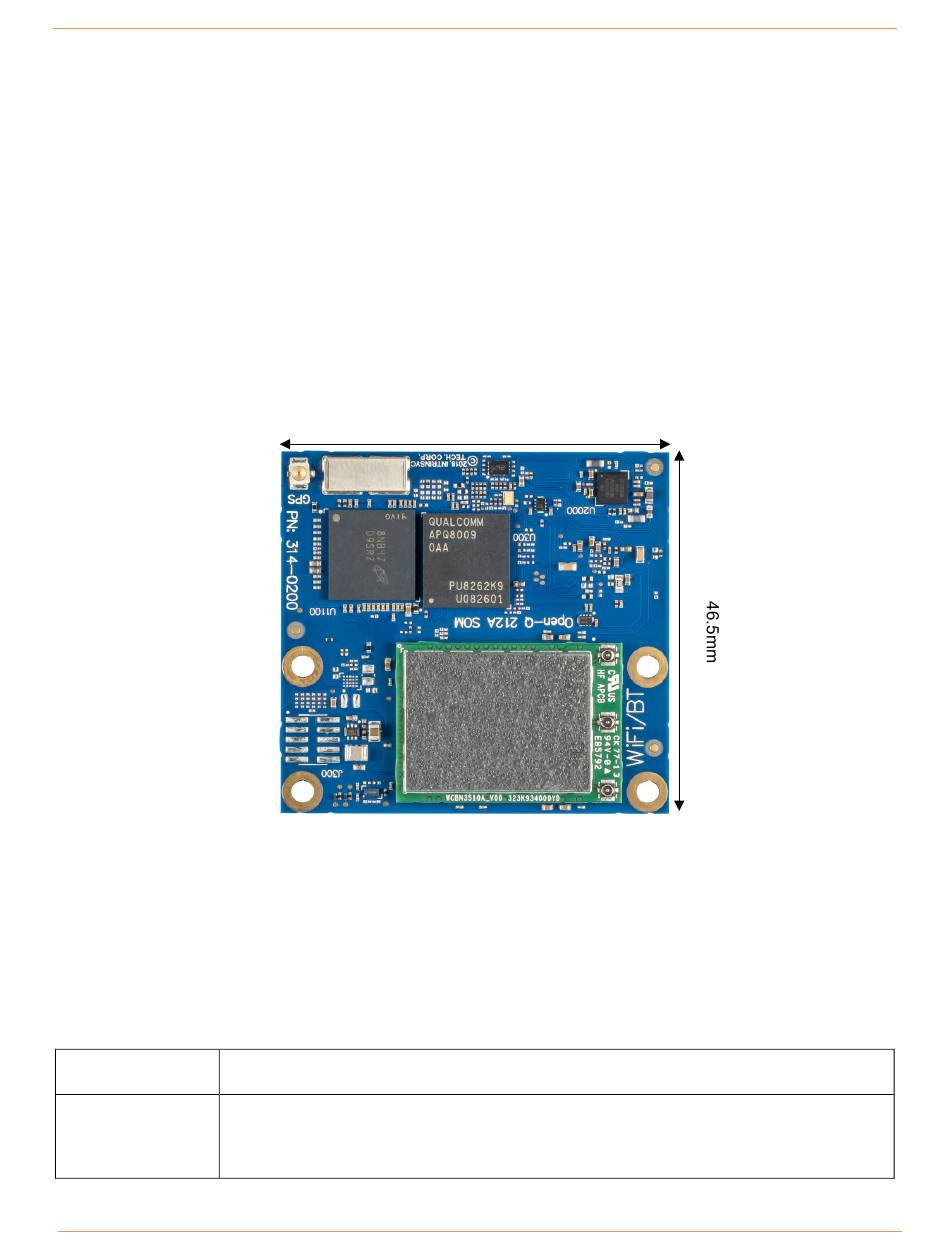

Figure 3 Open-Q 212A SOM
Table 1 Open-Q 212A SOM Features
• Octa-Core 32-bit ARM Cortex A7 1.3GHz, 512kB L2 cache
• Qualcomm® Adreno™ 304 GPU
• Qualcomm® QDSP6 DSP
50.0mm
Open-Q 212A Development Kit
QCA9379-3)
®
