UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Error messages
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. See the following table
to solve the problem. If any problem persists,
consult your nearest Sony dealer.
PROTECTOR
Irregular current is output to the speakers, or
upper panel of the receiver is covered with
something. The receiver will automatically
turn off after a few seconds. Check the
speaker connection and turn on the power
again.
For other messages, see "Message list after
Auto Calibration measurement" "DIGITAL
MEDIA PORT message list" and "SIRIUS
Satellite Radio message list".
If you are unable to remedy the
problem using the
troubleshooting guide
Clearing the receiver's memory may remedy
the problem. However, note that all
memorized settings will be reset to their initial
settings and you will have to readjust all
settings on the receiver.

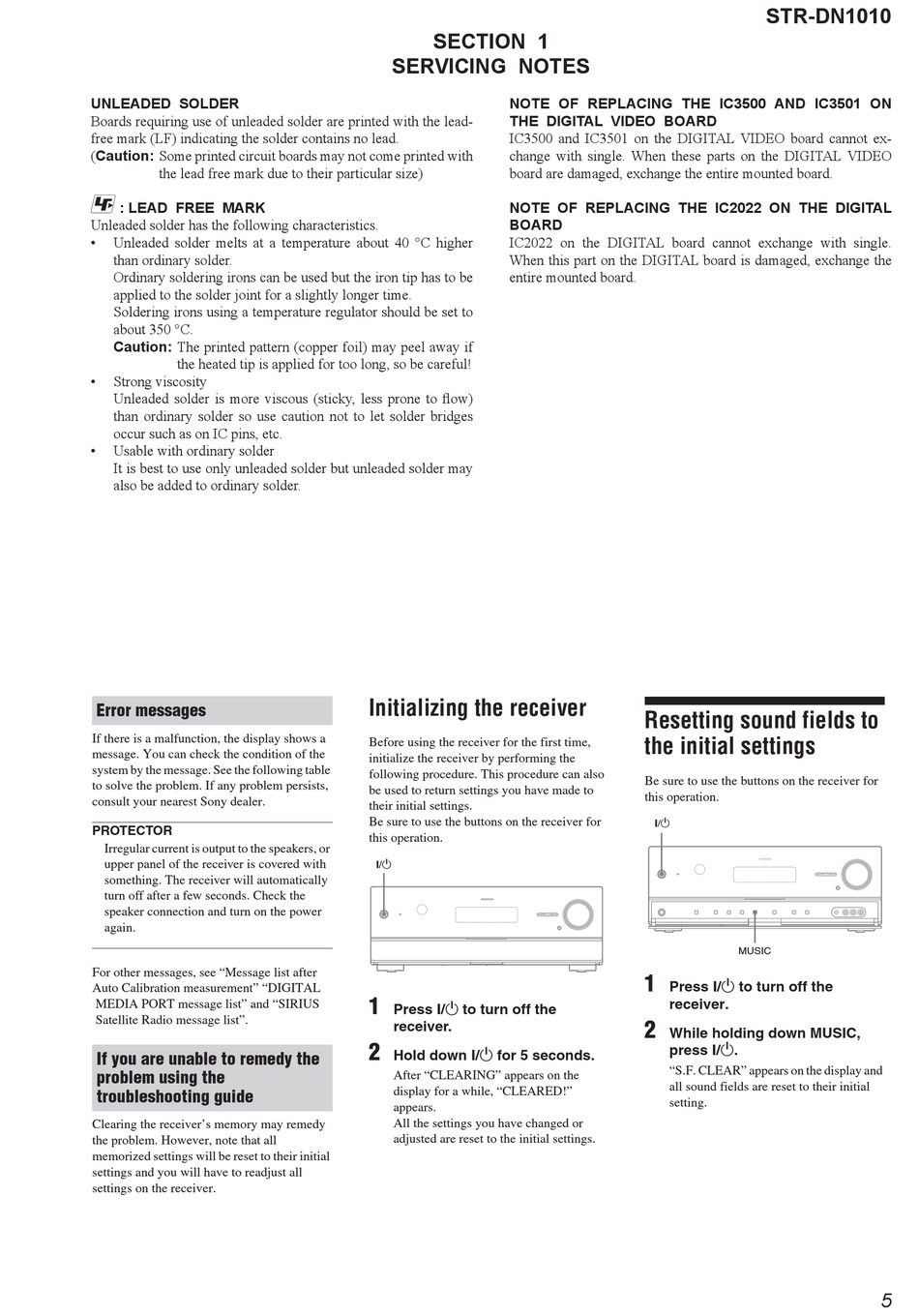

SECTION 1

SERVICING NOTES

NOTE OF REPLACING THE IC3500 AND IC3501 ON
THE DIGITAL VIDEO BOARD
IC3500 and IC3501 on the DIGITAL VIDEO board cannot ex-
change with single. When these parts on the DIGITAL VIDEO
board are damaged, exchange the entire mounted board.
NOTE OF REPLACING THE IC2022 ON THE DIGITAL
BOARD
IC2022 on the DIGITAL board cannot exchange with single.
When this part on the DIGITAL board is damaged, exchange the
entire mounted board.
Initializing the receiver
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their initial settings.
Be sure to use the buttons on the receiver for
this operation.
?/1
1
Press ?/1 to turn off the
receiver.
2
Hold down ?/1 for 5 seconds.
After "CLEARING" appears on the
display for a while, "CLEARED!"
appears.
All the settings you have changed or
adjusted are reset to the initial settings.
STR-DN1010
Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
?/1
MUSIC
1
Press ?/1 to turn off the
receiver.
2
While holding down MUSIC,
press ?/1.
"S.F. CLEAR" appears on the display and
all sound fields are reset to their initial
setting.
