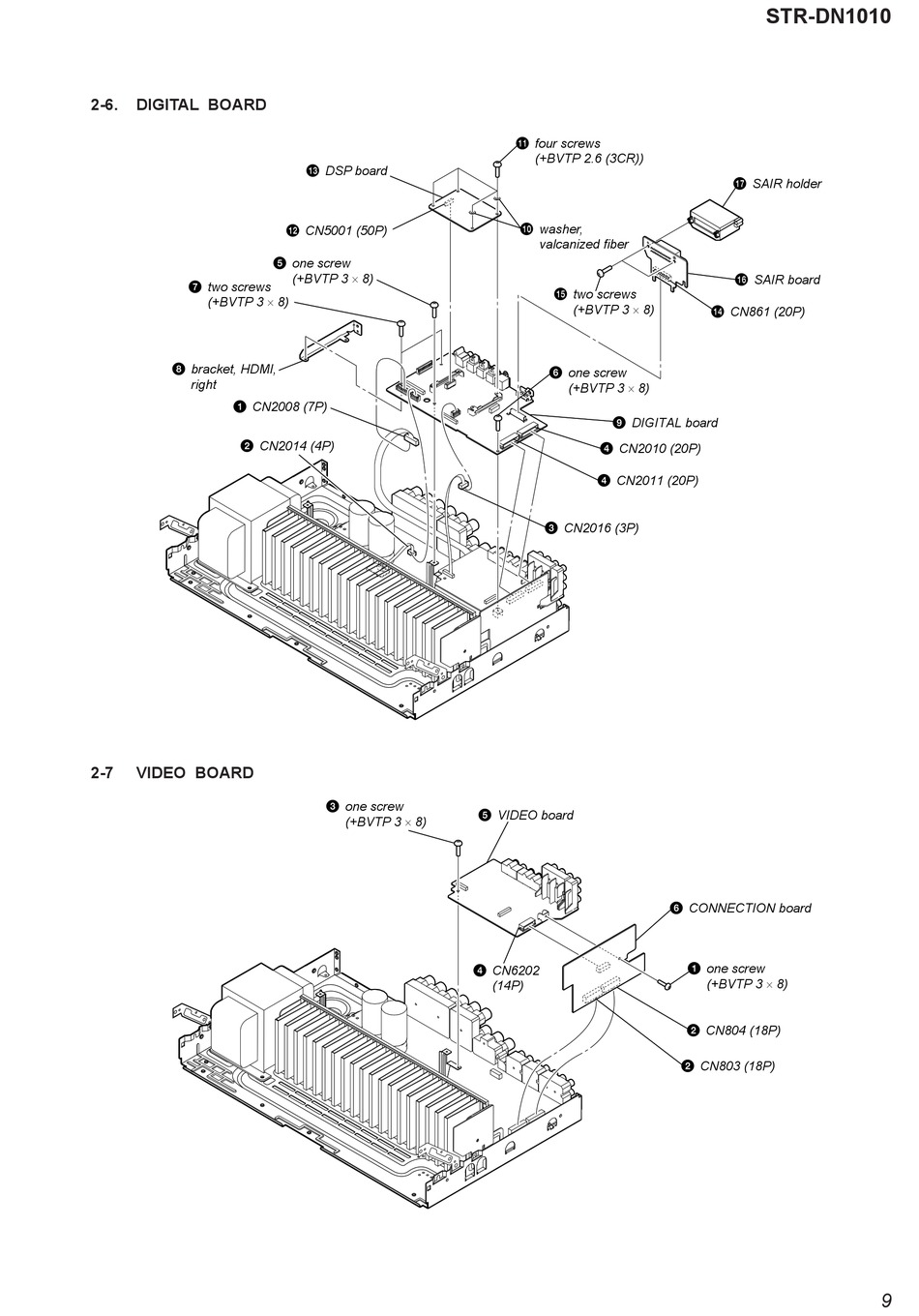

2-6.
DIGITAL BOARD
7 two screws
(+BVTP 3
8 bracket, HDMI,
right
1 CN2008 (7P)
2 CN2014 (4P)
2-7
VIDEO BOARD
qd DSP board
qs CN5001 (50P)
5 one screw
(+BVTP 3
8)
8)
3 one screw
(+BVTP 3
8)
qa four screws
(+BVTP 2.6 (3CR))
0 washer,
valcanized fiber
qg two screws
(+BVTP 3
8)
6 one screw
(+BVTP 3
8)
9 DIGITAL board
4 CN2010 (20P)
4 CN2011 (20P)
3 CN2016 (3P)
5 VIDEO board
4 CN6202
(14P)
STR-DN1010
qj SAIR holder
qh SAIR board
qf CN861 (20P)
6 CONNECTION board
1 one screw
(+BVTP 3
8)
2 CN804 (18P)
2 CN803 (18P)
9
