Front Panel Block - Sony STR-DN1010 Service Manual

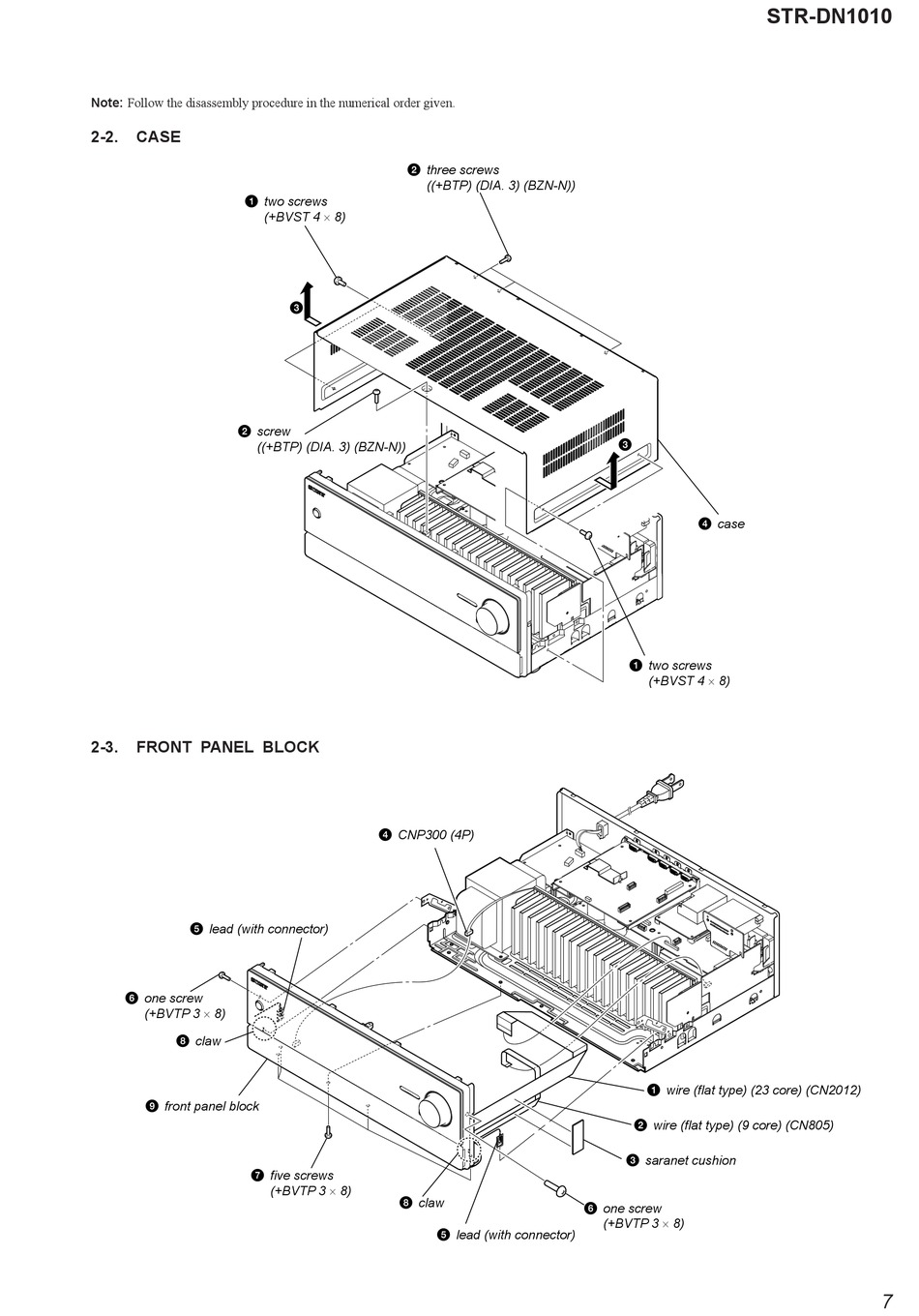

Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE
1 two screws
(+BVST 4
2 screw
((+BTP) (DIA. 3) (BZN-N))
2-3.

FRONT PANEL BLOCK

5 lead (with connector)
6 one screw
(+BVTP 3 8)
8 claw
9 front panel block
7 five screws
2 three screws
((+BTP) (DIA. 3) (BZN-N))
8)
3
4 CNP300 (4P)
(+BVTP 3 8)
8 claw
5 lead (with connector)
3
4 case
1 two screws
(+BVST 4 8)
1 wire (flat type) (23 core) (CN2012)
2 wire (flat type) (9 core) (CN805)
3 saranet cushion
6 one screw
(+BVTP 3 8)
STR-DN1010
7
