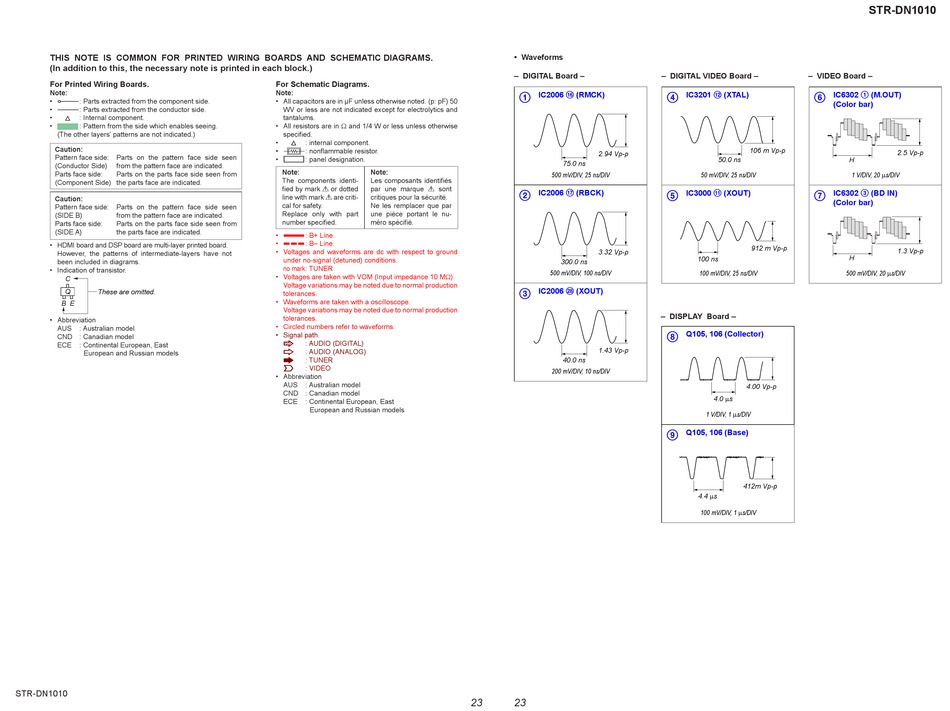

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : Parts extracted from the conductor side.
• f : Internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Parts on the pattern face side seen
(Conductor Side) from the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
Caution:
Pattern face side: Parts on the pattern face side seen
(SIDE B) from the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE A) the parts face are indicated.
• HDMI board and DSP board are multi-layer printed board.
However, the patterns of intermediate-layers have not
been included in diagrams.
• Indication of transistor.
C
Q
These are omitted.
B E
• Abbreviation
AUS : Australian model
CND : Canadian model
ECE : Continental European, East
European and Russian models
STR-DN1010
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in  and 1/4 W or less unless otherwise
specifi ed.
• f : internal component.
• 2 : nonfl ammable resistor.
• C : panel designation.
Note: Note:
The components identi- Les composants identifi és
fi ed by mark 0 or dotted par une marque 0 sont
line with mark 0 are criti- critiques pour la sécurité.
cal for safety. Ne les remplacer que par
Replace only with part une piéce portant le nu-
number specifi ed. méro spécifi é.
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
: AUDIO (DIGITAL)
J
: AUDIO (ANALOG)
F
f : TUNER
E : VIDEO
• Abbreviation
AUS : Australian model
CND : Canadian model
ECE : Continental European, East
European and Russian models
• Waveforms
– DIGITAL Board –
IC2006 qh (RMCK)
1
2.94 Vp-p
75.0 ns
500 mV/DIV, 25 ns/DIV
IC2006 qj (RBCK)
2
3.32 Vp-p
300.0 ns
500 mV/DIV, 100 ns/DIV
IC2006 wk (XOUT)
3
1.43 Vp-p
40.0 ns
200 mV/DIV, 10 ns/DIV
23 23
– DIGITAL VIDEO Board – – VIDEO Board –
IC3201 qs (XTAL) IC6302 1 (M.OUT)
4 6
(Color bar)
106 m Vp-p
50.0 ns
50 mV/DIV, 25 ns/DIV
IC3000 qa (XOUT) IC6302 3 (BD IN)
5 7
(Color bar)
912 m Vp-p
100 ns
100 mV/DIV, 25 ns/DIV
– DISPLAY Board –
Q105, 106 (Collector)
8
4.00 Vp-p
4.0 s
1 V/DIV, 1 s/DIV
Q105, 106 (Base)
9
412m Vp-p
4.4 s
100 mV/DIV, 1 s/DIV
STR-DN1010
2.5 Vp-p
H
1 V/DIV, 20 s/DIV
1.3 Vp-p
H
500 mV/DIV, 20 s/DIV
