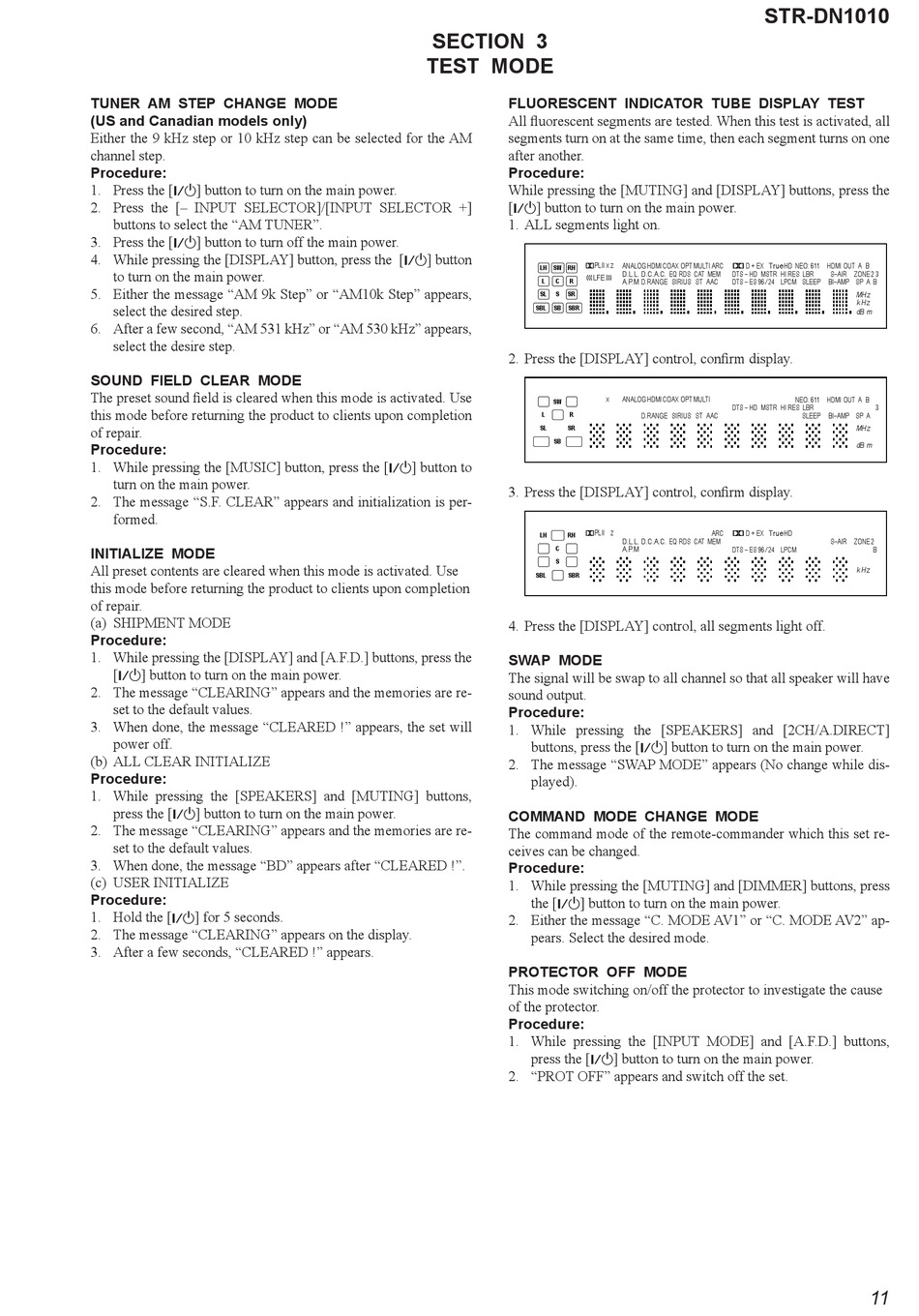

Test Mode - Sony STR-DN1010 Service Manual

TUNER AM STEP CHANGE MODE
(US and Canadian models only)
Either the 9 kHz step or 10 kHz step can be selected for the AM
channel step.
Procedure:
1. Press the [ ] button to turn on the main power.
?/1
2. Press the [– INPUT SELECTOR]/[INPUT SELECTOR +]
buttons to select the "AM TUNER".
3. Press the [ ] button to turn off the main power.
?/1
4. While pressing the [DISPLAY] button, press the [
to turn on the main power.
5. Either the message "AM 9k Step" or "AM10k Step" appears,
select the desired step.
6. After a few second, "AM 531 kHz" or "AM 530 kHz" appears,
select the desire step.
SOUND FIELD CLEAR MODE
The preset sound fi eld is cleared when this mode is activated. Use
this mode before returning the product to clients upon completion
of repair.
Procedure:
1. While pressing the [MUSIC] button, press the [
turn on the main power.
2. The message "S.F. CLEAR" appears and initialization is per-
formed.
INITIALIZE MODE
All preset contents are cleared when this mode is activated. Use
this mode before returning the product to clients upon completion
of repair.
(a) SHIPMENT MODE
Procedure:
1. While pressing the [DISPLAY] and [A.F.D.] buttons, press the
[ ] button to turn on the main power.
?/1
2. The message "CLEARING" appears and the memories are re-
set to the default values.
3. When done, the message "CLEARED !" appears, the set will
power off.
(b) ALL CLEAR INITIALIZE
Procedure:
1. While pressing the [SPEAKERS] and [MUTING] buttons,
press the [ ] button to turn on the main power.
?/1
2. The message "CLEARING" appears and the memories are re-
set to the default values.
3. When done, the message "BD" appears after "CLEARED !".
(c) USER INITIALIZE
Procedure:
1. Hold the [ ] for 5 seconds.
?/1
2. The message "CLEARING" appears on the display.
3. After a few seconds, "CLEARED !" appears.
SECTION 3

TEST MODE

FLUORESCENT INDICATOR TUBE DISPLAY TEST
All fl uorescent segments are tested. When this test is activated, all
segments turn on at the same time, then each segment turns on one
after another.
Procedure:
While pressing the [MUTING] and [DISPLAY] buttons, press the
[ ] button to turn on the main power.
?/1
1. ALL segments light on.
] button
?/1
LH SW RH
L C
SL S
SBL SB
2. Press the [DISPLAY] control, confi rm display.
SW
LH
L C
SL S
SBL SB
] button to
?/1
3. Press the [DISPLAY] control, confi rm display.
LH SW
L C
S
SL
SBL SB
4. Press the [DISPLAY] control, all segments light off.
SWAP MODE
The signal will be swap to all channel so that all speaker will have
sound output.
Procedure:
1. While pressing the [SPEAKERS] and [2CH/A.DIRECT]
buttons, press the [
2. The message "SWAP MODE" appears (No change while dis-
played).
COMMAND MODE CHANGE MODE
The command mode of the remote-commander which this set re-
ceives can be changed.
Procedure:
1. While pressing the [MUTING] and [DIMMER] buttons, press
the [
?/1
2. Either the message "C. MODE AV1" or "C. MODE AV2" ap-
pears. Select the desired mode.
PROTECTOR OFF MODE
This mode switching on/off the protector to investigate the cause
of the protector.
Procedure:
1. While pressing the [INPUT MODE] and [A.F.D.] buttons,
press the [
2. "PROT OFF" appears and switch off the set.
x z
PLII ANALOG HDMI COAX OPT MULTI ARC
D.L.L. D.C.A.C. EQ RDS CAT MEM DTS – HD
LFE
A.P.M D.RANGE SIRIUS ST AAC
R
SR
SBR
x z
PLII ANALOG HDMI COAX OPT MULTI ARC
RH
D.L.L. D.C.A.C. EQ RDS CAT MEM DTS – HD
LFE
R A.P.M D.RANGE SIRIUS ST AAC
SR
SBR
x z
PLII ANALOG HDMI COAX OPT MULTI ARC
RH
D.L.L. D.C.A.C. EQ RDS CAT MEM DTS – HD
LFE
R A.P.M D.RANGE SIRIUS ST AAC
SR
SBR
] button to turn on the main power.
?/1
] button to turn on the main power.
] button to turn on the main power.
?/1
STR-DN1010
D + EX True HD NEO: 611 HDMI OUT A B
MSTR HI RES LBR S–AIR ZONE 3
LPCM SLEEP BI–AMP SP A B
MHz
k Hz
dB m
D + EX True HD NEO: 611 HDMI OUT A B
MSTR HI RES LBR S–AIR ZONE 3
LPCM SLEEP BI–AMP SP A B
MHz
k Hz
dB m
D + EX True HD NEO: 611 HDMI OUT A B
MSTR HI RES LBR S–AIR ZONE 3
LPCM SLEEP BI–AMP SP A B
MHz
k Hz
dB m
