Heatsink Section - Sony STR-DN1010 Service Manual

6-5.

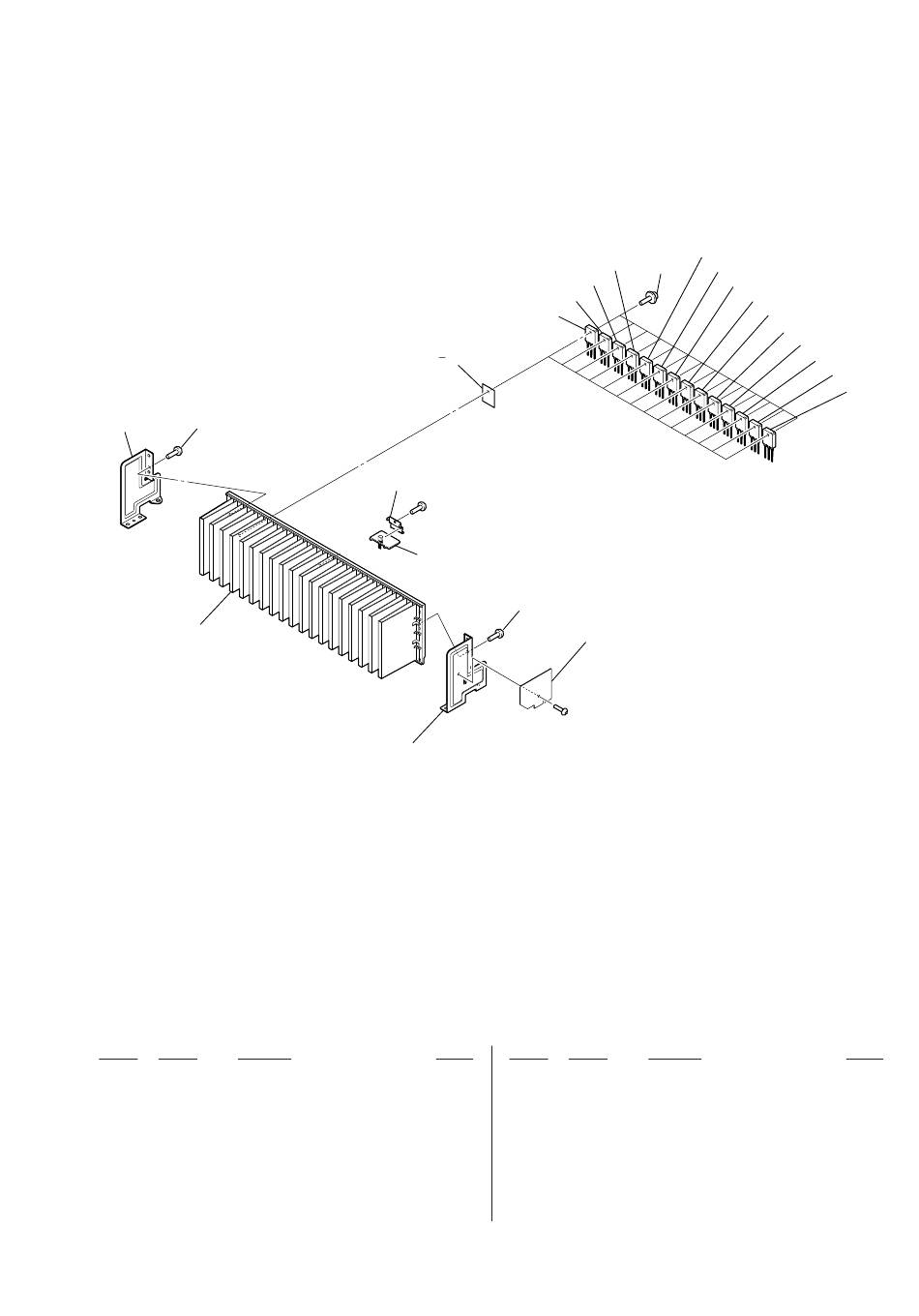

HEATSINK SECTION

#1
not supplied
not supplied
Ref. No. Part No. Description
201 3-905-609-32 SCREW (TRANSISTOR)
IC604 6-702-390-01 TRANSISTOR
IC605 6-702-391-01 TRANSISTOR
IC606 6-702-390-01 TRANSISTOR
IC607 6-702-391-01 TRANSISTOR
IC608 6-702-390-01 TRANSISTOR
IC609 6-702-391-01 TRANSISTOR
IC610 6-702-390-01 TRANSISTOR
IC611 6-702-391-01 TRANSISTOR
supplied with
IC604 IC617
not supplied
#1
not supplied
(THERMAL SENSOR board)
not supplied
Remark
MN2488-OPY-MK
MP1620-OPY-MK
MN2488-OPY-MK
MP1620-OPY-MK
MN2488-OPY-MK
MP1620-OPY-MK
MN2488-OPY-MK
MP1620-OPY-MK
201
IC616
IC617
IC614
IC615
#1
not supplied
(INSULATOR board)
#1
Ref. No. Part No. Description
IC612 6-702-390-01 TRANSISTOR
IC613 6-702-391-01 TRANSISTOR
IC614 6-702-390-01 TRANSISTOR
IC615 6-702-391-01 TRANSISTOR
IC616 6-702-390-01 TRANSISTOR
IC617 6-702-391-01 TRANSISTOR
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
STR-DN1010
IC611
IC610
IC607
IC606
IC613
IC612
IC609
IC608
IC605
IC604
Remark
MN2488-OPY-MK
MP1620-OPY-MK
MN2488-OPY-MK
MP1620-OPY-MK
MN2488-OPY-MK
MP1620-OPY-MK
79
