5-3.

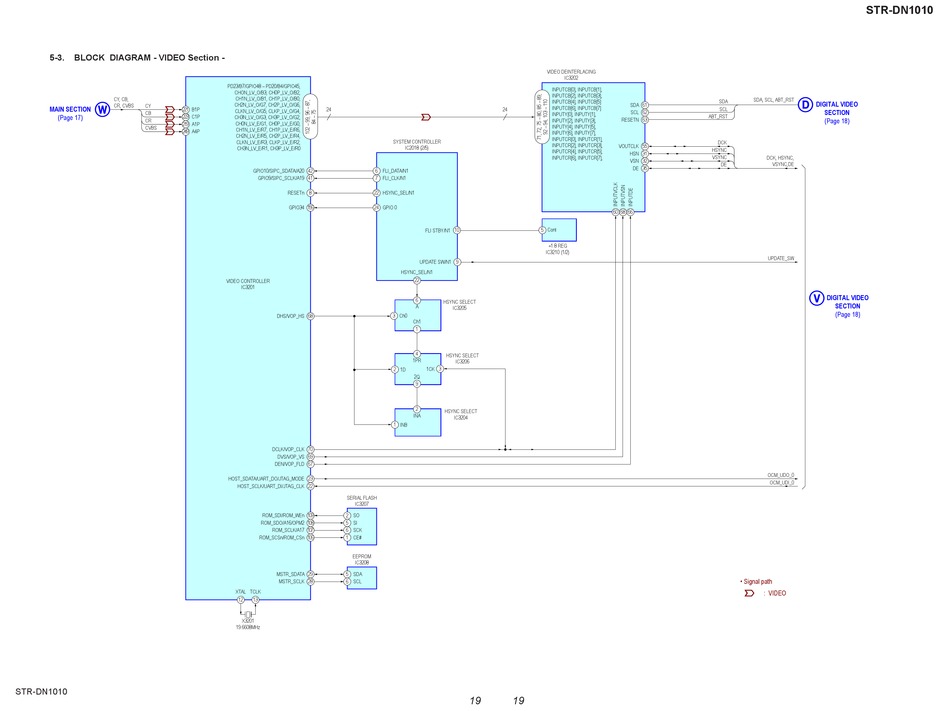

BLOCK DIAGRAM - VIDEO Section -

CY, CB,
CR, CVBS
CY
MAIN SECTION W
221 B1P
CB
(Page 17)
223 C1P
CR
219 A1P
CVBS
249 A4P
STR-DN1010
PD23/B7/GPIO48 – PD20/B4/GPIO45,
CHON_LV_O/B3, CH0P_LV_O/B2,
CH1N_LV_O/B1, CH1P_LV_O/B0,
CH2N_LV_O/G7, CH2P_LV_O/G6,
24
CLKN_LV_O/G5, CLKP_LV_O/G4,
CH3N_LV_O/G3, CH3P_LV_O/G2,
CH0N_LV_E/G1, CH0P_LV_E/G0,
CH1N_LV_E/R7, CH1P_LV_E/R6,
CH2N_LV_E/R5, CH2P_LV_E/R4,
CLKN_LV_E/R3, CLKP_LV_E/R2, SYSTEM CONTROLLER
CH3N_LV_E/R1, CH3P_LV_E/R0
GPIO10/SIPC_SDATA/A20 42 6 FLI_DATA/N1
GPIO9/SIPC_SCLK/A19 41 7 FLI_CLK/N1
RESETn 8 22 HSYNC_SEL/N1
GPIO34 156 24 GPIO 0
HSYNC_SEL/N1
VIDEO CONTROLLER
IC3201
DHS/VOP_HS 68 3 Ch0
2 1D
1 INB
DCLK/VOP_CLK 70
DVS/VOP_VS 69
DEN/VOP_FLD 67
HOST_SDATA/UART_DO/JTAG_MODE 23
HOST_SCLK/UART_DI/JTAG_CLK 22
SERIAL FLASH
IC3207
ROM_SDI/ROM_WEn 109 2 SO
ROM_SDO/A16/OPM2 108 5 SI
ROM_SCLK/A17 107 6 SCK
ROM_SCSn/ROM_CSn 106 CE#
1
EEPROM
IC3208
MSTR_SDATA 29 5 SDA
MSTR_SCLK 28 6 SCL
XTAL TCLK
12 13
X3201
19.6608MHz
VIDEO DEINTERLACING
IC3202
INPUTCB[0], INPUTCB[1],
INPUTCB[2], INPUTCB[3],
INPUTCB[4], INPUTCB[5]
INPUTCB[6], INPUTCB[7]
24
INPUTY[0], INPUTY[1],
INPUTY[2], INPUTY[3],
INPUTY[4], INPUTY[5],
INPUTY[6], INPUTY[7],
INPUTCR[0], INPUTCR[1],
INPUTCR[2], INPUTCR[3],
IC2018 (2/5)
INPUTCR[4], INPUTCR[5],
INPUTCR[6], INPUTCR[7],
10 5
FLI STBY/N1
+1.8 REG
IC3210 (1/2)
UPDATE SW/N1 9
22
6
HSYNC SELECT
A
IC3205
Ch1
1
4
HSYNC SELECT
1PR
IC3206
3
1CK
2Q
9
2
HSYNC SELECT
INA
IC3204
19 19
SDA, SCL, ABT_RST
SDA
SDA 61
SCL
SCL 62
ABT_RST
RESETN 63
DCK
VOUTCLK 55
HSYNC
HSN 31
VSYNC
DCK, HSYNC,
VSN 32
VSYNC,DE
DE
DE 35
60 68 66
UPDATE_SW
OCM_UDO_0
OCM_UDI_0
: VIDEO
STR-DN1010
DIGITAL VIDEO
D
SECTION
(Page 18)
DIGITAL VIDEO
V
SECTION
(Page 18)
