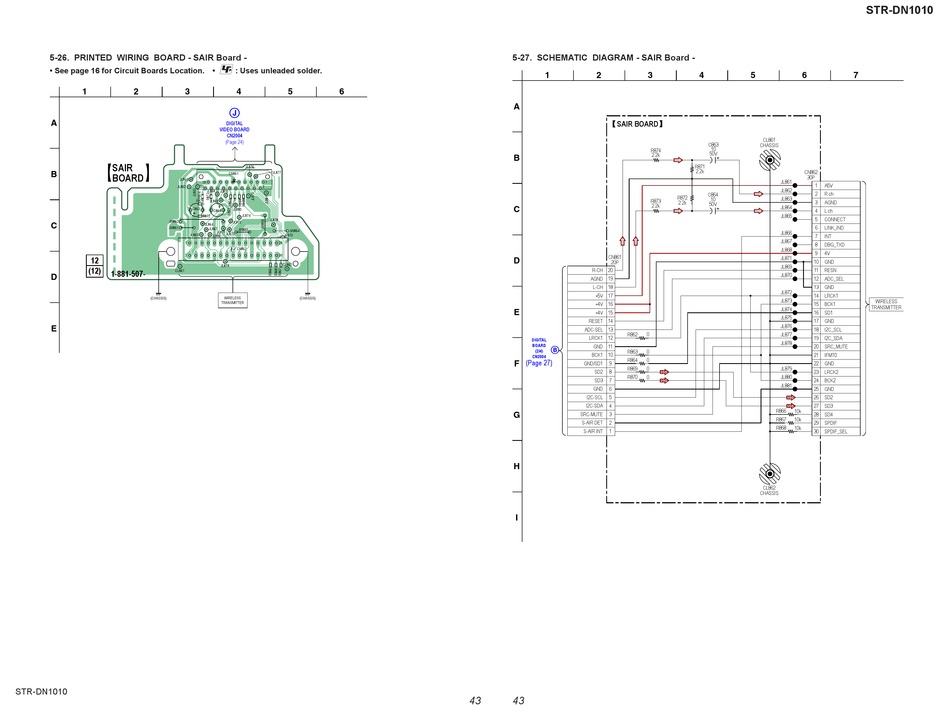

5-26. PRINTED WIRING BOARD - SAIR Board -

• See page 16 for Circuit Boards Location.
1 2 3
A
SAIR
B
BOARD
JL861
JL862
C863
JW862
C
JW861
JL865
1
2
12
(12)
1-881-507- CL861
D
(CHASSIS)
E
STR-DN1010
• : Uses unleaded solder.
4 5 6
DIGITAL
VIDEO BOARD
CN2004
(Page 24)
JL876
JL877
CN861
19 1
20 2
JL868 JL870
R871 JL869
JL880
C864
JL874
R872
JL878
JL872
JL864
JL867 JW863
JW864
JL871
JL873
R870
JL866
29
CN862
30
CL862
JL879
WIRELESS (CHASSIS)
TRANSMITTER

5-27. SCHEMATIC DIAGRAM - SAIR Board -

1 2 3
A
SAIR BOARD
B
C
CN861
D
20P
R-CH 20
AGND 19
L-CH 18
+5V 17
+4V 16
E
+4V 15
RESET 14
ADC-SEL 13
R862 0
LRCK1 12
DIGITAL
BOARD
GND 11
B
(2/4) R863 0
BCK1 10
CN2004
R864 0
(Page 27)
F GND/SD1 9
R869 0
SD2 8
R870 0
SD3 7
GND 6
I2C-SCL 5
I2C-SDA
4
G SRC-MUTE 3
S-AIR DET
2
S-AIR INT 1
H
I
43 43
4 5 6
CL861
C863 CHASSIS
10
R874
50V
2.2k
R871
2.2k
CN862
30P
JL861
1 A5V
JL862
2 R ch
C864
R872
JL863
10
R873
2.2k 3 AGND
50V
2.2k
JL864
4 L ch
JL865
5 CONNECT
6 LINK_IND
JL866
7 INT
JL867
8 DBG_TXD
JL868
9 4V
JL871
10 GND
JL869
11 RESN
JL870
12 ADC_SEL
13 GND
JL872
14 LRCK1
JL873
15 BCK1
JL874
16 SD1
JL875
17 GND
JL876
18 I2C_SCL
JL877
19 I2C_SDA
JL878
20 SRC_MUTE
21 IFMT0
22 GND
JL879
23 LRCK2
JL880
24 BCK2
JL881
25 GND
26 SD2
27 SD3
R866 10k
28 SD4
R867 10k
29 SPDIF
R868 10k
30 SPDIF_SEL
CL862
CHASSIS
STR-DN1010
7
WIRELESS
TRANSMITTER
