Front Panel Section - Sony STR-DN1010 Service Manual

STR-DN1010
6-2.

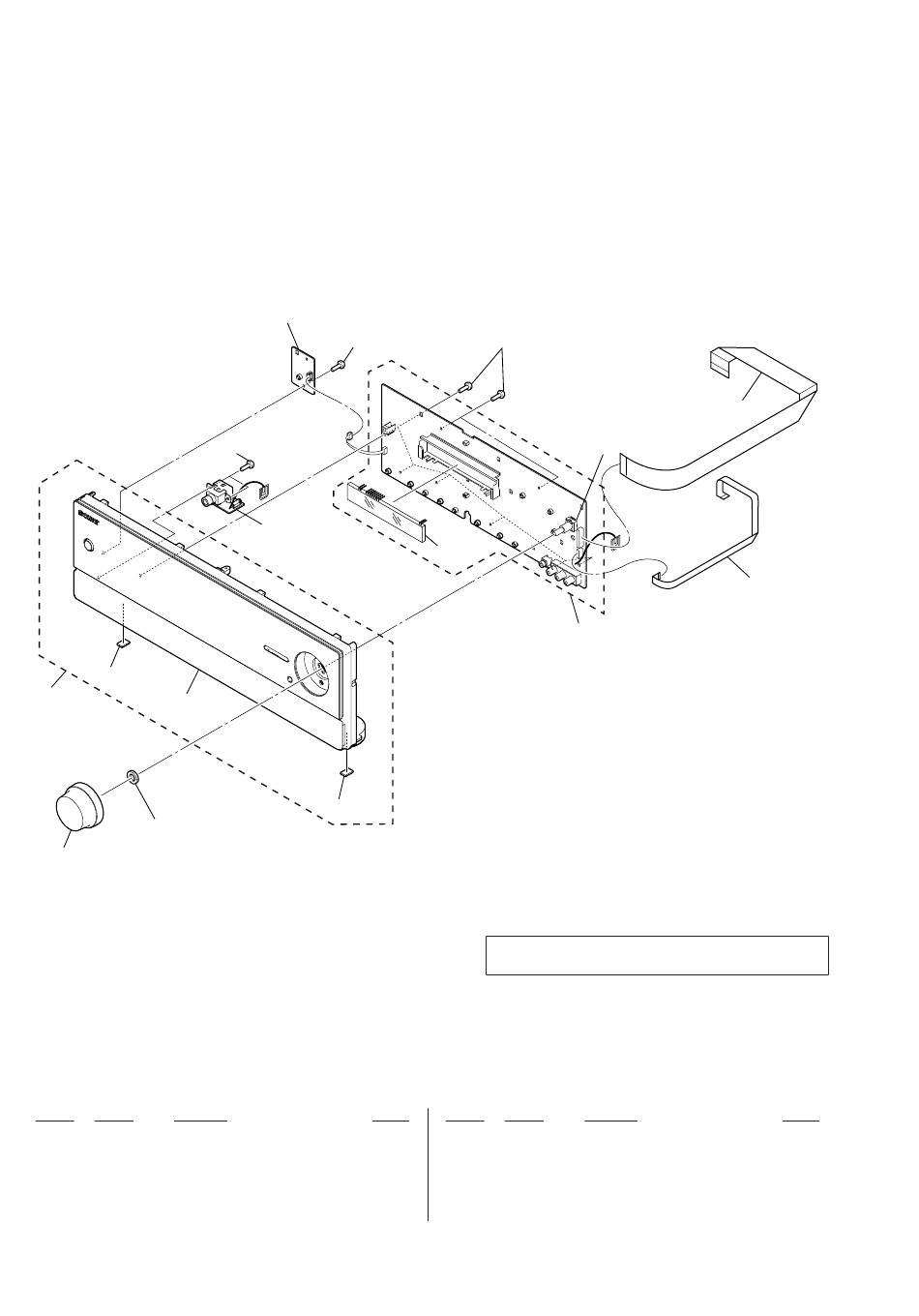

FRONT PANEL SECTION

53
not
52
supplied
supplied with RV102
51
Ref. No. Part No. Description
51 4-135-120-01 KNOB, VOLUME
52 X-2546-030-1 FRONT PANEL ASSY (US, CND)
52 X-2546-033-1 FRONT PANEL ASSY (UK, AUS, ECE)
53 4-977-358-01 CUSHION
54 3-087-053-01 +BVTP2.6 (3CR)
76
not supplied
(POWER KEY board)
54
54
not supplied
(HEADPHONE board)
53
Remark
54
RV102
ND101
57
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Ref. No. Part No. Description
55 1-828-384-11 WIRE (FLAT TYPE) (23 CORE)
56 1-828-312-51 WIRE (FLAT TYPE) (9 CORE)
57 A-1755-474-A DISPLAY BOARD, COMPLETE
ND101 1-483-118-11 VACUUM FLOURESCENT DISPLAY
RV102 1-418-725-41 ENCODER, ROTARY (12 TYPE)
55
56
Remark
(MASTER VOLUME)
