AX6000M

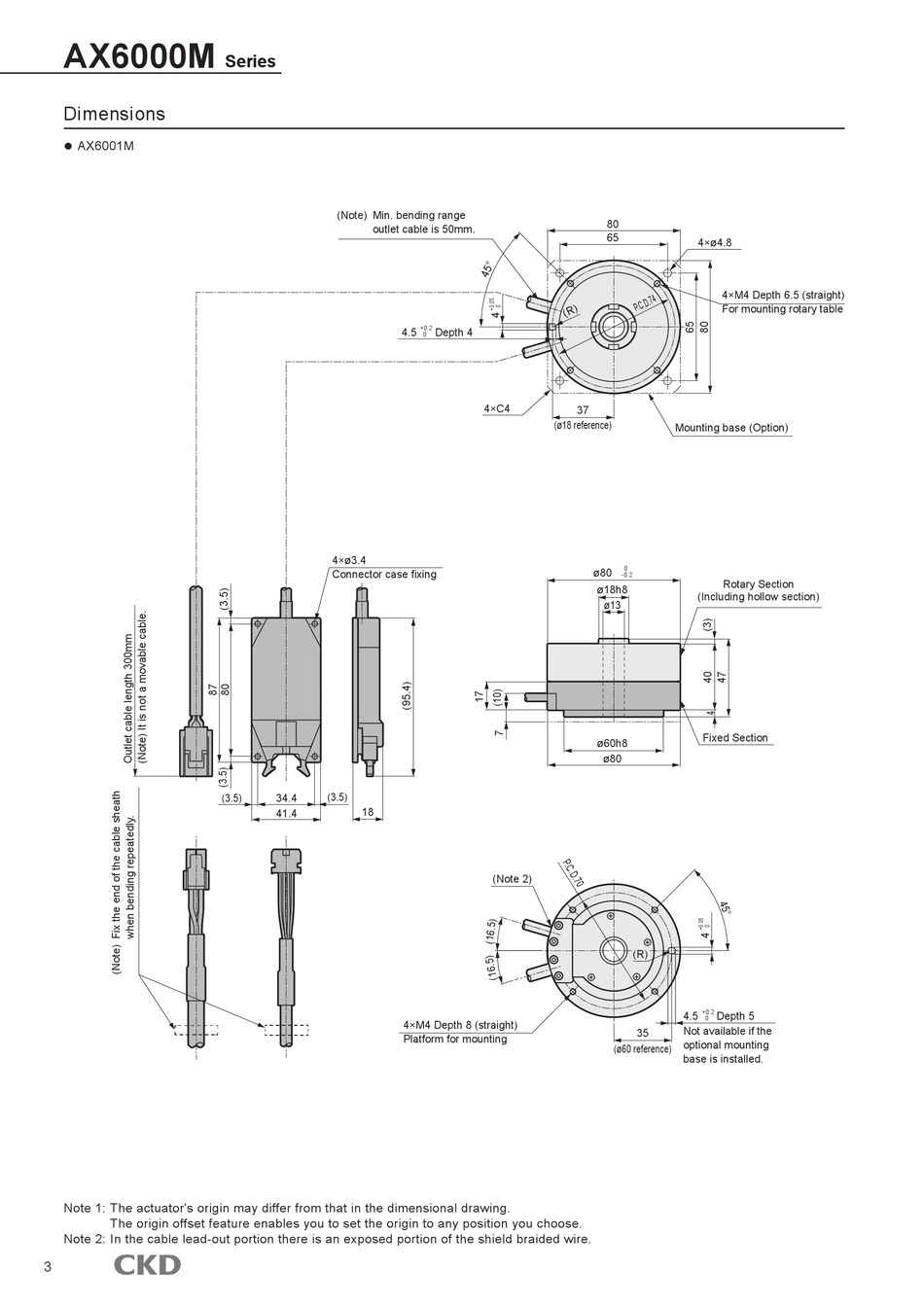

Dimensions
 AX6001M
Note 1: The actuator's origin may differ from that in the dimensional drawing.
The origin offset feature enables you to set the origin to any position you choose.
Note 2: In the cable lead-out portion there is an exposed portion of the shield braided wire.
3
Series
(Note) Min. bending range
outlet cable is 50mm.
4×ø3.4
Connector case fixing
(3.5)
(3.5) 34.4
18
41.4
+0.2
4.5 Depth 4
0
4×C4
(ø18 reference)
(Note 2)
4×M4 Depth 8 (straight)
Platform for mounting
80
65
4×ø4.8
4×M4 Depth 6.5 (straight)
For mounting rotary table
37
Mounting base (Option)
0
ø80
-0.2
Rotary Section
ø18h8
(Including hollow section)
ø13
Fixed Section
ø60h8
ø80
(R)
4.5 Depth 5 +0.2
0
Not available if the
35
optional mounting
(ø60 reference)
base is installed.
