CKD ABSODEX MINI AX6000M Series Manual page 11

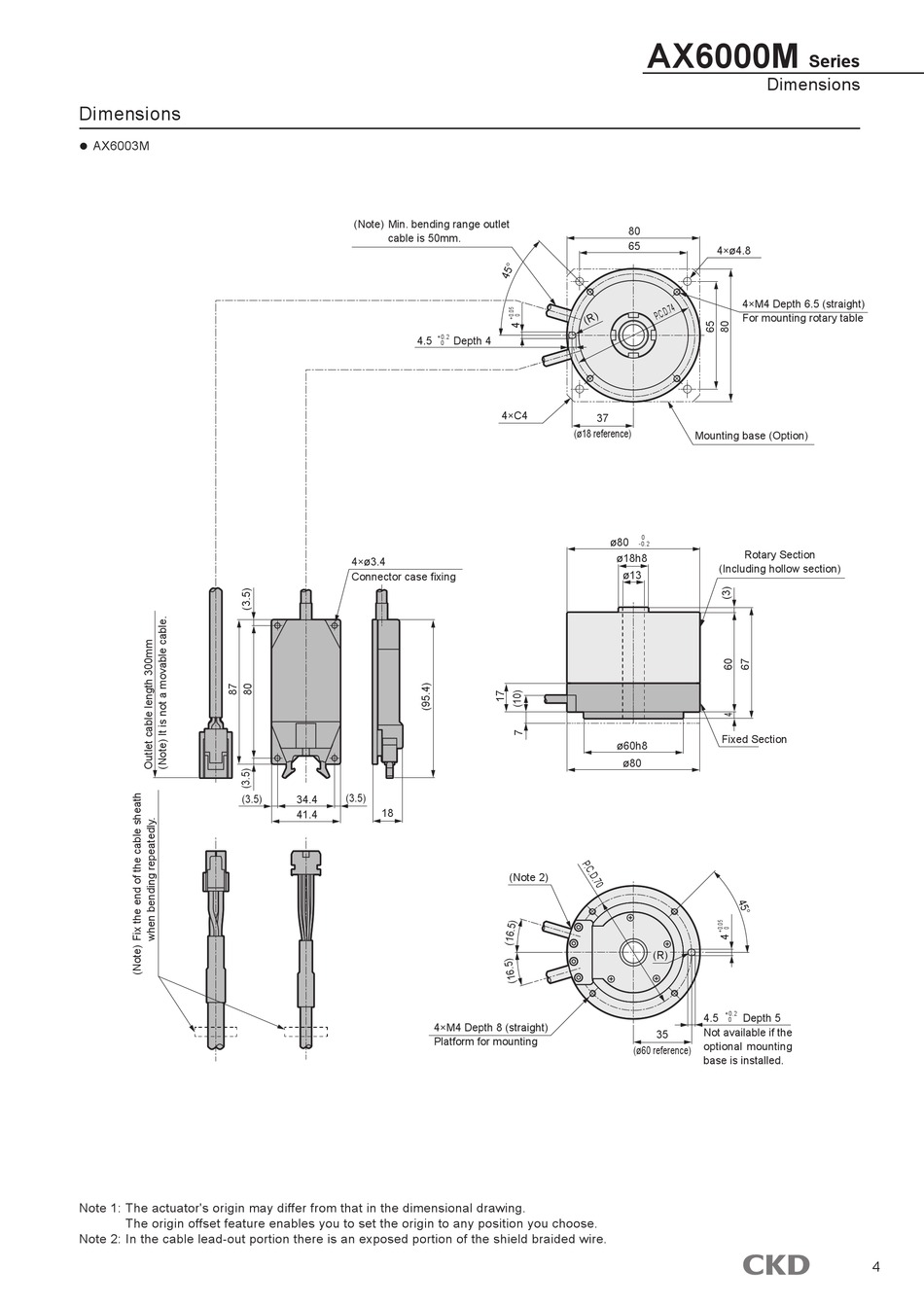

Dimensions
 AX6003M
(3.5)
Note 1: The actuator's origin may differ from that in the dimensional drawing.
The origin offset feature enables you to set the origin to any position you choose.
Note 2: In the cable lead-out portion there is an exposed portion of the shield braided wire.
(Note) Min. bending range outlet
cable is 50mm.
+0.2
4.5 Depth 4
0
4×ø3.4
Connector case fixing
(3.5)
34.4
18
41.4
4×M4 Depth 8 (straight)
Platform for mounting
AX6000M
80
65
4×C4
37
(ø18 reference)
0
ø80
-0.2
ø18h8
ø13
ø60h8
ø80
(Note 2)
(R)
35
(ø60 reference)
Series
Dimensions
4×ø4.8
4×M4 Depth 6.5 (straight)
For mounting rotary table
Mounting base (Option)
Rotary Section
(Including hollow section)
Fixed Section
+0.2
4.5 Depth 5
0
Not available if the
optional mounting
base is installed.
4
