CKD ABSODEX MINI AX6000M Series Manual page 16

AX
Series
Selection guide

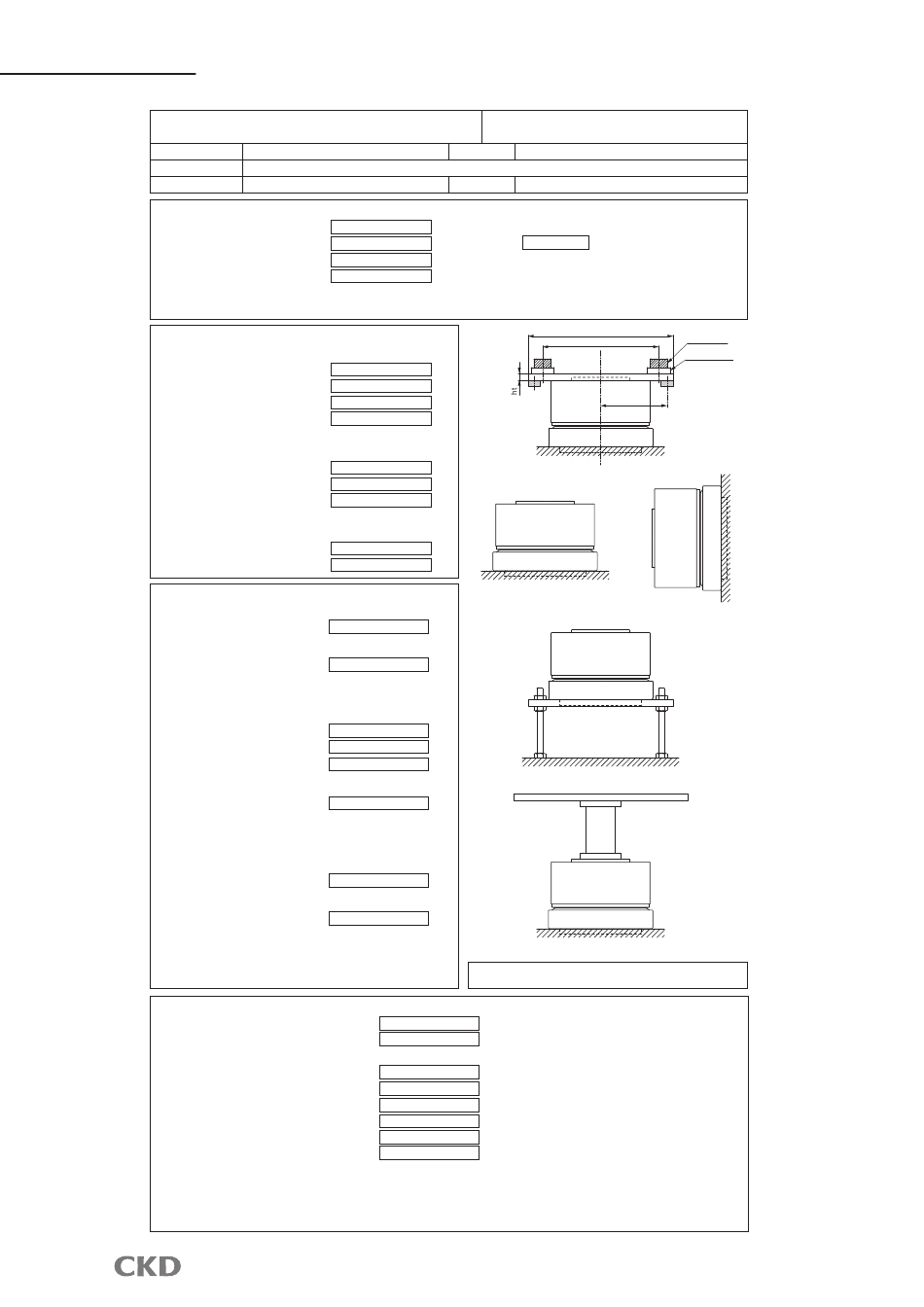

ABSODEX selection guide specifications check sheet
Your company name
Division
TEL
■ Operating conditions
1. Index 2. Oscillator
Movement angle Ψ (°)
Movement time
Cycle time
(Note) Index time is movement time + settling time.
The settling time differs according to the working condition, but generally is between 0.025 and 0.2s.
■ Load conditions
Table
Material
Outline
Plate thickness ht(mm)
Weight
Workpiece
Quantity nw (pc.)
Max. weight mw (kg/pc.)
Installation center Dp(mm)
Pallet fixture
Quantity np (pc.)
Max. weight mp (kg/pc.)
■ Others
Installation attitude
1. Horizontal (Fig.2) 2.Vertical (Fig. 3)
Extemal job
1. None
(Note) Eccentric load caused by gravity from vertical
installation, extemal load caused by caulking work.
Dial plate support form bottom
1. None
Coefficient of friction μ
Work radius
Device rigidity
1. High
(Note) When using a spline, when unit cannot be fixed
directly onto the device (Fig. 4), when there is
a mechanism such as a chuck on the table.
Extension with table shaft
1. None
Actuator movement
1. None
(Note) When actuator is mounted on X-Y table or vertical
mechanism, etc., and mounted actuator moves.
(Note) If 2 is selected for any item, contact CKD.
■ Use conditions, environmental conditions (Optional)
Actuator ambient temperature (°C)
Motor cable length (m)
Driver ambient temperature (°C)
DC24V power supply cable length (m)
DC24V power supply coil diameter (mm
DC24V power supply voltage accuracy (%)
DC24V line point of contact quantity (pc.)
DC24V line point of contact resistance (MΩ / pc.)
* You can do a more rigorous selection by filling in this field.
* With a power supply cable 1.25mm² or more, please use one as short (recommended length 1m or less) as possible.
* If the output voltage is low in a power supply with voltage adjustment, please adjust it to 24V and use it.
9
Table direct drive
t1 (sec.)
t0 (sec.)
1. Steel 2. Aluminum
Dt(mm)
m1(kg)
2. available
2. available
Rf(mm)
2. Low (Note)
2. available (Fig. 5)
2. available
)
2
(Note) Contact CKD for chain drives and gear drives.
Your name
FAX
or no. of indexes
cycle time=moving time+dwelling time
Dt
Dp
(Fig. 1) Load conditions
(Fig. 2) Installation orientation: Horizontal
(Fig. 4) Installation rigidity: Low
(Fig. 5) Extension with shaft
(Note) Attach system outline and reference drawings so that the
optimal model can be selected.
Workpiece
Pallet fixture
μ
Rf
(Fig. 3) Installation orientation: Vertical
