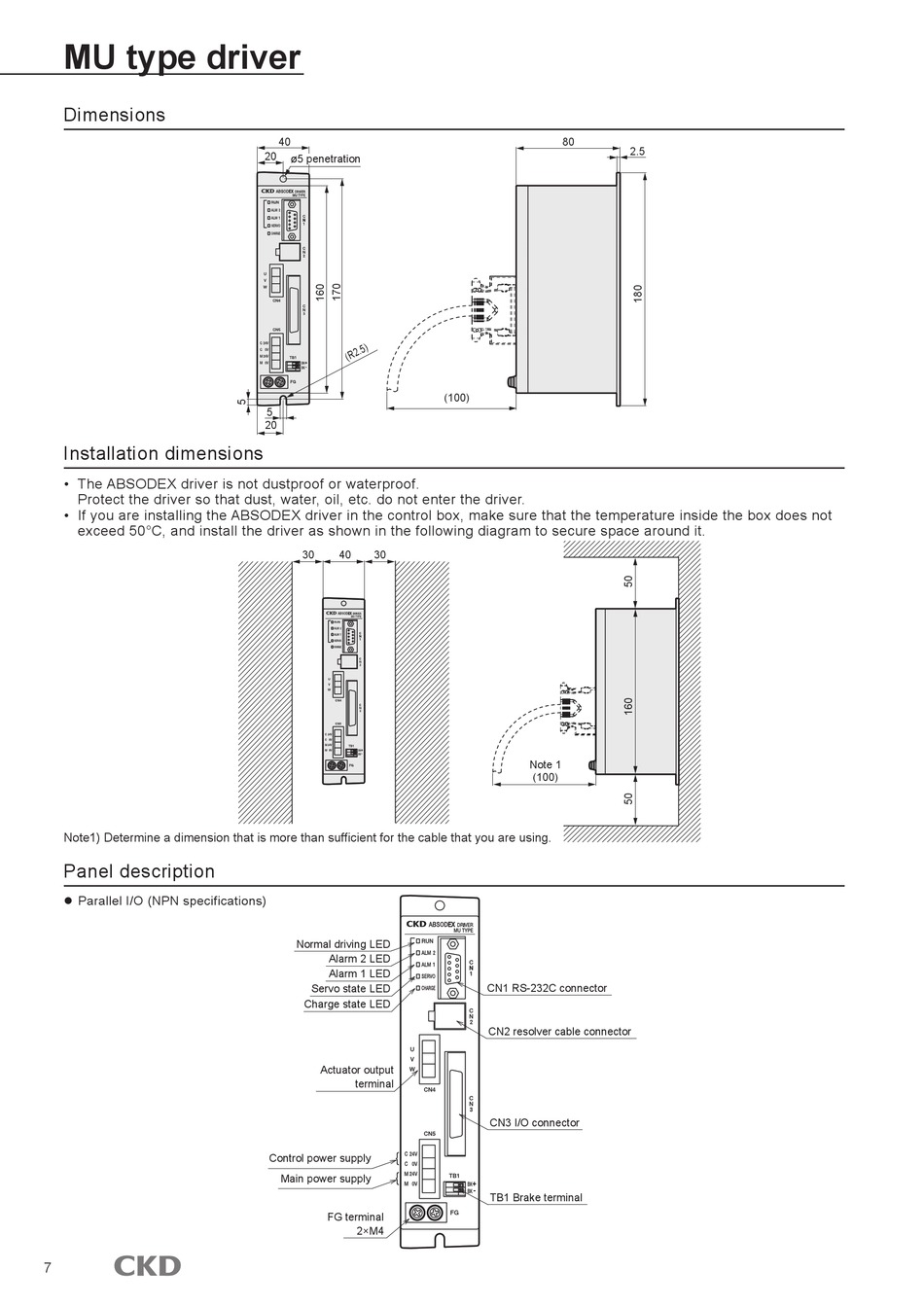

MU type driver
Dimensions
Installation dimensions
• The ABSODEX driver is not dustproof or waterproof.
Protect the driver so that dust, water, oil, etc. do not enter the driver.
• If you are installing the ABSODEX driver in the control box, make sure that the temperature inside the box does not
exceed 50°C, and install the driver as shown in the following diagram to secure space around it.
Note1) Determine a dimension that is more than sufficient for the cable that you are using.
Panel description
Parallel I/O (NPN specifications)
7
40
20
ø5 penetration
5
20
30
40
30
Normal driving LED
Alarm 2 LED
Alarm 1 LED
Servo state LED
Charge state LED
Actuator output
terminal
Control power supply
Main power supply
FG terminal
2×M4
80
(100)
Note 1
(100)
CN1 RS-232C connector
CN2 resolver cable connector
CN3 I/O connector
TB1 Brake terminal
2.5
