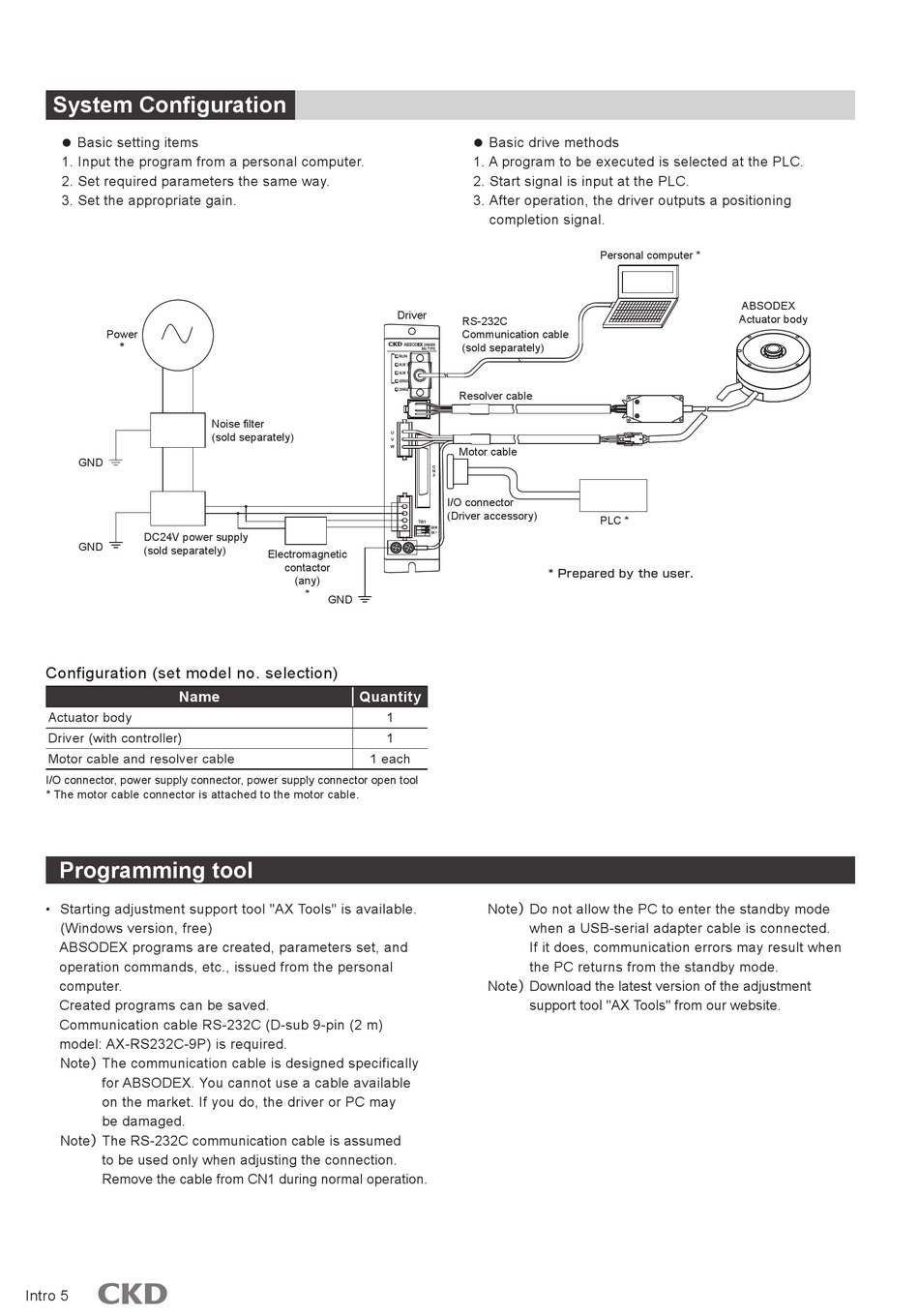

System Configuration
 Basic setting items
1. Input the program from a personal computer.
2. Set required parameters the same way.
3. Set the appropriate gain.
Power
*
GND
DC24V power supply
GND
(sold separately)
Configuration (set model no. selection)
Name
Actuator body
Driver (with controller)
Motor cable and resolver cable
I/O connector, power supply connector, power supply connector open tool
* The motor cable connector is attached to the motor cable.
Programming tool
• Starting adjustment support tool "AX Tools" is available.
(Windows version, free)
A BSODEX programs are created, parameters set, and
operation commands, etc., issued from the personal
computer.
Created programs can be saved.
Communication cable RS-232C (D-sub 9-pin (2 m)
model: AX-RS232C-9P) is required.
Note） The communication cable is designed specifically
for ABSODEX. You cannot use a cable available
on the market. If you do, the driver or PC may
be damaged.
Note） The RS-232C communication cable is assumed
to be used only when adjusting the connection.
Remove the cable from CN1 during normal operation.
Intro 5
Noise filter
(sold separately)
Electromagnetic
contactor
(any)
*
GND
Quantity
1 each
 Basic drive methods
1. A program to be executed is selected at the PLC.
2. Start signal is input at the PLC.
3. After operation, the driver outputs a positioning
completion signal.
Driver
RS-232C
Communication cable
(sold separately)
Resolver cable
Motor cable
I/O connector
(Driver accessory)
* Prepared by the user.
1
1
Note） Do not allow the PC to enter the standby mode
when a USB-serial adapter cable is connected.
If it does, communication errors may result when
the PC returns from the standby mode.
Note） Download the latest version of the adjustment
support tool "AX Tools" from our website.
Personal computer *
ABSODEX
Actuator body
PLC *
