Du Pont Cyrel FAST 2000TD Operation Manual page 98

B-6

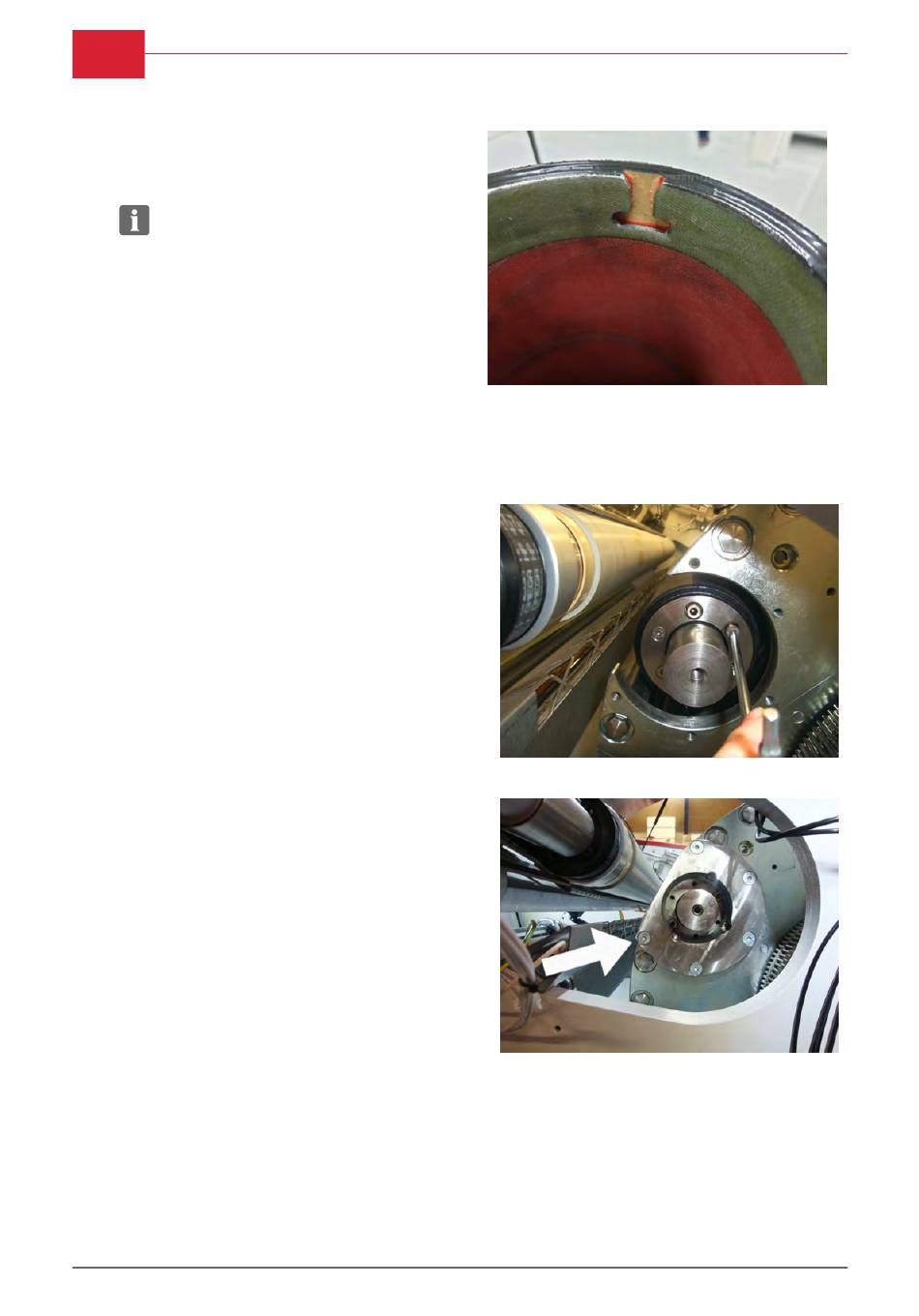

23. Position the slip fit adapter onto the format
cylinder so that when it is fully pushed onto
the format cylinder, the pin and slot engage.
NOTE: Please note that the type of slot in
the slip fit adapter may vary to that shown
according to the current specification at the
time of delivery.
24. Rotate the slip fit adapter in the clockwise
direction a few degrees until the slip fit
adapter rotation stops. This indicates that the
pin is fully engaged in the slot.
25. Turn the pressure off.
26. Dismount the air hose assembly from the
format cylinder and the air switch.
27. Mount the 4 screws in the slip fit adapter's
fixation ring.
28. Mount the format cylinders support bracket.
Use the allen key No 5.
