1-2

Processing description

The plate is placed on the feed table and moved down to activate the load switches on the stamping bar.
When the 'Start' button is pushed and the plate loads into the processor the processing of the plate starts
and the number of processing cycles defined for the chosen program will be executed.
A visual check through the window in the top cover will determine whether the plate is positioned, and
runs, correctly. If for any reason the plate is not positioned/attached correctly, it is possible to stop the
process, exit the plate and reposition and restart the process. For detailed instructions please refer to
"Operation procedures" on page 2-1.

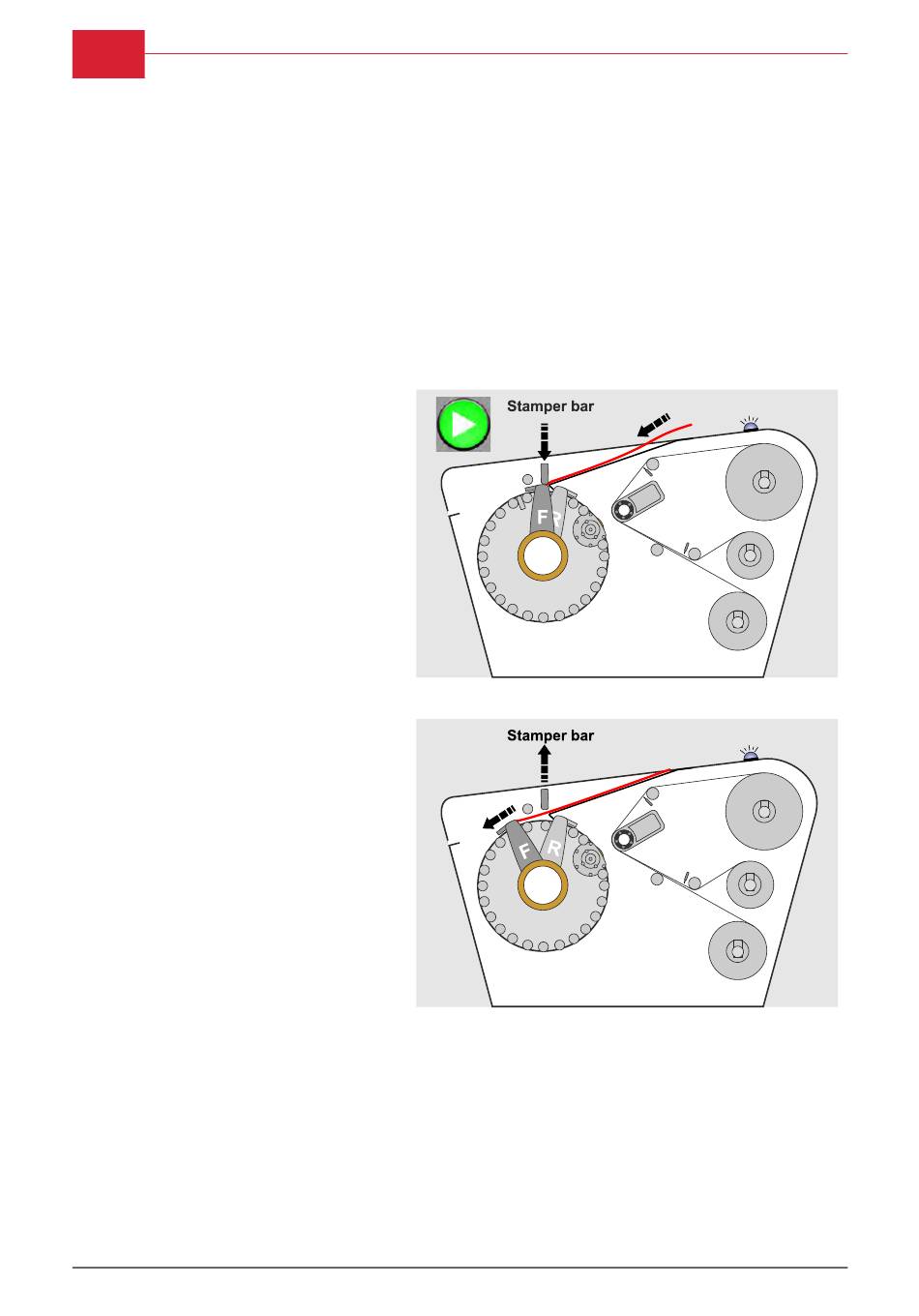

When the plate enters the processor:
The stamper bar will press the front
edge of the plate into the front clamp
bar while at the same time the plate
front-stops will retract.
The stamper bar will lift away from the
plate surface.
The front clamp arm will rotate around
the static drum pulling the plate into
the processor.
Operation Manual|Cyrel FAST 2000TD
Functional description
January, 2020
