Feed And Exit - Du Pont Cyrel FAST 2000TD Operation Manual

Functional description
1-6

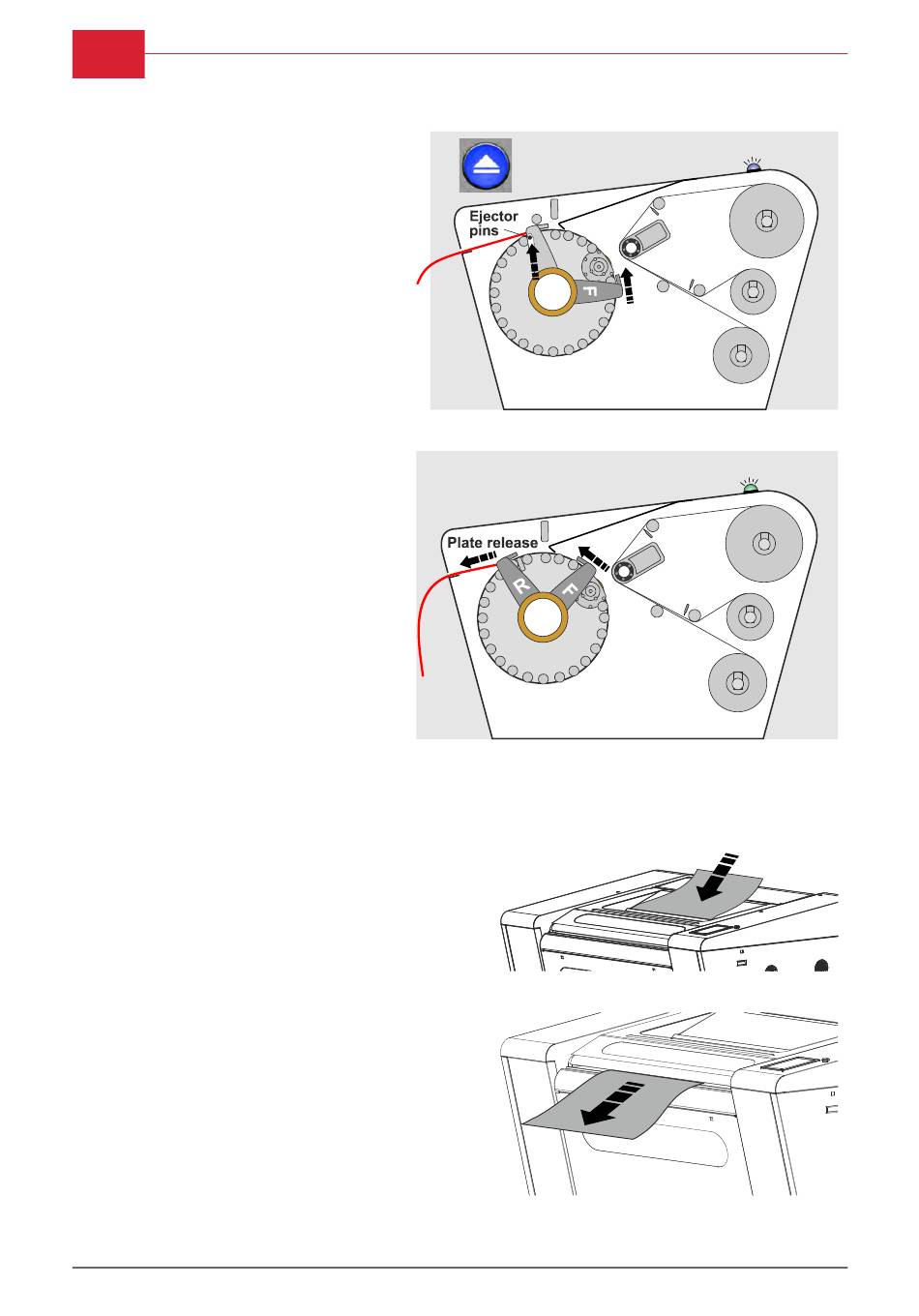

The plate will continue to exit the
processor until the rear clamp arm
stops in the eject position.
The control panel will now display the
blue 'Eject' button.
At this point, and to avoid the plate
from falling onto the floor, the operator
must take hold of the plate and then
manually activate the eject function.
The ejector pins will activate upwards
and pass through the holes in the
clamp bars pushing the plate away
from the pins and detaching it.
The plate will now be completely
released from the clamp bar and can
be removed from the exit slot.
Once the plate has been fully ejected
from the processor, both clamp arms
will automatically return to their
respective load positions ready for the
next plate.

Feed and exit

The plate feed is done manually via the feed table.
For correct feeding of the plates, the feed table is
equipped with small guides. When the plate enters
the processor, it is detected by feed sensors, and
then automatic clamping and transport take over.
When the processing is complete the plate
automatically exits through the exit slot.
