Maintenance

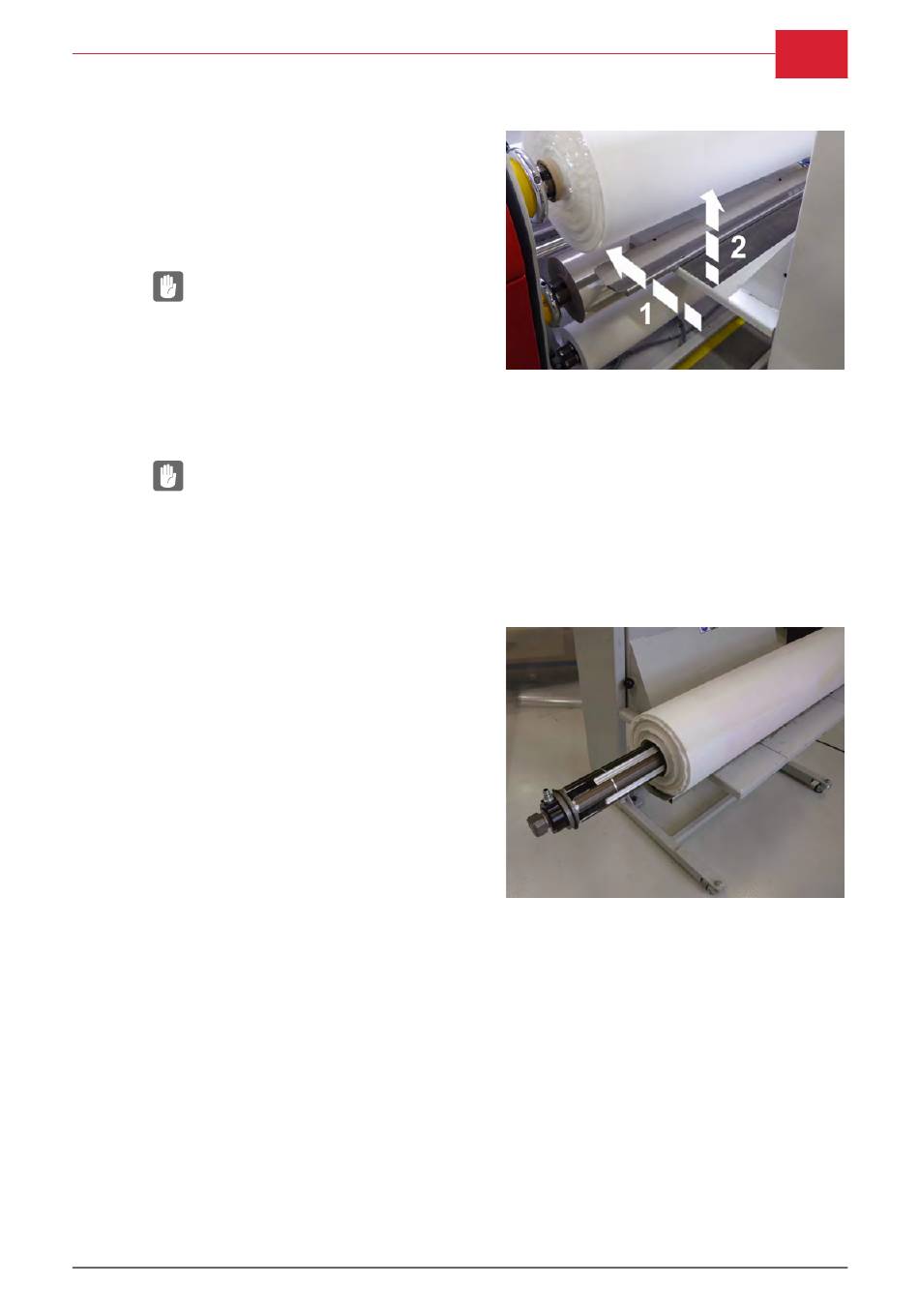

8. Guide the lifting device into position between
the 2 rollers underneath the rear of the
machine. Place the lift table close to the waste
roll (1).
9. Adjust the table height (2) to allow the lift table
to slide underneath the roll.
CAUTION: Be very careful not to
damage any parts inside the processor,
when pushing the lift table into the
processor and when placing the lift
table underneath a roll in the processor.
10. Place the lift table underneath the roll until the
roll is right above the positioning guide on the
lift table.
CAUTION: Be very careful not to
damage any parts inside the processor
when lifting the roll.
11. Use the handle on the lift table to raise the
table until the roll/air shaft is detached and
clear of the chuck bearings, and resting in the
positioning guide.
12. Pull back the lift table.
13. Lift up the support on the front of the lift table,
to prevent the roll from falling off during
transport
14. Transport the roll away from the processor.
15. Pull out the air shaft.
16. Remove the full waste roll from the lift table.
17. Insert the air shaft into an empty waste roll.
