Functional description
1-3

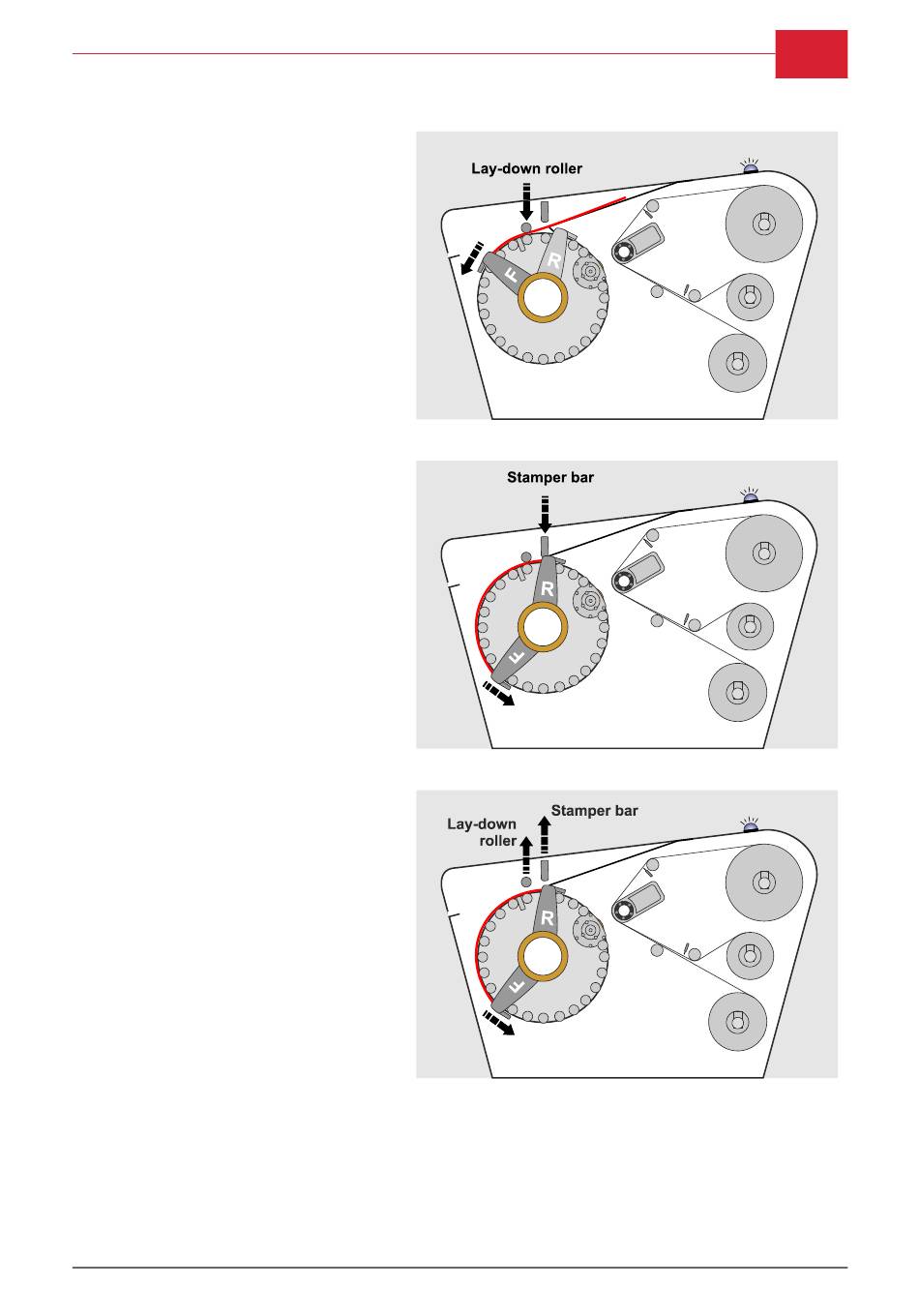

After about two seconds, the lay-down
roller will drop onto the plate surface to
keep tension on the plate as it is pulled
around the static drum.
The rear edge of the plate enters the
processor.
The rear edge of the plate stops over
the rear clamp bar.
The stamper bar will press the rear
edge of the plate into the rear clamp
arm pin bar.
The stamper bar will lift away from the
plate surface.
The lay-down roller lifts away from the
plate surface.
