Connection Procedures - GRAPHTEC midi LOGGER GLT400 Quick Manual Start

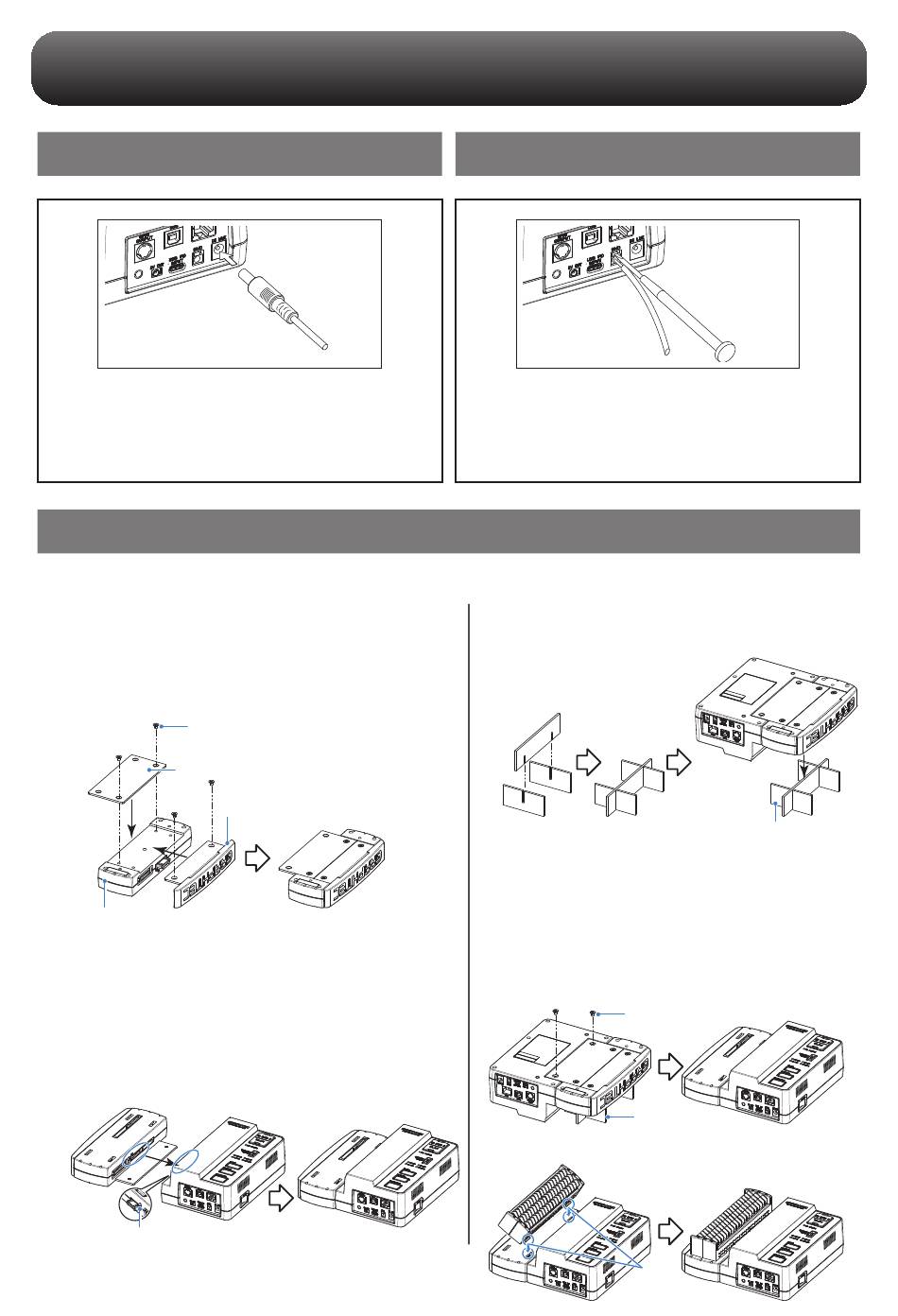

Connection Procedures

Connect the AC adapter
Connect the DC output of the AC adapter to
the connector marked "DC LINE" on the
GLT400.
Connect the expansion terminal base connection terminal
* For details, refer to the User's Manual (PDF).
1
. Install the connecting plate and the
cover to the connection terminal base
with the supplied screws.
* Recommended tightening torque: 14kgf/cm
Screw
Connecting plate
Connection terminal base
2
. Direct-connect the terminal base to the
GLT400. It is recommended to
direct-connect them on a flat desk.
Then, connect the connector cover to
the expansion terminal base.
* Pay attention to the protrusions
when direct-connecting.
Cover
Connect the ground cable
Connect the ground cable to the GLT400
while pushing the button above the GND
terminal with a flathead screwdriver.
Connect other end of the cable to ground.
3
. Assemble the cardboard contained in
the accessory bag to make a spacer.
Spacer
4
. Turn the direct-connected GLT400
over and place it on the spacer as
shown in the figure. Tighten the
screws without rattling. (When
connecting multiple GLT400s, ensure
a height of 33.5 mm without rattling.)
5
. Insert the terminal into the terminal base.
6
Spacer
Screw
Spacer
Insert
