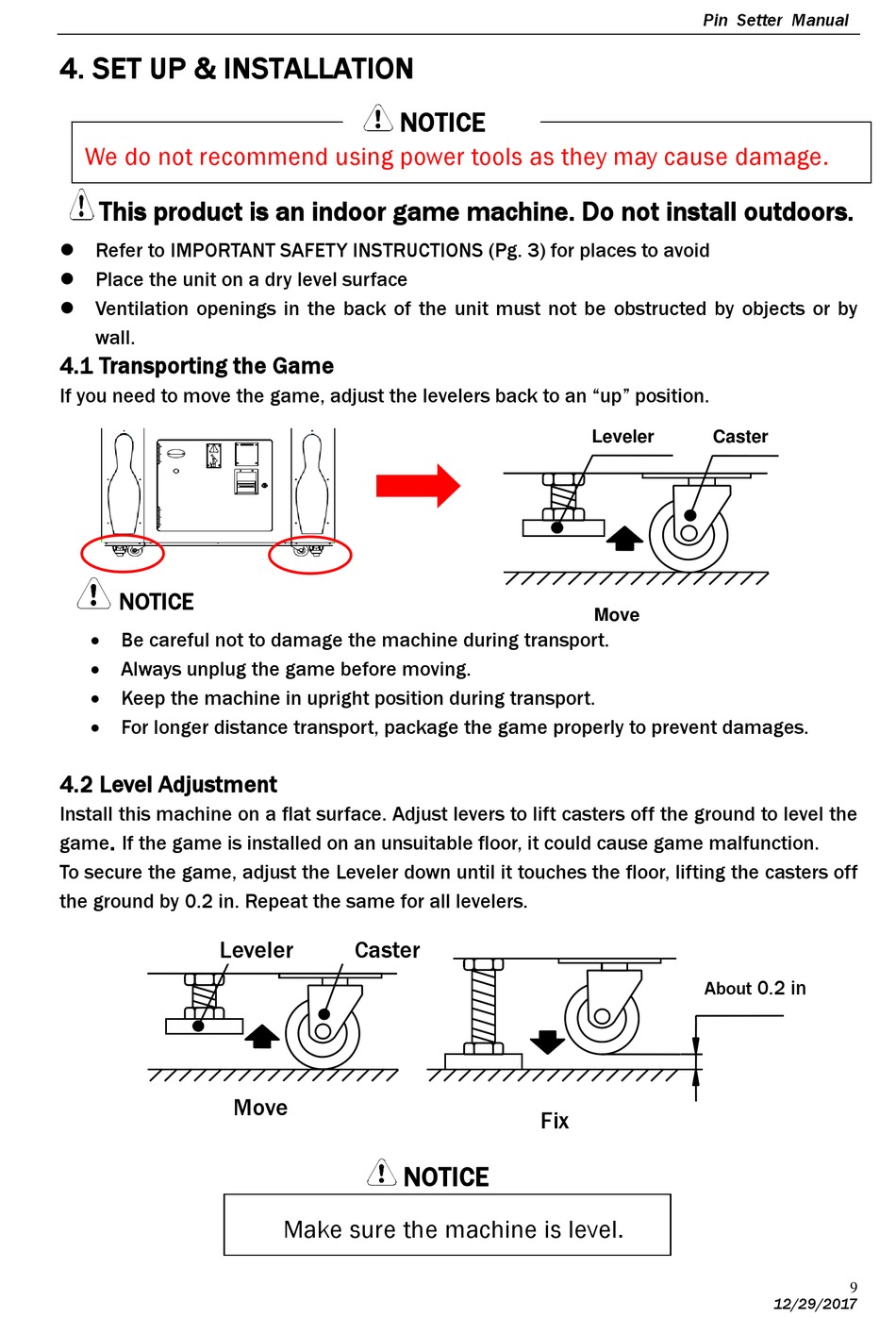

4. SET UP & INSTALLATION
We do not recommend using power tools as they may cause damage.
This product is an indoor game machine. Do not install outdoors.
 Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
 Place the unit on a dry level surface
 Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an "up" position.
NOTICE
 Be careful not to damage the machine during transport.
 Always unplug the game before moving.
 Keep the machine in upright position during transport.
 For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
.
game If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler
NOTICE
Caster
Move
Make sure the machine is level.
Fix
NOTICE
Pin Setter Manual
Leveler Caster
Move
0.2 in
