  • Page 1 IMPORTANT www.universal-space.com Operation Manual...

  • Page 2: Table Of Contents

    D-Day Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 2 1. SPECIFICATIONS ..................... 4 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................17 8. TROUBLE SHOOTINGS ..................18 9.

  • Page 3: Important Safety Instructions

    D-Day Manual Thank you for purchasing D-Day. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 D-Day Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

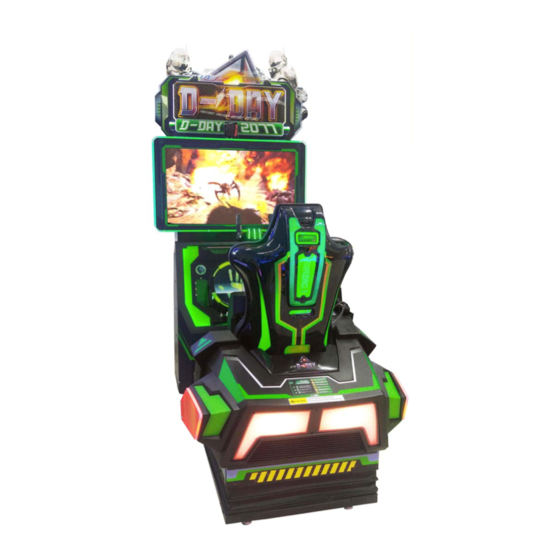

    D-Day Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V-240V 50/60Hz Min. Power consumption: 200W Max. Power consumption: 1200W Dimension: W51.1×D95.3×H100.6 in Weight：Approximately 771.6 lb Part No: D139 Model No: V-006 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 6 D-Day Manual This machine will be divided into two parts during transportation. Display part: W44.3×D38.5×H73.4 in Seat part: W39×D59.8×H55.4 in Note: Game specifications are subject to change without notice. 12/02/2017...

  • Page 7: Contents Of The Accessory Kit

    D-Day Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture D139-805-000 41440000234A Manual D139-801-000 25300171002 D139-802-000 25300172002 D139-541-000 23301000001 Power cord D139-578-000 23302000012 Network cable NOTE: Part models are subject to change without notice.

  • Page 8: Part Name

    D-Day Manual 3. PART NAME Key Components Marquee Assy. Base Station Display Coin assy. Gun assy. HTC headset 12/02/2017...

  • Page 9: Set Up & Installation

    D-Day Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 10 D-Day Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area 12/02/2017...
  • Page 11 D-Day Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Use for Phillips screwdriver Step 2 & Step 3 Allen hexagon wrenches Step 2 & Step 3 Step 1 Install base station and set the channel.
  • Page 12 D-Day Manual 12/02/2017...
  • Page 13 D-Day Manual Set the channel Signal light Channel button Step 2 Marquee installation Install marquee fix plates on the Marquee decal 1 with Hexagon flange nuts. Part No. Code No. Name Picture D139-702-000 20541706A002 Marquee decal 1 D139-310-000 20241706045 Marquee fix plate 1...
  • Page 14 D-Day Manual Install marquee fix plates (with marquee decal) on the cabinet. Part No. Code No. Name Picture Cross recessed pan D139-124-000 20101020039 head screw set Install Marquee decal 2 on the Marquee fix plate 3 in red square area.
  • Page 15 D-Day Manual Install Marquee fix plate 3 (with marquee decal) on the cabinet. Part No. Code No. Name Picture Cross recessed pan D139-124-000 20101020039 head screw set Install Marquee POP decal on the cabinet. Part No. Code No. Name Picture...
  • Page 16 D-Day Manual Step 3 Cabinet Installation Place two parts as picture shown and connect all the plugs in red circle area. Connect the display part and seat part with Cross recessed hexagon screw kits in red circle area. Part No.
  • Page 17 D-Day Manual Install the Wiring cover with Cross recessed pan head screws in red rectangle area. Part No. Code No. Name Picture D139-308-000 20241706001 Wiring cover Cross recessed pan D139-169-000 20101010140 head screw 12/02/2017...

  • Page 18: How To Play

    D-Day Manual 5. HOW TO PLAY 5.1 Insert coin(s) to start the game. 5.2 Put on the headset and fasten the seat belt. 5.2 Press the trigger to shoot. 12/02/2017...

  • Page 19: Trouble Shootings

    D-Day Manual 6. TROUBLESHOOTING 6.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 20 D-Day Manual 12/02/2017...
  • Page 21 D-Day Manual 12/02/2017...
  • Page 22 D-Day Manual 12/02/2017...
  • Page 23 D-Day Manual For base station: 12/02/2017...

  • Page 24: Maintenance & Inspection

    D-Day Manual 7. MAINTENANCE & INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.

  • Page 25: Overall Construction

    D-Day Manual 8. OVERALL CONSTRUCTION 8.1 General Assembly Part No. Code No. Name 1 D139-007-000 29941706A003 Marquee assy. 2 D139-005-000 29941706008 Display assy. 3 D139-001-000 29941706A001 Frame assy. 4 D139-308-000 20241706001 Wiring cover 5 D139-002-000 29941706005 Motion assy. 6 D139-008-000 29941706011 Gun platform assy. 1 7 D139-003-000 29941706006 Gun assy.
  • Page 26 D-Day Manual 8.2 Display Assy. Part No. Code No. Name 1 D139-207-000 20241706004A Air outlet cover 2 D139-208-000 20241706003 Front light cover 3 D139-209-000 20241706056 Speaker cover 4 D139-210-000 20241706005 Wiring metal plate 1 5 D139-221-000 20241706007 Connected plate 2 1...
  • Page 27 D-Day Manual 8.3 Motion assy. Part No. Code No. Name 1 D139-302-000 20641706019 Antiskid plate 2 D139-301-000 20241706017 Cabinet face panel 1 3 D139-299-000 20241706073 Cabinet top bracket 1 4 D139-298-000 20241706063 Gasbag bracket D139-297-000 20241706074 Cabinet bracket D139-201-000 26000010000...
  • Page 28 D-Day Manual 8.4 Gun assy. Part No. Code No. Name 1 D139-232-000 20641706012 Clear gun cover D139-229-000 20241706029 Gun tube BR fix shaft D139-230-000 20241706032 Gun tube fix BR sleeve 3 D139-231-000 20241706082 Gun tube top flange D139-233-000 20641706013 Gun tube light fix tube...
  • Page 29 D-Day Manual Part No. Code No. Name 1 D139-257-000 20641123002 Damping sleeve 2 2 2 D139-258-000 20241123015 Fix shaft 3 D139-262-000 20241706026 Gun bed plate D139-259-000 20241706080 Slide block D139-260-000 20241706040 Sliding channel 2 1 D139-261-000 20241706039 Sliding channel 1 1...
  • Page 30 D-Day Manual Part No. Code No. Name 1 D139-243-000 20241706023 Linking block 2 D139-269-000 20241706076 Rotary gear 2 3 D139-268-000 20241706024 Eccentric shaft 4 D139-244-000 20241123004 R slide plate 5 D139-248-000 20241123003 R slide plate 6 D139-239-000 20241706027 Slide rail connected block 1...
  • Page 31 D-Day Manual 8.5 Seat Assy. Part No. Code No. Name D139-274-000 20641706017 Seat D139-280-000 20641706011 Plastic screws assy. 6 2 D139-276-000 20241706065 Light bar bracket 3 D139-275-000 20241706066 Speaker cover 4 D139-278-000 20241706068 Seat fixing metal 5 D139-281-000 20241706067 Motor fix plate...
  • Page 32 D-Day Manual 8.7 Seat back assy. Part No. Code No. Name 1 D139-296-000 20241706069 Box metal plate 1 2 D139-294-000 20241706044 Back cover 3 D139-295-000 20641706001 Logo plate D139-292-000 20641706009 L light bracket 1 D139-537-000 20841105004 Brass post D139-293-000 20641706010 R light bracket 1...
  • Page 33 D-Day Manual 8.9 Gun platform Part No. Code No. Name 1 D139-284-000 20241706051 Gun platform block 1 1 2 D139-283-000 20241706052 Gun platform block 2 1 3 D139-290-000 20241706055 Button bracket 4 D139-289-000 20241706050 Gun platform cover 2 1 5 D139-288-000 20241706049 Gun platform cover 1 1...
  • Page 34 D-Day Manual 8.10 Decals Part No. Code No. Name 1 D139-702-000 20541706A002 Marquee decal 1 2 D139-720-000 20541706006 Marquee POP decal 1 3 D139-718-000 20541706004 Front light plate decal 1 4 D139-705-000 20541706A005 Cabinet decal 5 D139-727-000 20541706016 Gun platform decal...
  • Page 35 D-Day Manual Part No. Code No. Name 1 D139-712-000 20541706A012 Meter label 2 D139-706-000 20541706A006 Warning label 3 D139-716-000 20541706A017 Air valve SW label 4 D139-724-000 20541706011 Seat side decal 5 D139-731-000 25600000037 Voltage label L 6 D139-729-000 25600000036 Voltage label S...
  • Page 36 D-Day Manual Part No. Code No. Name 1 D139-713-000 20541706A014 220V nameplate 1 2 D139-714-000 20541706A015 220V nameplate 1 3 D139-715-000 20541706A016 110V nameplate 1 4 D139-716-000 20541706A017 Air valve SW label 1 12/02/2017...
  • Page 37 D-Day Manual 8.11 Electrical components Part No. Code No. Name 1 D139-582-000 20741611028 HTC Vive base station D139-551-000 21201043001 43" display D139-563-000 23307000015 DVI-DVI video cable 3 D139-552-000 22801000001 Base speaker 4 D139-576-000 22002015009 RX5050G light strip--green 3.3 5 D139-575-000 22002013003 3528 LED light strip--white 2...
  • Page 38 D-Day Manual Part No. Code No. Name 1 D139-580-000 22301000001 Coin mech. 2 D139-547-000 23000000005 Meter D139-545-000 22403000001 POT knob D139-559-000 29791400001 POT connected plate 2 D139-542-000 22402010002 Red button D139-543-000 22402030002 Green button D139-544-000 22402050001 Black button Part No.
  • Page 39 D-Day Manual Part No. Code No. Name D139-579-000 21100000043 PC Assy. D142-590-000 21107070004 CPU fan D142-591-000 23303030002 Serial line D142-592-000 21107270001 Cabinet D142-593-000 21107060005 Hard disk D142-594-000 21107090012 Memory D142-595-000 21107070009 Cabinet fan D142-596-000 21107030088 Video card D142-597-000 21107220009 Main board...
  • Page 40 D-Day Manual Part No. Code No. Name D139-548-000 22702010025 D139-546-000 22702000010 Fan net 2 D139-507-000 40611010008 Air compressor 3 D139-555-000 22601000086 Electric leakage SW 1 4 D139-568-000 21606000010 Socket Part No. Code No. Name 1 D139-573-000 22002013006 3528 LED light strip--red 2.2...

  • Page 41: Wiring Diagram

    D-Day Manual 9. WIRING DIAGRAM 60 Q 60 Q 45 Q 10 Q 10 Q 12V adapter 12V adapte r 45 Q 12/02/2017...
  • Page 42 WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com...
