3.
X-Ref Target - Figure 1-17

Viewing GTX Transceiver Operation

After completing
configured and running. The status and test settings are displayed on the MGT/IBERT
Settings tab in the IBERT Console shown in
Note the line rate, TX differential output swing, and RX bit error count:
•
•
•
KC724 IBERT Getting Started Guide
UG931 (v1.0) October 23, 2012
In the project panel, click IBERT Console
operation.

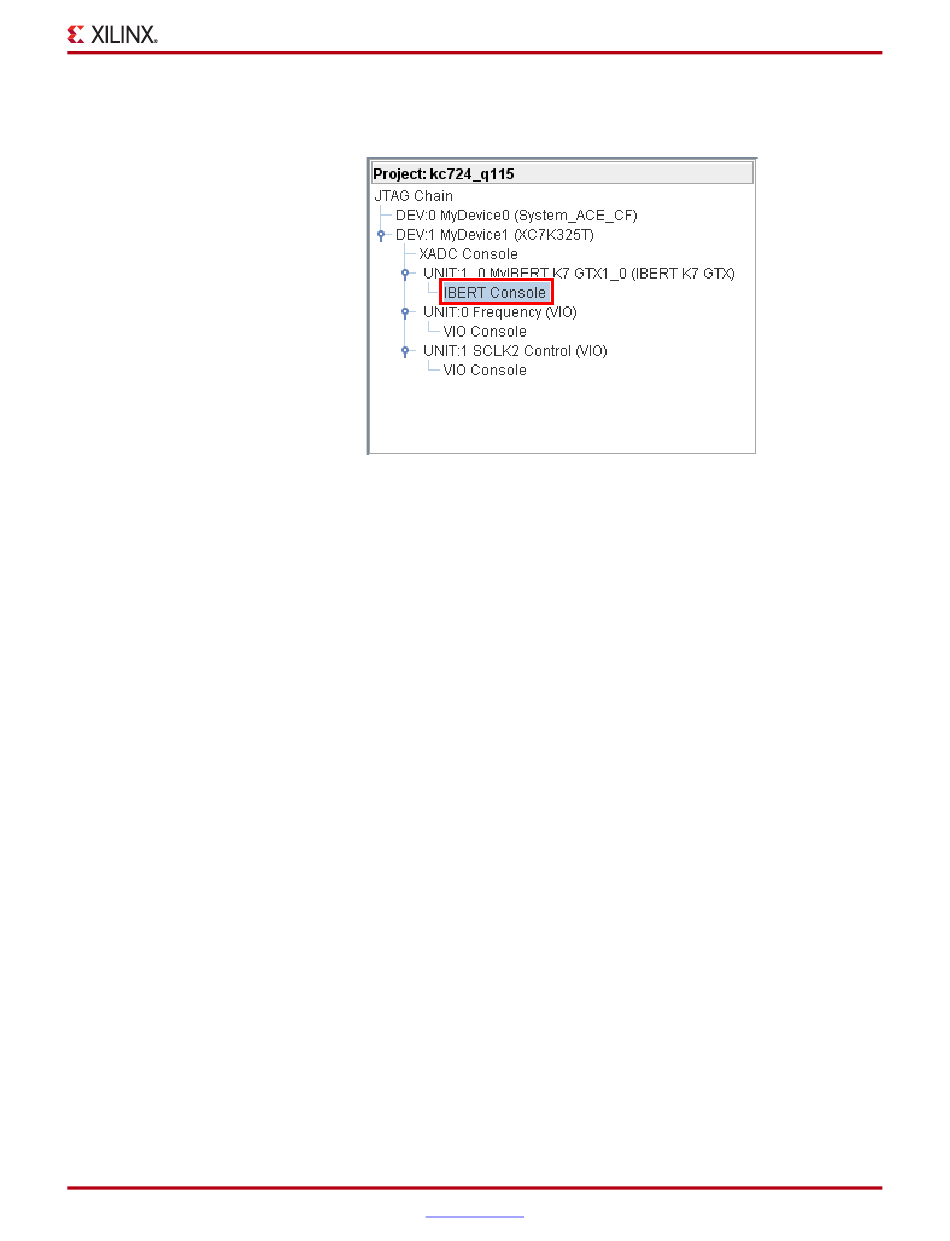

Figure 1-17: Project Panel - IBERT Console (GTX)
step 3 in Starting the SuperClock-2
The line rate for all four GTX transceivers is 12.5 Gbps (see MGT Link Status in
Figure 1-18).
The GTX transmitter differential output swing is preset to 850 mV.
Verify that there are no bit errors.
www.xilinx.com
Running the GTX IBERT Demonstration
(Figure 1-17) to view GTX transceiver
UG931_c1_17_080812
Module, the IBERT demonstration is
Figure 1-18.
