Increasing Quadro16x PSTN Capacity
Abstract:
to a Quadro16x and configure both devices so that the QuadroE1/T1
can be used as a PSTN trunk extension for the Quadro16x.
Please Note:
This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of
the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.
with QuadroE1/T1
Revision
Initial
Quadro variants:
valid for
SW-version:
tested with
SW version:
Filename:
Document2
Version:
Template:
SupportTemplate.dot
Last saved:
4/26/2006 3:51:00 PM
This document describes how to connect a QuadroE1/T1
Revised By
Date
AskanazK, AshotS
LianaB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quadro16x and is the answer not in the manual?

Questions and answers

Related Manuals for Epygi Quadro16x

Summary of Contents for Epygi Quadro16x

  • Page 1 PSTN trunk extension for the Quadro16x. Please Note: This document contains confidential and proprietary information owned by Epygi Technologies Ltd. Any copying, use or disclosure of the document or the information contained herein without the written permission of Epygi Technologies Ltd. is strictly prohibited.

  • Page 2: Table Of Contents

    LAN settings configuration of QuadroE1/T1 ......7 Connecting QuadroE1/T1 to Quadro16x......9 Call Routing Configuration ..........10 Routing PSTN calls from Quadro16x to QuadroE1/T1 ....10 Routing calls from QuadroE1/T1 to PSTN ........ 13 6.2.1 Routing emergency calls from QuadroE1/T1 to PSTN ..13 6.2.2...

  • Page 3: Introduction

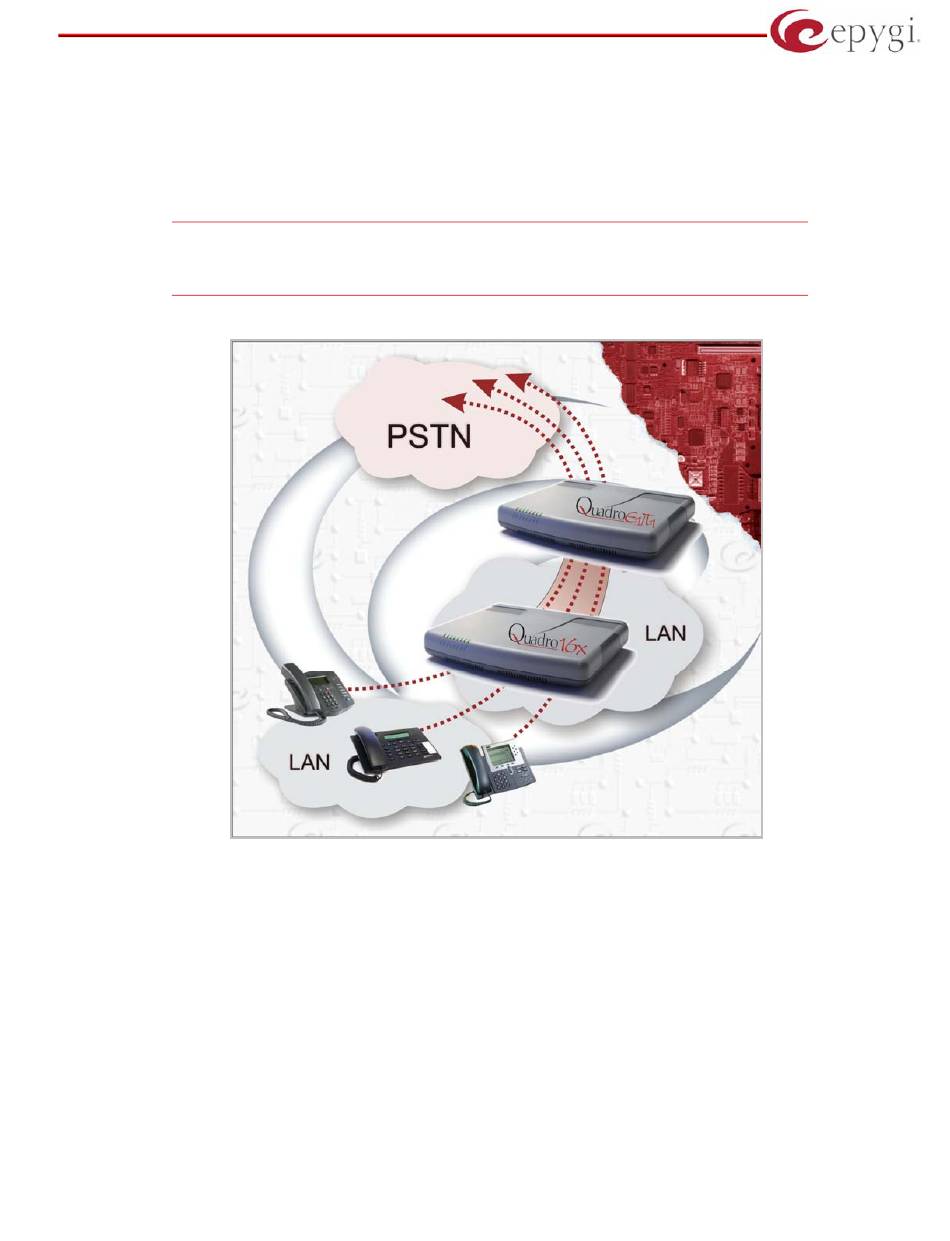

    This document describes how to connect a QuadroE1/T1 to a Quadro16x and configure both devices so that the QuadroE1/T1 can be used as a PSTN trunk extension for the Quadro16x. This will allow the users of the Quadro16x to have up to 30 emulated PSTN lines.

  • Page 4: Preparations

    LAN interface of the QuadroE1/T1 (see 4.1.2). Remove the default PSTN routing rules from the routing table of the Quadro16x (see 4.1.3). This is required if the FXO ports on the Quadro16x are not connected to PSTN to decrease call setup time.

  • Page 5: Obtain An Ip Address

    ) must be assigned to the LAN interface of the QuadroE1/T1. Note Figure 1 that this IP address must not be within the DHCP IP address range of the Quadro16x to ensure no IP address conflict occurs when adding new IP phones to the LAN of the Quadro16x.

  • Page 6: Remove Default Pstn Routing Rules

    PSTN, i.e. all outgoing PSTN calls should flow through the E1/T1 trunk of the QuadroE1/T1. If this is the case it is recommended either to disable FXO lines on the Quadro16x or remove default PSTN routing rules from its routing table. Otherwise, the call setup for outgoing PSTN calls may take longer time.

  • Page 7: Preconfiguration Of Quadroe1/T1

    Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 4.2 Preconfiguration of QuadroE1/T1 Disable the DHCP server functionality on the QuadroE1/T1 and configure its LAN settings. These can be done with System Configuration Wizard (see 4.2.1). 4.2.1 LAN settings configuration of QuadroE1/T1 Please note: It is assumed that the QuadroE1/T1 is in its default configuration.
  • Page 8 Quadro16x. Click on Next twice to reach the last page of the wizard, then click on Finish to complete the wizard. The QuadroE1/T1 can now be connected to the LAN of the Quadro16x. PAGE 8 27-Apr-06...

  • Page 9: Connecting Quadroe1/T1 To Quadro16X

    Increasing Quadro16x PSTN Capacity with QuadroE1/T1 5 Connecting QuadroE1/T1 to Quadro16x After all the preparations are fully completed, connect the QuadroE1/T1 to the LAN of the Quadro16x via straight Cat5 cable with a RJ 45 connector (see Figure 7 Please note: The QuadroE1/T1 and IP phones must be in the same subnet.

  • Page 10: Call Routing Configuration

    To allow placing PSTN calls from the Quadro16x to the PSTN via the QuadroE1/T1 • Create a routing rule on the Quadro16x to route PSTN calls to the QuadroE1/T1 (see 6.1). • Create two routing rules on the QuadroE1/T1 to route calls received from the Quadro16x to PSTN (see ).
  • Page 11 Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 On the Routing Call Type - A Entry page in the wizard (see Figure 9 • Enter into the Pattern field. • Set the Call Type to SIP. • Leave the other setti...
  • Page 12 Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 The last page of the wizard gives the summary of the rule to be created. Click on Finish to complete the wizard. The rule with the specified settings will be added to the Routing Table...

  • Page 13: Routing Calls From Quadroe1/T1 To Pstn

    6.2 Routing calls from QuadroE1/T1 to PSTN According to the rule created in 6.1, calls from the Quadro16x that match the pattern “9*” will be routed to the QuadroE1/T1. Note that two types of calls fit into this pattern: 1) emergency calls - the user dials “911”, and 2) regular PSTN calls - the user dials “9+a PSTN number”.
  • Page 14 Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 On the Routing Call Type - Add Entry page in the wizard (see Figure 13 • Enter into the Pattern field. • Set the Call Type setting to E1/T1. • Leave the other settings to their default values.

  • Page 15: Routing Regular Pstn Calls From Quadroe1/T1 To Pstn

    Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 6.2.2 Routing regular PSTN calls from QuadroE1/T1 to PSTN This rule is created in the Local Routing table of the QuadroE1/T1. Select Call Routing from the Telephony menu. On the Call Routing page, click on the Call Routing Table link to display the Call Routing...
  • Page 16 Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 Figure 16 Call Routing Table with the new rule added, QuadroE1/T1 How this rule works: Calls incoming to the QuadroE1/T1 that match the pattern “9*” will be routed to PSTN after discarding the prefix “9” from their pattern. Note that emergency calls “911”...

  • Page 17: Routing Pstn Calls From Quadroe1/T1 To Quadro16X

    6.3 Routing PSTN calls from QuadroE1/T1 to Quadro16x The rules created in the previous paragraphs are to allow making PSTN calls from the Quadro16x to PSTN via the QuadroE1/T1. In this paragraph, a rule will be created to allow routing PSTN calls received on the QuadroE1/T1 to the Auto Attendant of the Quadro16x.
  • Page 18 Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 On the Routing Call Settings - Add Entry page in the wizard (see Figure 18 • Enter the LAN IP address of the Quadro16x into the Destination Host text field. By default it is 172.30.0.1.
  • Page 19 Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 Figure 19 Call Routing Wizard, Page 3 – Inbound Call Type, QuadroE1/T1 Figure 20 Call Routing Table with the new rule added, QuadroE1/T1 How this rule works: Calls from the PSTN received on the QuadroE1/T1 will be routed the Auto Attendant of the Quadro16x.

  • Page 20: Summary

    Epygi Technologies Increasing Quadro16x PSTN Capacity with QuadroE1/T1 7 Summary The following tables summarize the dial plan according the call routing configuration described in this document. Quadro16x Pattern NDS Prefix Call Type Destination Address Description 172.30.0.254 Path to Quadro E1/T1...
