4.5.6.10 Roll End Sensor

1. Remove the Trimmed Waste Paper Box.
2. Remove the Roll Unit. (P.130)
3. Remove the eleven screws, and remove the two sheets.
A) Silver M3x6 P-tite screw : eleven pieces
4. Remove the two screws, and remove the grounding wire and Roll End Sensor.
B) Silver M3x6 S-tite screw : one piece
C) Silver M3x6 P-tite screw : one piece
A
A
Sheet
A
A
C
B
Grounding
Wire
Roll End Sensor

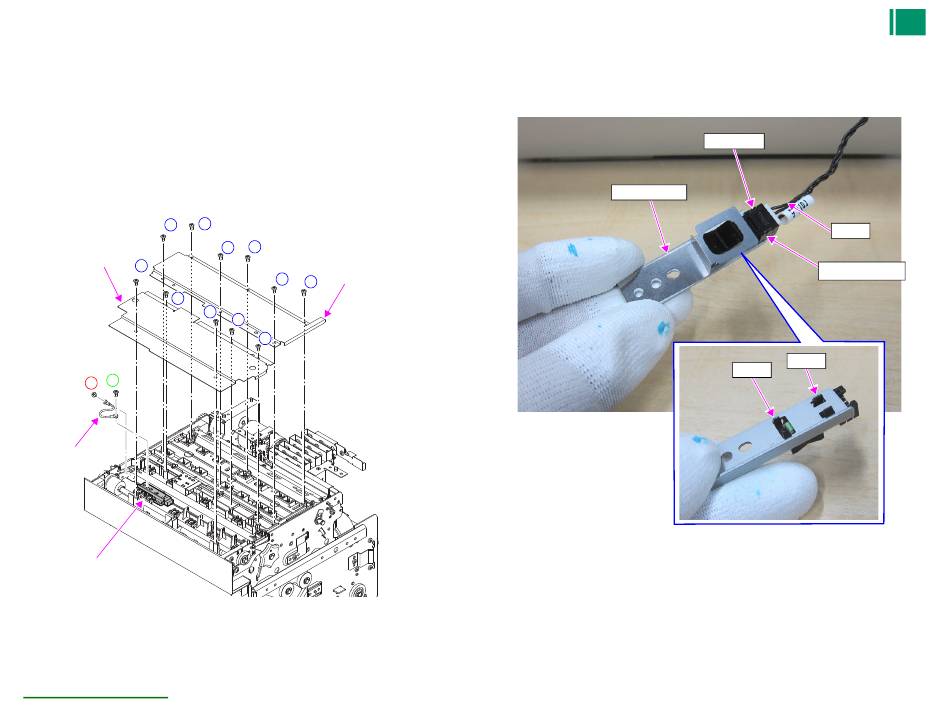

Figure 4-132. Removing the sheet
DX100 Service Manual
(P.98)
A
A
Sheet
A
A
A
A
A
4.5Disassembly and Assembly Procedure
5. Remove the grounding plate.
6. Disconnect the cable from the connector of the sensor.
7. Disengage the four hooks, and remove the sensor.
Grounding plate
Figure 4-133. Removing the Roll End Sensor
Connector
Cable
Roll End Sensor
Hook
Hook
